TECH PUBLICDatasheet (PDF)

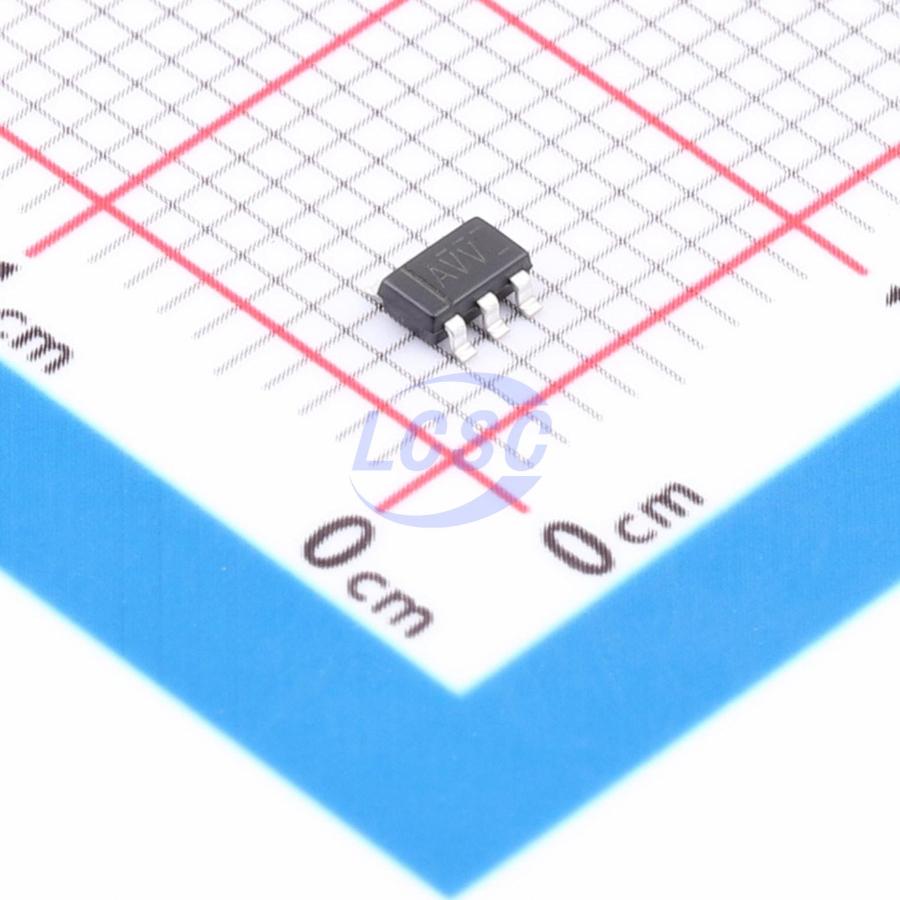

TPS3808G09DBVR-TP
Active Low 1.7V~6.5V 1 SOT-23-6L Supervisors
SOT-23-6LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS3808G09DBVR-TP
- Store part #
- C54195068
- Package / case
- SOT-23-6L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,555 in stock
#C54195068
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.21 | ₹216.05 |
| 50+ | ₹33.83 | ₹1,691.50 |
| 150+ | ₹29.81 | ₹4,471.50 |
| 500+ | ₹24.78 | ₹12,390.00 |
| 3,000+ | ₹22.54 | ₹67,620.00 |
| 6,000+ | ₹21.21 | ₹1,27,260.00 |
5 × ₹43.21
₹216.05
excl. GST
₹254.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS3808G09DBVR-TP
₹216.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2.8uA
- Voltage - Supply
- 1.7V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 840mV
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The microprocessor supervisory circuit series monitors system voltages from 0.4V to 5.0V. An open-drain reset signal is asserted when the monitored voltage falls below the preset threshold or when the manual reset (MR) pin is pulled low. After both the monitored voltage and MR return above their respective thresholds, the reset output remains low for a user-adjustable delay period.
Applications
- DSP or microcontroller applications
- Laptop/desktop computers
- FPGA/ASIC applications
- Portable/battery-powered products
- PDA/handheld battery-powered applications
Key features
- Power-on reset generator with adjustable delay time: 1.25ms to 10s
- Ultra-low quiescent current: 2.8μA typical
- High threshold accuracy: 0.5% typical
- Fixed threshold voltages for standard voltage rails from 0.9V to 5V, and adjustable voltage down to 0.4V
- Manual reset (MR) input
- Open-drain reset output
- Temperature range: -40°C to +125°C
- Package: SOT23-6L (TPS3808XXXDBVR-TP), DFN2x2-6L (TPS3808xXxDRVR-TP)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPNCP308SN090T1G#C54195065TECH PUBLIC · SOT-23-6L | TECH PUBLIC | SOT-23-6L | 3,000 | ₹43.21 · 3,000 in stock | View |
