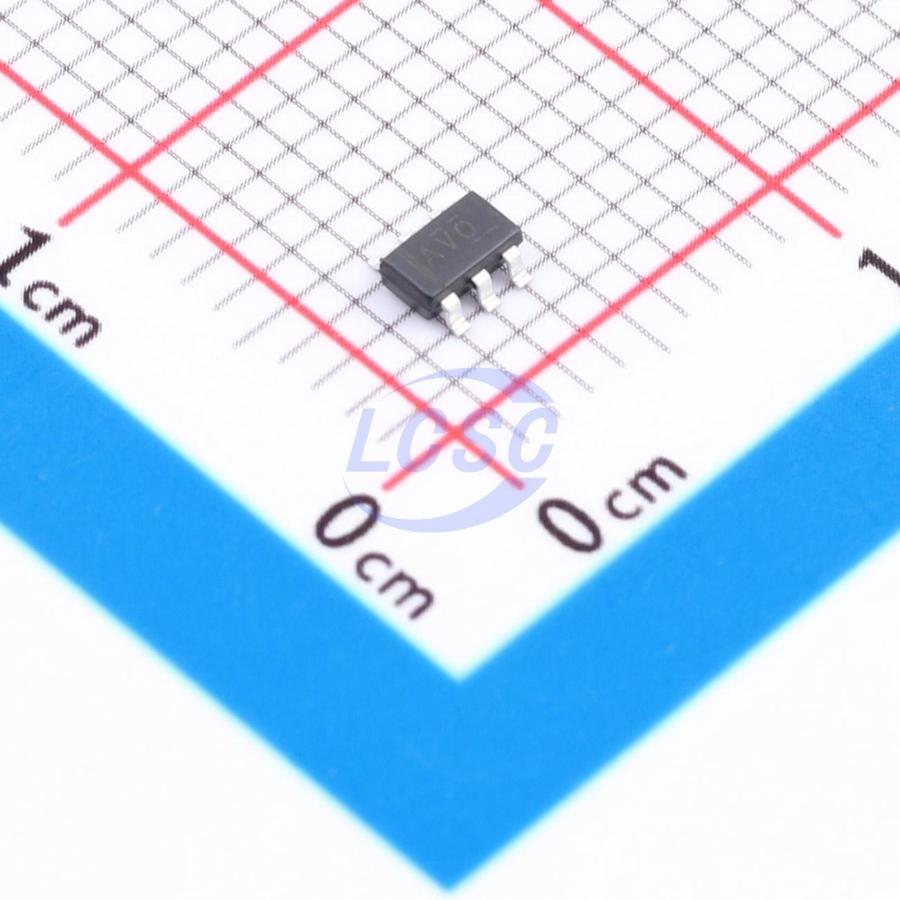

TPS3808G33DBVR-TP
Manual reset input Active Low 1.7V~6.5V 1 SOT-23-6L Supervisors
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS3808G33DBVR-TP
- Store part #
- C51886189
- Package / case
- SOT-23-6L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,405 in stock
#C51886189
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.98 | ₹164.90 |
| 50+ | ₹25.76 | ₹1,288.00 |
| 150+ | ₹22.66 | ₹3,399.00 |
| 500+ | ₹18.80 | ₹9,400.00 |
| 3,000+ | ₹17.08 | ₹51,240.00 |
| 6,000+ | ₹16.05 | ₹96,300.00 |
5 × ₹32.98
₹164.90
excl. GST
₹194.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS3808G33DBVR-TP
₹164.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 2.8uA
- Voltage - Supply
- 1.7V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.07V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This series of microprocessor supervisory circuits monitors system voltages from 0.4V to 5.0V, asserting an open-drain reset signal when the sense pin voltage falls below a preset threshold or the manual reset pin is pulled to a logic low level. After both the sense voltage and manual reset signal recover above their respective thresholds, the reset output remains low for a user-adjustable delay period.
Applications
- DSP or microcontroller applications
- Laptop/desktop computers
- FPGA/ASIC applications
- Portable/battery-powered products
- PDA/handheld products
Key features
- Power-on reset generator with adjustable delay time: 1.25ms to 10s
- Ultra-low quiescent current: 2.8μA typical
- High threshold accuracy: 0.5% typical
- Fixed threshold voltages for standard voltage rails from 0.9V to 5V, with adjustable voltage option down to 0.4V
- Manual reset input
- Open-drain reset output
- Operating temperature range: -40℃ to 125℃
- Package: SOT23-6L (TPS3808XXXDBVR-TP), DFN2x2-6L (TPS3808xXxDRVR-TP)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX3808G33S6#C51886188TECH PUBLIC · SOT-23-6L | TECH PUBLIC | SOT-23-6L | 2,975 | ₹27.54 · 2,975 in stock | View |
 | TPNCP308SN330T1G#C51939662TECH PUBLIC · SOT-23-6L | TECH PUBLIC | SOT-23-6L | 480 | ₹32.89 · 480 in stock | View |
