TECH PUBLICDatasheet (PDF)

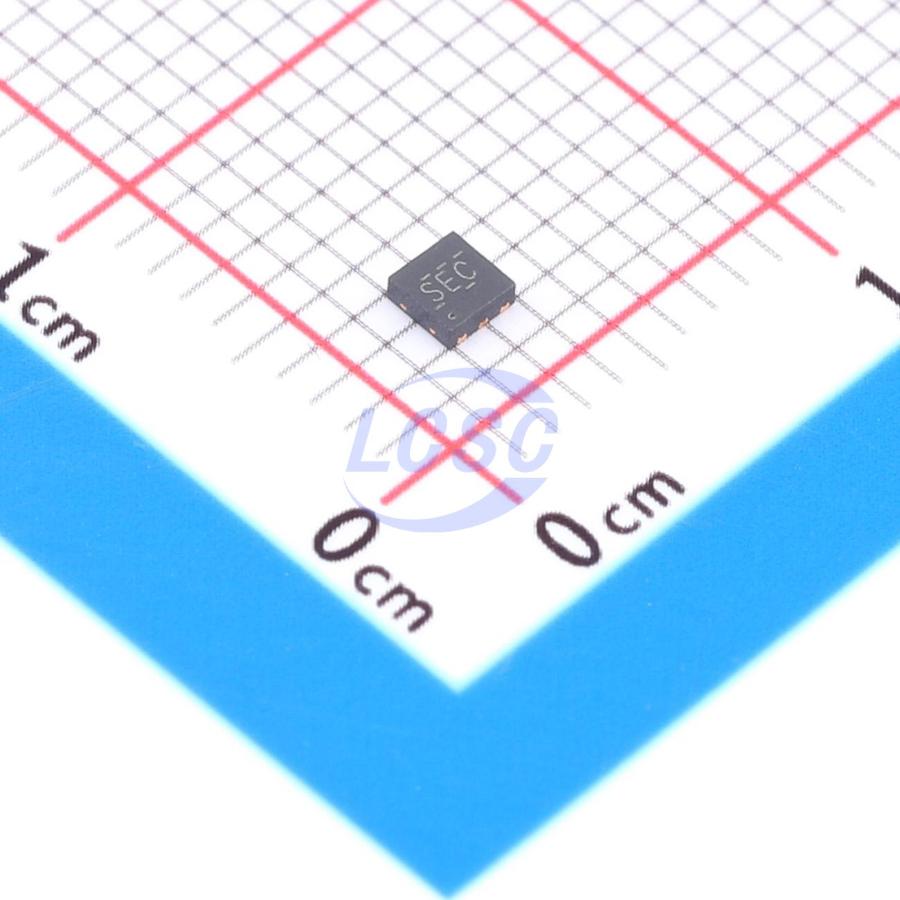

TPS3808G33DRVR-TP
Manual reset input Active Low 1.7V~6.5V 1 DFN-6L(2x2) Supervisors RoHS
DFN-6L(2x2)ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS3808G33DRVR-TP
- Store part #
- C51939667
- Package / case
- DFN-6L(2x2)
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,365 in stock
#C51939667
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.24 | ₹216.20 |
| 50+ | ₹33.72 | ₹1,686.00 |
| 150+ | ₹29.65 | ₹4,447.50 |
| 500+ | ₹24.57 | ₹12,285.00 |
| 3,000+ | ₹22.31 | ₹66,930.00 |
| 6,000+ | ₹20.94 | ₹1,25,640.00 |
5 × ₹43.24
₹216.20
excl. GST
₹255.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS3808G33DRVR-TP
₹216.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 2.8uA
- Voltage - Supply
- 1.7V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.07V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This series of microprocessor supervisory circuits monitors system voltages from 0.4V to 5.0V, asserting an open-drain RESET signal when the SENSE voltage falls below a preset threshold or when the Manual Reset (MR) pin is driven logic low. After both the SENSE voltage and MR return above their respective thresholds, the RESET output remains low for a user-adjustable timeout period.
Applications
- DSP or microcontroller applications.
- Laptop/desktop computers.
- FPGA/ASIC applications.
- Portable/battery-powered products.
- PDA/handheld products.
Key features
- Power-on reset generator with adjustable delay time (1.25ms to 10s)
- Ultra-low quiescent current: 2.8μA typical
- High threshold accuracy: 0.5% typical
- Fixed threshold voltages for standard voltage rails from 0.9V to 5V, and adjustable voltage down to 0.4V
- Manual reset (MR) input
- Open-drain RESET output
- Operating temperature range: -40℃ to +125℃
- Packages: SOT23-6L (TPS3808xxxDBVR-TP) and DFN2x2-6L (TPS3808xxxDRV-TP)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX3808G33D6#C51939629TECH PUBLIC · DFN-6L(2x2) | TECH PUBLIC | DFN-6L(2x2) | 478 | ₹51.29 · 478 in stock | View |
 | TPNCP308MT330TBG#C51939661TECH PUBLIC · DFN-6L(2x2) | TECH PUBLIC | DFN-6L(2x2) | 485 | ₹41.28 · 485 in stock | View |
