TECH PUBLIC

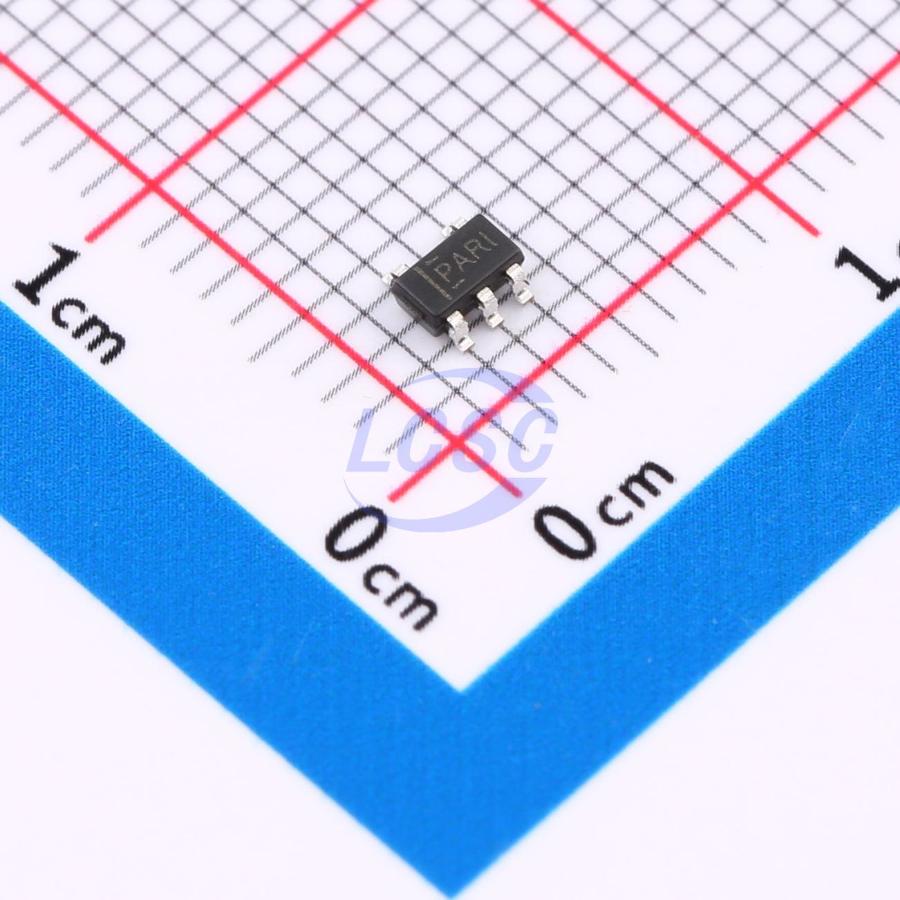

TPS3823-33DBVR-TP

Supervisor 1 Channel SOT23-5

SOT23-5ROHS CompliantActive

Voltage Supervisory Circuits with Watchdog Timer and Manual Reset Input

Manufacturer: TECH PUBLIC
Manufacturer part #: TPS3823-33DBVR-TP
Store part #: C49230935
Package / case: SOT23-5
Category: Supervisors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,575 in stock

#C49230935

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹37.88	₹189.40
50+	₹30.24	₹1,512.00
150+	₹26.98	₹4,047.00
500+	₹22.89	₹11,445.00
3,000+	₹19.74	₹59,220.00
6,000+	₹18.64	₹1,11,840.00

Quantity (min 5, multiples of 5)

5 × ₹37.88

₹189.40

excl. GST

₹223.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS3823-33DBVR-TP

₹189.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Reset Timeout: 200ms
Function: Watchdog timer;Manual reset input
Reset Active Level: Active Low
standby current: 4uA
Voltage - Supply: 1V~7V
ChipType: Voltage monitor
Threshold Voltage: 2.93V
Number of Voltages Monitored: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.039 g

Overview

This series is a cost-effective system power supply monitoring circuit designed to monitor power supplies in digital systems. The series provides circuit initialization and timing supervision functions, incorporating an independent watchdog monitoring circuit and a manual reset input. Compared to discrete ICs or discrete components, they significantly improve system reliability and accuracy.
