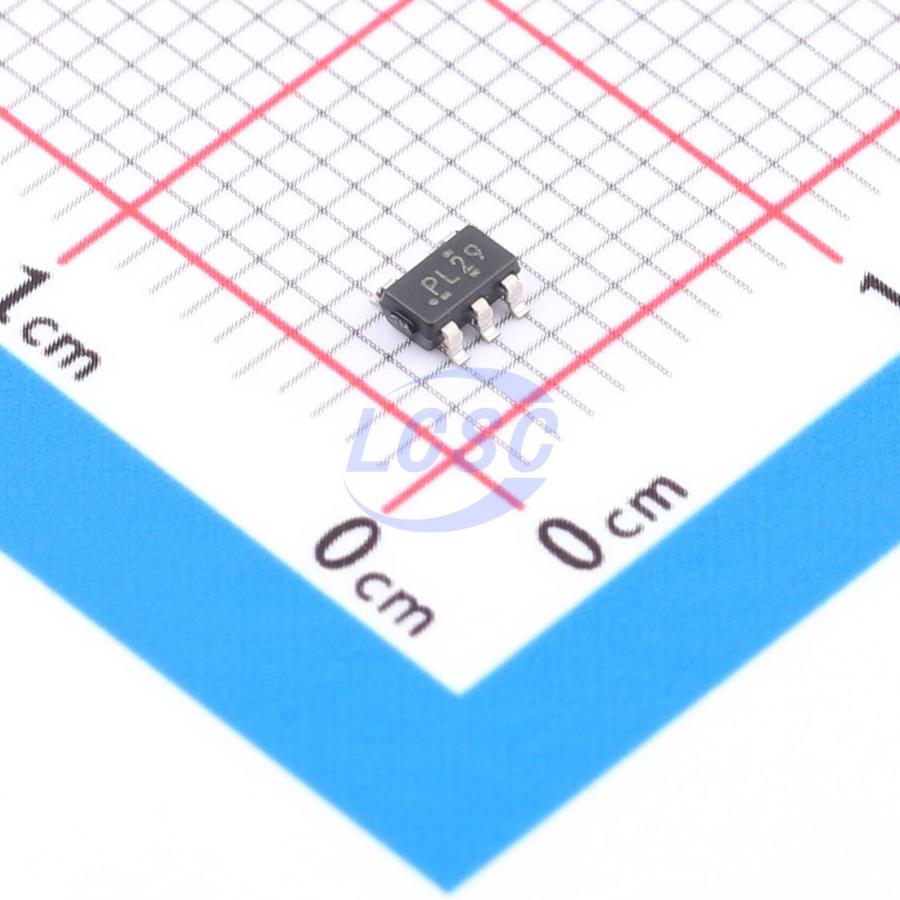

TPS3840PL29DBVR
Supervisor Push-Pull 1 Channel SOT-23-5
Nano-power high input voltage monitor with MR and programmable delay
- Manufacturer
- TI
- Manufacturer part #
- TPS3840PL29DBVR
- Store part #
- C1852117
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,162 in stock
#C1852117
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.28 | ₹78.28 |
| 10+ | ₹66.14 | ₹661.40 |
| 30+ | ₹57.68 | ₹1,730.40 |
| 100+ | ₹50.74 | ₹5,074.00 |
| 500+ | ₹48.36 | ₹24,180.00 |
| 1,000+ | ₹47.06 | ₹47,060.00 |
1 × ₹78.28
₹78.28
excl. GST
₹92.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS3840PL29DBVR
₹78.28 for 1 + GST
Specifications
- Reset Timeout
- 50us
- output type
- Push-pull
- Operating Temperature
- -40℃~+125℃
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 300nA
- Voltage - Supply
- 1.5V~10V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.9V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
Wide operating voltage range: 1.5V to 10V Nano-power supply current: 300nA (typical), 700nA (maximum) Fixed threshold voltage (VIT-) threshold range: 1.6V to 4.9V (in 0.1V steps) High accuracy: 1% (typical), 1.5% (maximum) Built-in hysteresis (VIT+): 1.6V < VIT ≤ 3.0V = 100mV (typical), 3.1V ≤ VIT < 4.9V = 200mV (typical) Fast startup delay (tSTR T): 220μs (typical), 350μs (maximum) Programmable reset delay time (tD): 50μs (no capacitor) to 6.2s (10μF) Active-low manual reset (MR(overline)) Three output topologies: - TPS3840DL: open-drain, active-low (RESET), requires pull-up resistor - TPS3840PL: push-pull, active-low (RESET) - TPS3840PH: push-pull, active-high (RESET) Wide temperature range: -40°C to +125°C Package: SOT23-5 (DBV)
Applications
- Grid infrastructure: circuit breakers, smart meters, and other monitoring and protection equipment
- Factory automation: field transmitters, PLC
- Building automation: fire safety, smoke detectors, and HVAC
- Electronic point-of-sale
- Portable battery-powered systems
Key features
- Wide operating voltage range: 1.5V to 10V
- Nano-power supply current: 300nA (typical), 700nA (maximum)
- Fixed threshold voltage (VΠ-) threshold range: 1.6V to 4.9V (in 0.1V steps), high accuracy: 1% (typical), 1.5% (maximum)
- Built-in hysteresis (VIT+): 1.6V < VIT ≤ 3.0V = 100mV (typical), 3.1V ≤ VIT < 4.9V = 200mV (typical)
- Fast startup delay (tSTR T): 220μs (typical), 350μs (maximum)
- Programmable reset delay time (tD): 50μs (no capacitor) to 6.2s (10μF)
- Active-low manual reset (MR(overline))
- Three output topologies: TPS3840DL open-drain, active-low (RESET), requires pull-up resistor; TPS3840PL push-pull, active-low (RESET); TPS3840PH push-pull, active-high (RESET)
- Wide temperature range: -40°C to +125°C
- Package: SOT23-5 (DBV)
- Built-in glitch suppression protection and built-in hysteresis for MR(overline) and VDD
- Low open-drain output leakage current (ILKG(OD))
