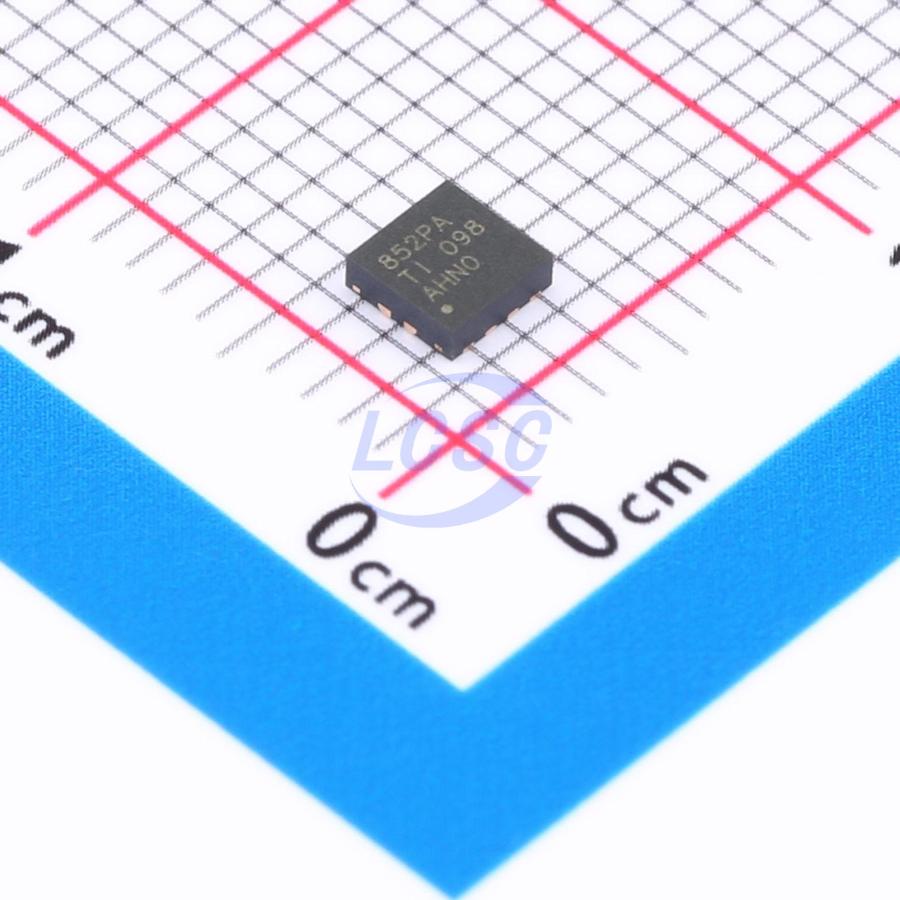

TPS3852H33DRBR

TPS3852 is a high-precision voltage monitor with an integrated window watchdog timer. It includes a high-precision undervoltage detector with 0.8% undervoltage threshold (V_ITN) accuracy over the rated temperature range (-40°C to +125°C). It also features high-precision hysteresis, making it ideal for tight-tolerance systems. The monitor RESET delay incorporates a high-precision delay timer with 15% accuracy. A programmable window watchdog timer makes it suitable for a wide range of applications. A dedicated watchdog output (¬WDO) helps improve resolution to determine the root cause of fault conditions. The watchdog timeout can be programmed via an external capacitor or set using factory-programmed default delay settings. During development, the watchdog can be disabled to prevent unnecessary watchdog timeouts. Available in a compact 3.00mm×3.00mm, 8-pin ultra-thin small outline no-lead (VSON) package.

Applications

• Safety-critical applications
• Telematics control units
• Highly reliable industrial systems
• Patient monitoring
• Industrial control systems
• FPGA and ASIC
• Microcontrollers and DSP

Key features

• VDD input voltage range: 1.6V to 6.5V
• 0.8% voltage threshold accuracy
• Low supply current: I_DD = 10μA (typical)
• User-programmable watchdog timeout
• Factory-programmed high-accuracy watchdog and reset timers: ±15% accuracy WDT and RST delay
• Open-drain output
• Manual reset input (MR)
• High-accuracy undervoltage monitoring: supports 1.8V to 5V common-mode voltage rails, 4% and 7% thresholds, 0.5% hysteresis
• Watchdog disable function
• 3mm×3mm, 8-pin ultra-thin small outline no-lead (VSON) package
