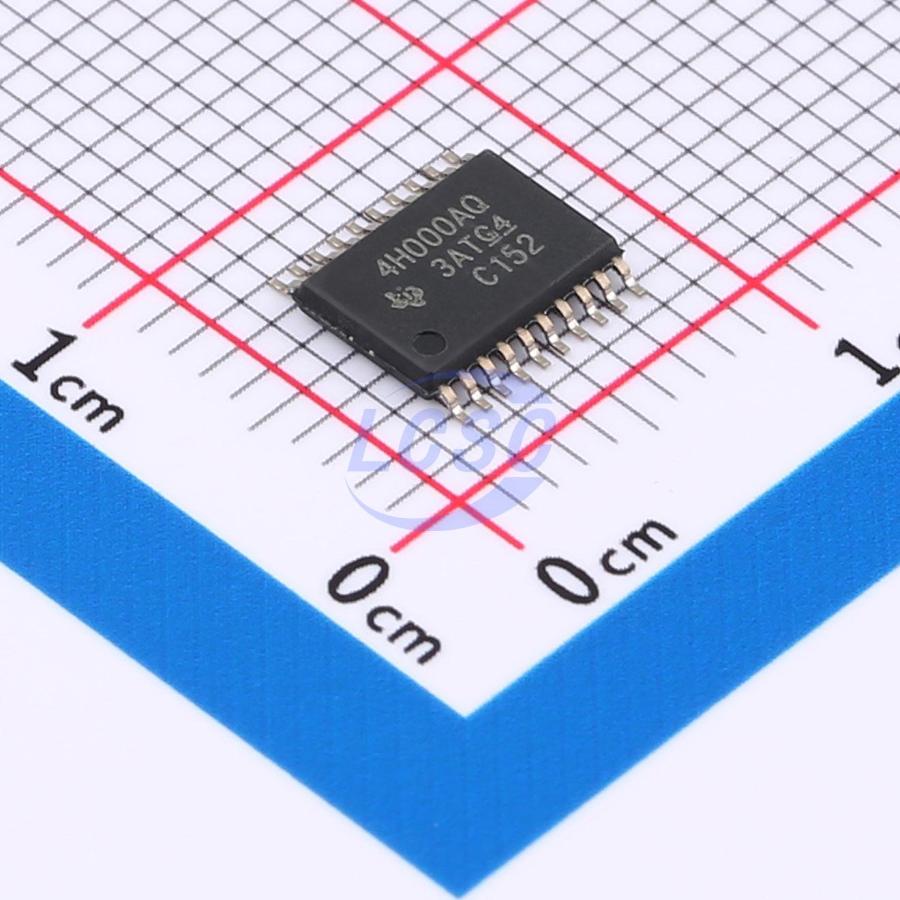

TPS4H000AQPWPRQ1
High Side Switch 4 Channel 1.6A HTSSOP-20-EP
HTSSOP-20-EPROHS3 CompliantActive
40V, 1000mΩ four-channel intelligent high-side switch
- Manufacturer
- TI
- Manufacturer part #
- TPS4H000AQPWPRQ1
- Store part #
- C2680315
- Package / case
- HTSSOP-20-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,696 in stock
#C2680315
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹233.51 | ₹233.51 |
| 10+ | ₹198.98 | ₹1,989.80 |
| 30+ | ₹177.26 | ₹5,317.80 |
| 100+ | ₹155.10 | ₹15,510.00 |
| 500+ | ₹145.11 | ₹72,555.00 |
| 1,000+ | ₹140.75 | ₹1,40,750.00 |
1 × ₹233.51
₹233.51
excl. GST
₹275.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPS4H000AQPWPRQ1
₹233.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Integrated charge pump
- number of channels
- 4
- Maximum Continuous Current
- 1.6A
- Control Input Logic
- Active High
- RDS(on)
- 1Ω
- Operating Voltage
- 3.4V~40V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.128 g
Overview
The TPS4H000-Q1 series are fully protected four-channel smart high-side switches with integrated 1000mΩ NMOS power FETs. The devices feature comprehensive diagnostic functions and high-accuracy current sensing for intelligent load control. The current limit threshold is externally adjustable to limit inrush or overload current, enhancing overall system reliability.
Applications
- Quad-channel LED driver
- Quad-channel high-side switch for sub-modules
- Quad-channel high-side relay driver
Key features
- Qualified for automotive applications with the following AEC-Q100 characteristics:
- Device temperature grade 1: ambient operating temperature range of -40°C to 125°C
- Device HBM ESD classification level H2
- Device CDM ESD classification level C4B
- Four-channel 1000mΩ smart high-side switch with extensive diagnostic features
- Version A: open-drain status output
- Version B: current sense analog output
- Wide operating voltage range: 3.4V to 40V
- Ultra-low standby current: <500nA
- High-accuracy current sensing: externally adjustable current limit via resistor, ±20% under load conditions >100mA
- Protection:
- Short-to-GND protection via (internal or external) current limiting
- Thermal shutdown with latch option and thermal regulation
- Inductive load negative voltage clamping with optimized slew rate
- Loss-of-ground and loss-of-power protection
- 20-pin thermally enhanced PWP package
- Diagnostics:
- Overcurrent and short-to-GND detection
- Open-load and short-to-battery detection
- Global fault flag for fast interrupt
