TPS54360QDDARQ1

The TPS54360-Q1 is a 60V, 3.5A step-down regulator with an integrated high-side MOSFET. Per ISO 7637, the device can withstand load dump pulses up to 65V. Current mode control provides simple external compensation and flexible component selection. Low-ripple pulse skip mode reduces no-load supply current to 146μA. When the enable pin is pulled low, shutdown supply current drops to 2μA. The undervoltage lockout is internally set at 4.3V but can be increased using an external resistor divider on the enable pin. The output voltage startup ramp is internally controlled for a controlled startup with no overshoot. The wide switching frequency range allows optimization of either efficiency or external component size. Frequency foldback and thermal shutdown protect internal and external components under overload conditions. The TPS54360-Q1 is available in an 8-pin thermally enhanced HSOIC PowerPAD package.

Applications

• Vehicle accessories: GPS, infotainment systems, ADAS, eCall
• USB dedicated charging ports and battery chargers
• Industrial automation and motor control
• 12V, 24V, and 48V power supply systems for industrial, automotive, and communications applications

Key features

• Automotive electronics applications, AEC-Q100 compliant
• Device temperature grade 1: -40°C to 125°C ambient operating temperature range
• Device HBM ESD classification level H1C
• Device CDM ESD classification level C3B
• High efficiency at light load with pulse-skipping Eco-Mode™
• 92mΩ high-side MOSFET
• 146μA quiescent operating current and 2μA shutdown current
• 100KHz to 2.5MHz adjustable switching frequency, synchronizable to external clock
• Low dropout at light load using integrated BOOT recharge FET
• Adjustable UVLO voltage and hysteresis
• 0.8V ±1% internal voltage reference

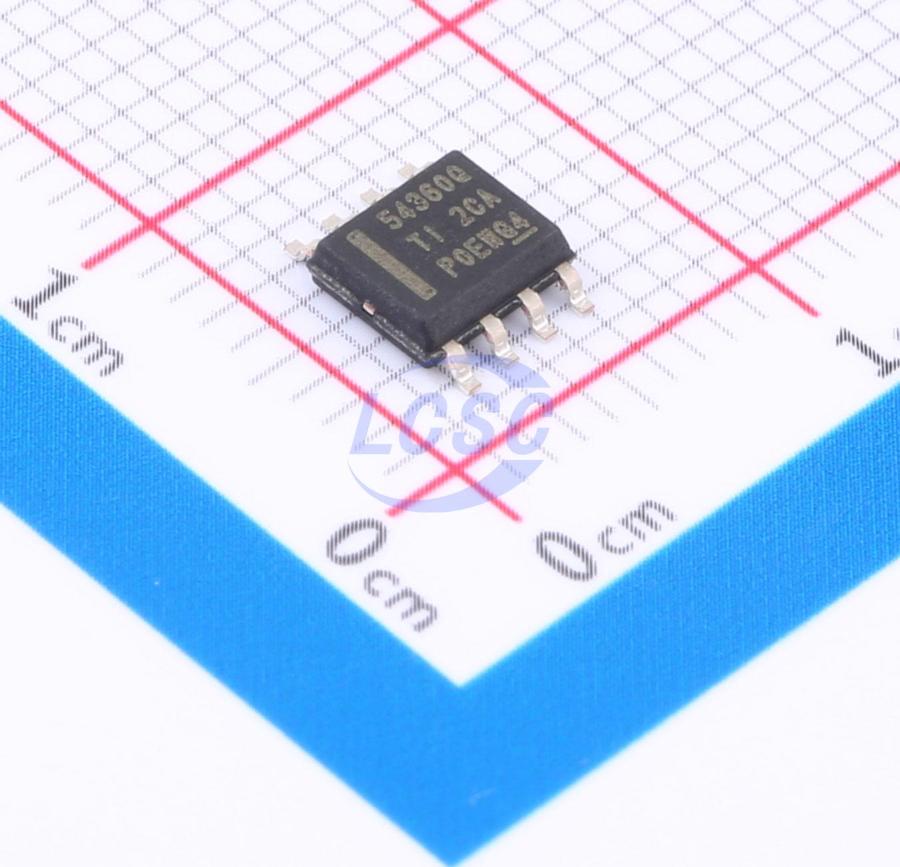

• 8-pin SO package with PowerPAD
• -40°C to 150°C TJ operating range
• Supported by WEBENCH software tools
