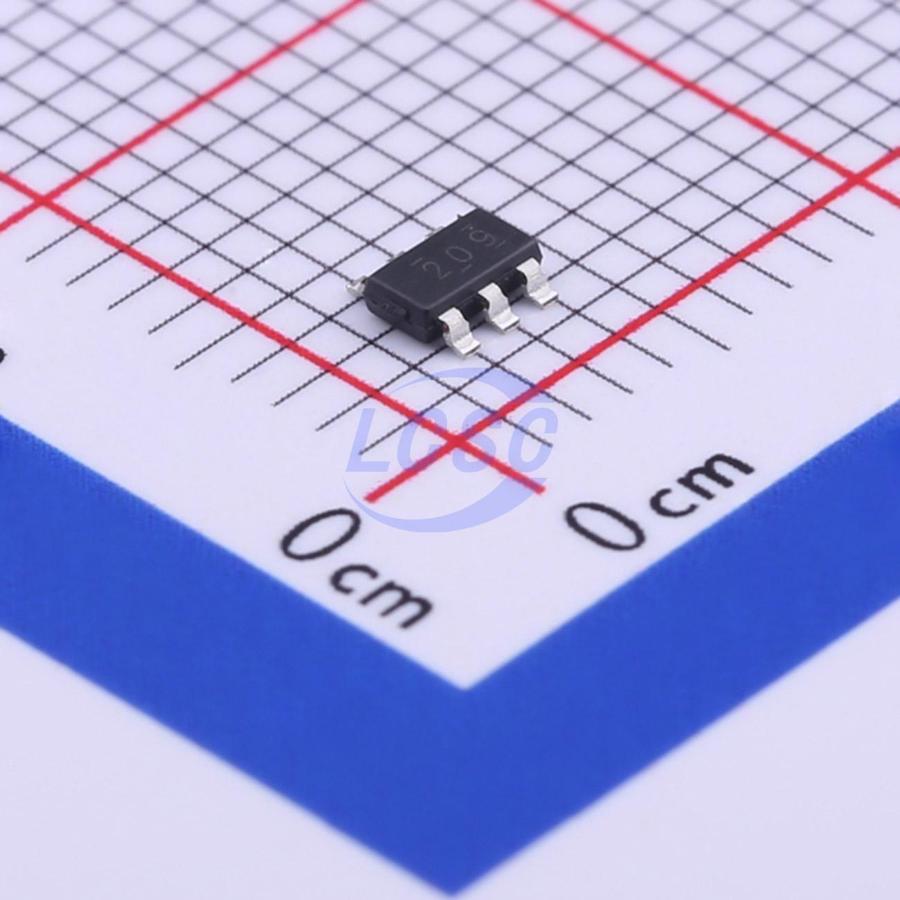

TPS562209DDCR

650kHz Step-down type Adjustable 765mV~7V 2A SOT-23-THIN-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-THIN-6ROHS3 CompliantActive

2-A Synchronous Step-Down Converter

Manufacturer: TI
Manufacturer part #: TPS562209DDCR
Store part #: C411814
Package / case: SOT-23-THIN-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,190 in stock

#C411814

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹37.27	₹186.35
50+	₹28.48	₹1,424.00
150+	₹24.73	₹3,709.50
500+	₹19.16	₹9,580.00
3,000+	₹17.07	₹51,210.00
6,000+	₹15.81	₹94,860.00

Quantity (min 5, multiples of 5)

5 × ₹37.27

₹186.35

excl. GST

₹219.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS562209DDCR

₹186.35 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 650kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~17V
Switch tube (built-in/external): Built-in
Output Voltage: 765mV~7V
Output Current: 2A
Quiescent Current: 650uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The TPS562209 and TPS563209 are simple, easy-to-use, 2-A and 3-A synchronous step-down converters in 6 pin SOT-23 package. The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. TPS562209 and TPS563209 always operate in continuous conduction mode, which reduces the output ripple voltage in light load compared to discontinous conduction mode. TPS56x209 are available in a 6-pin 1.6 × 2.9 (mm) SOT (DDC) package, and specified from -40°C to 150°C of junction temperature.

Applications

Digital TV Power Supply
High Definition Blu-ray Disc Players
Networking Home Terminal
Digital Set Top Box (STB)

Key features

TPS562209 - 2A converter with integrated 122-mΩ and 72-mΩ FETs
TPS563209 - 3A converter with integrated 68-mΩ and 39-mΩ FETs
D-CAP2™ Mode Control for Fast Transient Response
Input Voltage Range: 4.5 V to 17 V
Output Voltage Range: 0.76 V to 7 V
650 kHz Switching Frequency
Low Shutdown Current Less than 10μA
1% Feedback Voltage Accuracy (25°C)
Startup from Pre-Biased Output Voltage
Cycle By Cycle Over-current Limit
Hiccup-mode Under Voltage Protection
Non-latch OVP, UVLO and TSD Protections
Fixed Soft Start: 1.0ms

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS562209DDCT#C130068TI · SOT-23-6	TI	SOT-23-6	140	₹30.44 · 140 in stock	View
TPS562200DDCR#C49757TI · SOT-23-6	TI	SOT-23-6	14,748	₹98.31 · 14,748 in stock	View
TPS563200DDCR#C97253TI · TSOT-23-6	TI	TSOT-23-6	11,895	₹135.74 · 11,895 in stock	View
RT6264BHGJ6F#C7065278RICHTEK · TSOT-23-6	RICHTEK	TSOT-23-6	106	₹36.53 · 106 in stock	View
SK6252B#C5120319Suntek · SOT-23-6	Suntek	SOT-23-6	2,770	₹23.96 · 2,770 in stock	View
