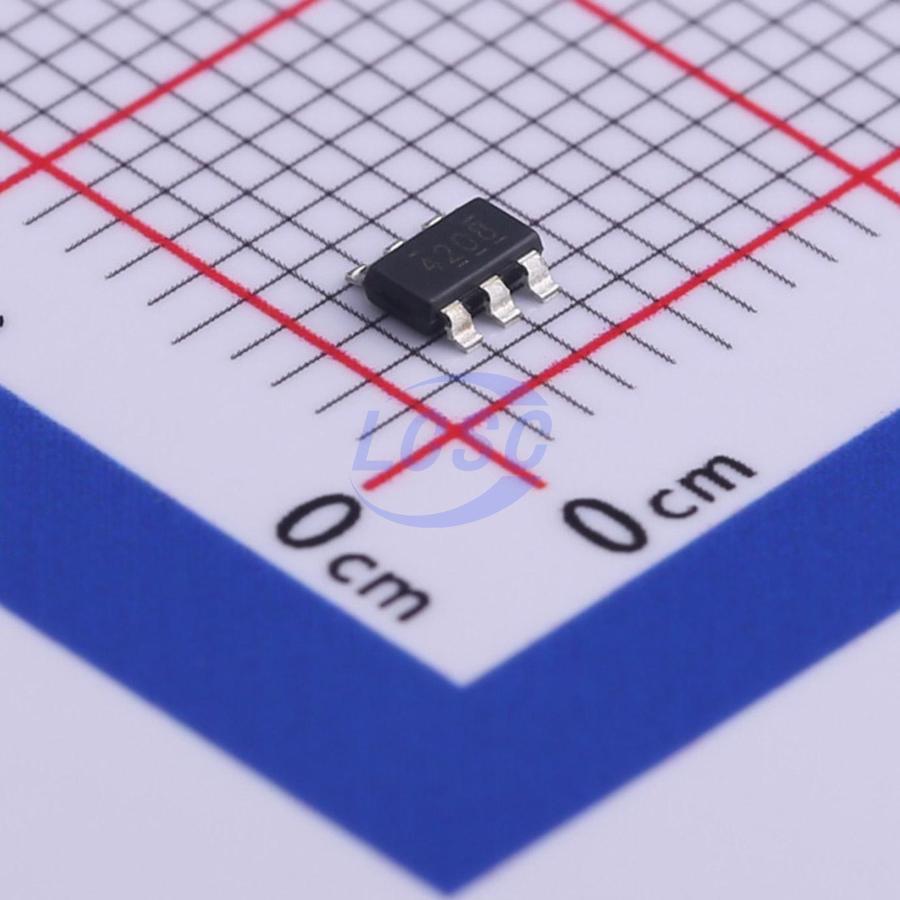

TPS564208DDCR
560kHz Step-down type Adjustable 760mV~7V 4A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS3 CompliantActive
4-A Synchronous Step-Down Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS564208DDCR
- Store part #
- C486062
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C486062
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹64.69 | ₹323.45 |
| 50+ | ₹55.38 | ₹2,769.00 |
| 150+ | ₹51.39 | ₹7,708.50 |
| 500+ | ₹30.14 | ₹15,070.00 |
| 3,000+ | ₹27.93 | ₹83,790.00 |
| 6,000+ | ₹26.59 | ₹1,59,540.00 |
5 × ₹64.69
₹323.45
excl. GST
₹381.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS564208DDCR
₹323.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 560kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 760mV~7V
- Output Current
- 4A
- Quiescent Current
- 820uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
The TPS564208 is a simple, easy-to-use, 4-A synchronous step-down converter in SOT-23 package. The device is optimized to operate with minimum external component count and also optimized to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2 mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. The TPS564208 is available in a 6-pin 1.6-mm×2.9-mm SOT (DDC) package, and specified from a -40°C to 125°C junction temperature.
Applications
- Digital TV Power Supply
- High Definition Blu-ray Disc Players
- Networking
- Home Terminal
- Digital Set Top Box (STB)
- Surveillance
Key features
- TPS564208 4-A Converter Integrated 50-mΩ and 22-mΩ FETs
- D-CAP2™ Mode Control with Fast Transient Response
- Input Voltage Range: 4.5 V to 17 V
- Output Voltage Range: 0.76 V to 7 V
- Continuous Current Mode
- 560-kHz Switching Frequency
- Low Shutdown Current Less than 10 μA
- 1.6% Feedback Voltage Accuracy (25°C)
- Startup from Pre-Biased Output Voltage
- Cycle-by-Cycle Overcurrent Limit
- Hiccup-mode Overcurrent Protection
- Non-Latch UVP and TSD Protections
- Fixed Soft Start: 1.0 ms
- Create a Custom Design Using the TPS564208 With the WEBENCH® Power Designer
