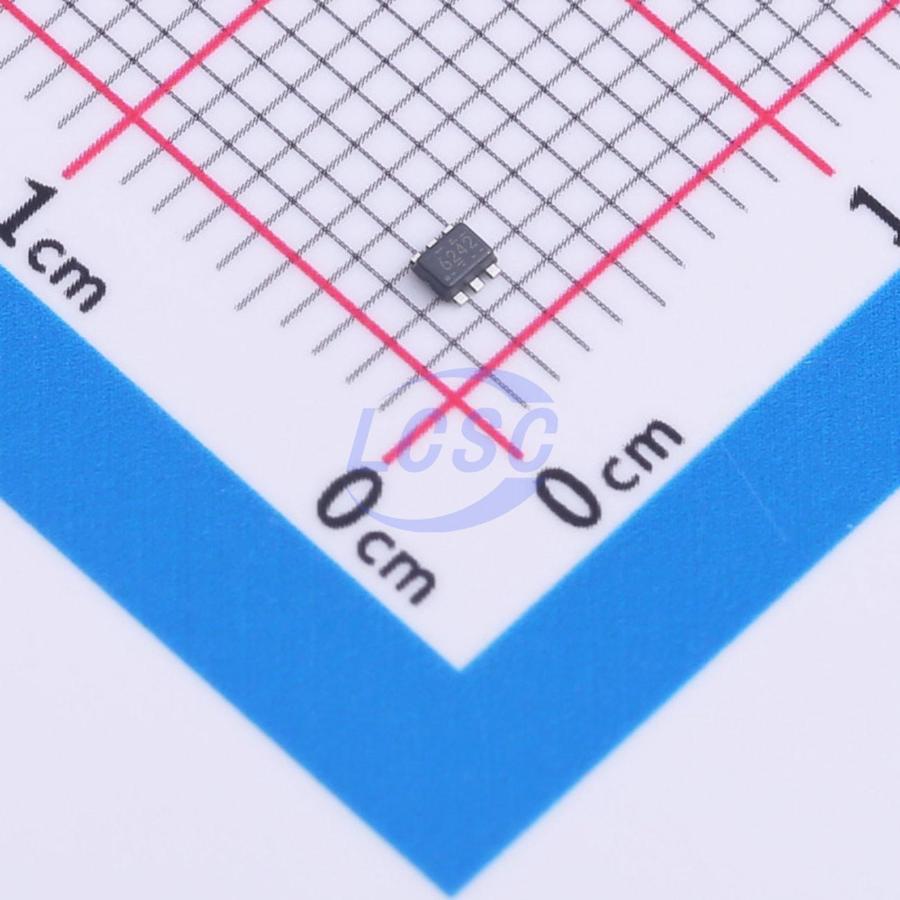

TPS566242DRLR

Buck Switching Regulator IC Adjustable 0.6V~7V 1 Output 6A SOT-563

SOT-563ROHS CompliantActive

A 6A synchronous step-down converter in SOT-563 package with an input voltage range of 3V to 16V

Manufacturer: TI
Manufacturer part #: TPS566242DRLR
Store part #: C5219277
Package / case: SOT-563
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,238 in stock

#C5219277

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹95.20	₹95.20
10+	₹76.30	₹763.00
30+	₹66.94	₹2,008.20
100+	₹57.60	₹5,760.00
500+	₹51.95	₹25,975.00
1,000+	₹48.91	₹48,910.00

Quantity (min 1)

1 × ₹95.20

₹95.20

excl. GST

₹112.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPS566242DRLR

₹95.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 600kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~7V
Output Current: 6A
Quiescent Current: 120uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.078 g

Overview

The TPS56624x is an easy-to-use, high-efficiency synchronous buck converter with high power density. The device is available in a SOT-563 package, supporting an input voltage range of 3V to 16V and continuous current up to 6A. The TPS56624x employs D-CAP3 topology to provide fast transient response and support low-ESR output capacitors without external compensation. The device features two ground pins, GND and AGND; connecting them together yields optimal thermal performance. AGND also provides excellent load and line regulation. The device supports duty cycles up to 98%. The TPS566242 operates in ECO mode to maintain high efficiency during light-load operation. The TPS566247 operates in FCCM mode to maintain a consistent frequency and low output ripple under all load conditions. The device provides comprehensive protection via OVP, OCP, UVLO, OTP, and UVP (discontinuous mode). The device is offered in a 1.6mm × 1.6mm SOT-563 package with an optimized pin layout that facilitates easy PCB layout. The rated junction temperature range is -40°C to 125°C.

Applications

LCD TVs
STBs and DVRs
Streaming players
IP network cameras
Video doorbells
Building security gateways
WLAN/Wi-Fi access points
Modems (Cable/DSL/GFAST)
Solid-state drives

Key features

3V to 16V input voltage range
0.6V to 7V output voltage range
0.6V reference voltage
±1% reference accuracy at 25°C
±1.5% reference accuracy over -40°C to 125°C temperature range
Integrated 27.7mΩ and 14.8mΩ RDSON FETs
120μA low quiescent current
600kHz switching frequency
Up to 98% duty cycle operation
Precision EN threshold voltage
1.39ms fixed soft-start time (typical)
ECO mode (TPS566242) and FCCM mode (TPS566247) at light load
Part of a complete P2P product family, including solutions for 4A, 5A, 6A and FCCM/ECO operating modes
D-CAP3 control topology supports startup with pre-biased output
Non-latching OV/OT/UVLO protection
UV-protected discontinuous mode
Cycle-by-cycle OC and NOC limiting
6-pin SOT-563 package
