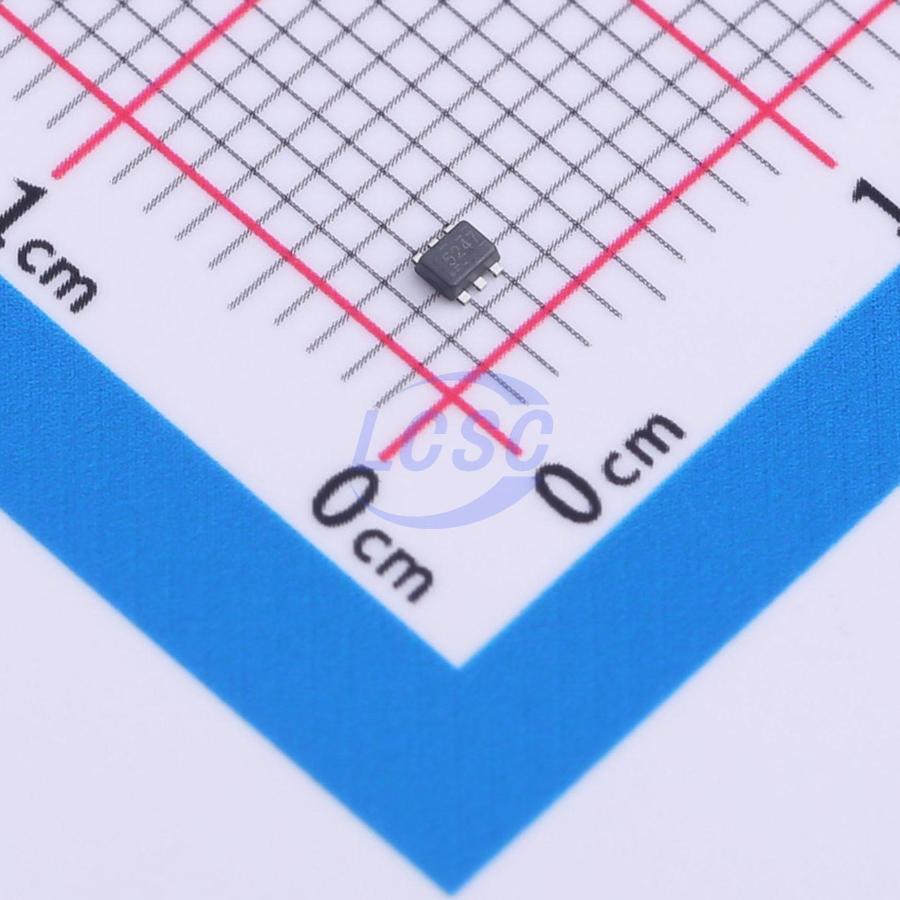

TPS565247DRLR

TPS56524x is an easy-to-use, high-efficiency synchronous buck converter with high power density. The device comes in a SOT-563 package, supports an input voltage range of 3V to 16V, and delivers up to 5A continuous current. The TPS56524x uses D-CAP3 topology to provide fast transient response and support low-ESR output capacitors without external compensation. The device features two ground pins, GND and AGND; connecting them together yields optimal thermal performance. AGND also provides excellent load and line regulation. The device supports duty cycles up to 98%. The TPS565242 operates in ECO mode to maintain high efficiency during light-load operation. The TPS565247 operates in FCCM mode to maintain a consistent switching frequency and low output ripple across all load conditions. The device provides comprehensive protection via OVP, OCP, UVLO, OTP, and UVP (pulse-skipping mode). The device is available in a 1.6mm × 1.6mm SOT-563 package with an optimized pin layout that facilitates easy PCB layout. The rated junction temperature range is -40°C to 125°C.

Applications

• LCD TVs
• STBs and DVRs
• Streaming players
• IP network cameras
• Video doorbells
• Building security gateways
• WLAN/Wi-Fi access points
• Small business routers
• Rack-mount servers

Key features

• 3V to 16V input voltage range
• 0.6V to 7V output voltage range
• 0.6V reference voltage
• ±1% reference accuracy at 25°C
• ±1.5% reference accuracy over -40°C to 125°C temperature range
• Integrated 28.2mΩ and 15.1mΩ RDSON FETs
• 120μA low quiescent current
• 600kHz switching frequency
• Up to 98% duty cycle operation
• Precision EN threshold voltage
• 1.39 ms fixed soft-start time (typical)
• ECO mode (TPS565242) and FCCM mode (TPS565247) at light load
• Part of a complete P2P product family with solutions for 4A, 5A, 6A and FCCM/ECO operating modes
• D-CAP3 control topology supports startup with pre-biased output
• Non-latching OV/OT/UVLO protection
• Discontinuous mode with UV protection
• Cycle-by-cycle OC and NOC limiting
• 6-pin SOT-563 package
