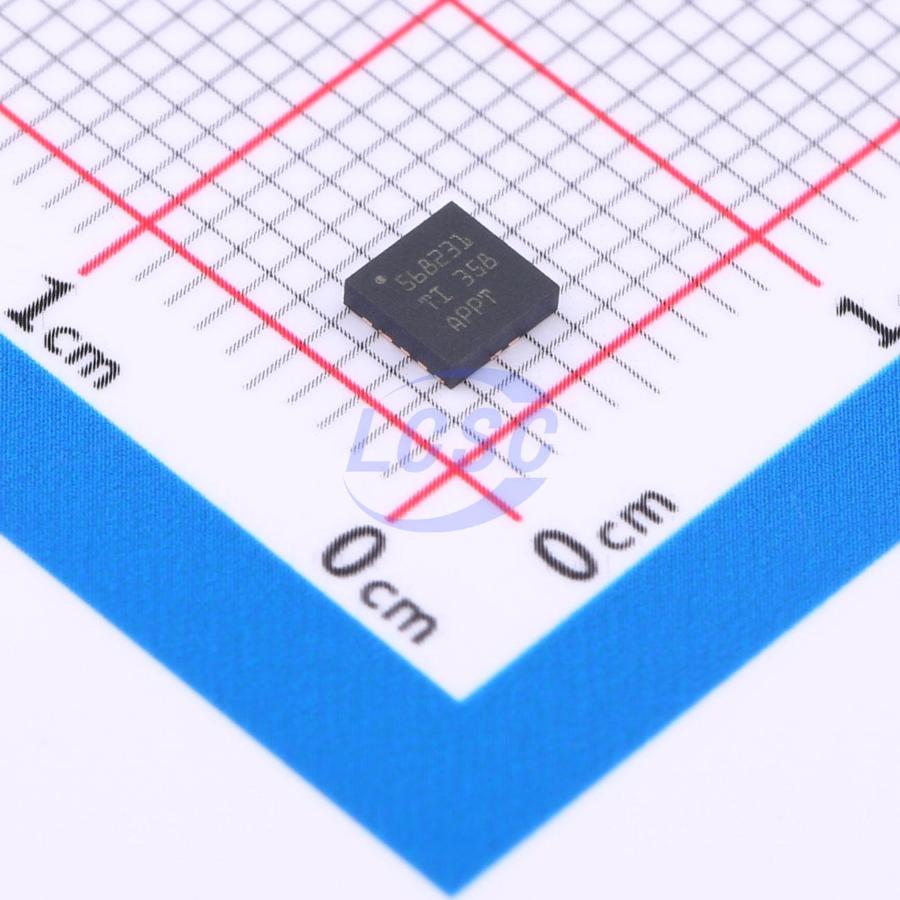

TPS568231RNNR
Step-down type Adjustable 8A 600mV~5.5V VQFN-18-HR(3.5x3.5) Voltage Regulators - DC DC Switching Regulators RoHS
VQFN-18-HR(3.5x3.5)ROHS3 CompliantActive
High-Efficiency Synchronous Buck Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS568231RNNR
- Store part #
- C6719119
- Package / case
- VQFN-18-HR(3.5x3.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C6719119
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹894.84 | ₹894.84 |
| 10+ | ₹873.93 | ₹8,739.30 |
| 30+ | ₹860.00 | ₹25,800.00 |
| 100+ | ₹846.06 | ₹84,606.00 |
1 × ₹894.84
₹894.84
excl. GST
₹1,055.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS568231RNNR
₹894.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 400kHz;800kHz;1.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Hiccup current limiting;Adjustable soft-start;Operating status indication;Light load efficient mode;Built-in LDO regulator;Cycle-by-cycle current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.8V~17V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 8A
- Output Voltage
- 600mV~5.5V
- Quiescent Current
- 146uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
The TPS568231 is a small, high-efficiency, synchronous buck converter with an adaptive ontime D-CAP3 control mode. Because external compensation is not required, the device is easy to use and requires few external components. The device is well-suited for space-constrained data center applications. The TPS568231 has competitive features including a very accurate reference voltage, fast load transient response, and no requirement for external compensation, adjustable current limit, and both Ecomode and FCCM operation modes for selection at light-load condition through configuration of MODE pin. To attain high efficiency at light load, Eco-mode can be selected. To support tight output voltage ripple requirement, FCCM can be selected. The TPS568231 operates from -40°C to 125°C junction temperature.
Applications
- Data center and enterprise computing POLs
- Wireless infrastructure
- IPCs, factory automation, PLC, test measurement
- High-end DTV
Key features
- 4.5-V to 17-V input range without external bias
- 3.8-V to 17-V input range with external bias
- Supports 8-A continuous output current
- Integrated 7.8–mΩ and 3.2–mΩ MOSFETs
- 0.6-V ±1% reference voltage across a -40°C to 125°C junction range
- 0.6-V to 5.5-V output voltage range
- 146–μA low quiescent current
- D-CAP3TM control mode for fast transient response
- Supports ceramic output capacitors
- Selectable fSW of 400 kHz, 800 kHz, and 1200 kHz
- Selectable FCCM (forced continuous conduction mode) for tight output voltage ripple
- Selectable Eco-mode (auto skip mode) for high light-load efficiency
- Optional external 5-V bias for enhanced efficiency
- Prebiased start-up capability
- Adjustable soft start with a default 1.2-ms soft-start time
- Power-good indicator to monitor output voltage
- Two adjustable current limit settings with hiccup restart
- Non-latched protections for UV, OV, OT, and UVLO
- Pin-to-pin compatible with 8-A TPS568215, and 12-A TPS56C231 and TPS56C215
- -40°C to 125°C operating junction temperature
- 3.5-mm × 3.5-mm, 18-pin HotRod QFN package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS56C231LRNNR#C6290368TI · VQFN-18-HR(3.5x3.5) | TI | VQFN-18-HR(3.5x3.5) | 22 | ₹1,117.35 · 22 in stock | View |
| TPS56C231RNNR#C6719121TI · VQFN-18-HR(3.5x3.5) | TI | VQFN-18-HR(3.5x3.5) | 71 | ₹485.95 · 71 in stock | View | |
 | TPS56C215RNNR#C473372TI · VQFN-18-HR(3.5x3.5) | TI | VQFN-18-HR(3.5x3.5) | 2,191 | ₹190.99 · 2,191 in stock | View |
 | RTQ2822WGQVF#C5456960RICHTEK · VQFN-18L_3.5x3.5 | RICHTEK | VQFN-18L_3.5x3.5 | 1,430 | ₹273.74 · 1,430 in stock | View |
| RTQ2822AGQVF#C6461174RICHTEK · VQFN-18(3.5x3.5) | RICHTEK | VQFN-18(3.5x3.5) | 40 | ₹254.65 · 40 in stock | View | |
