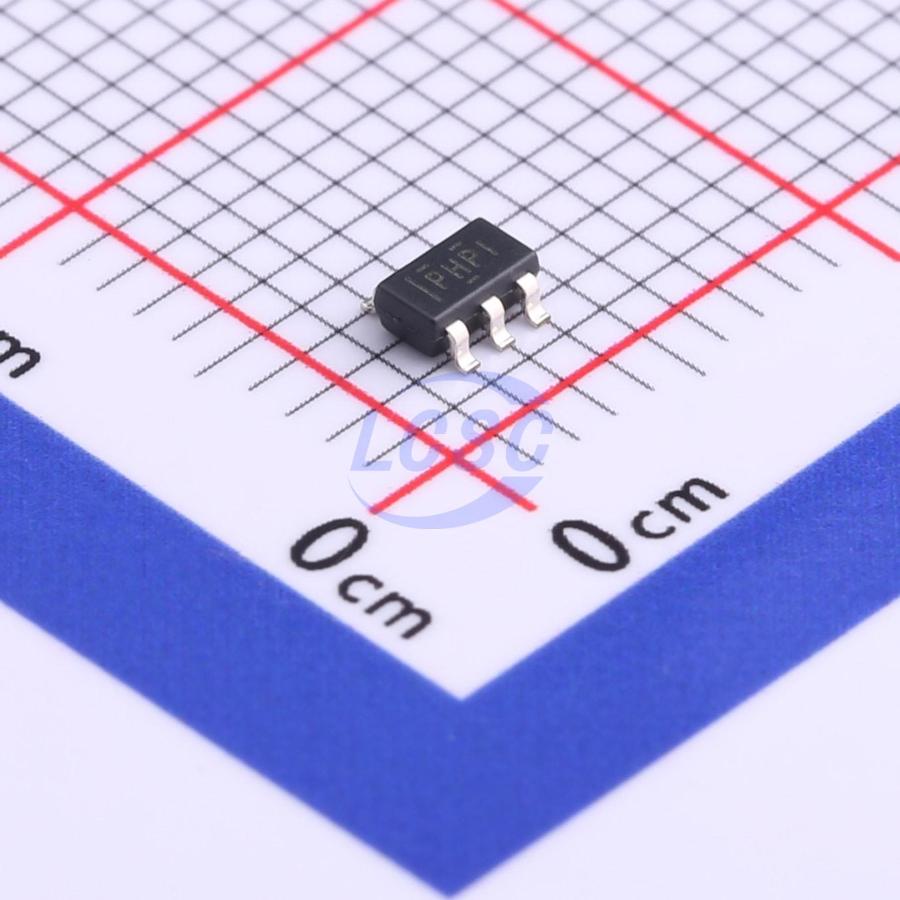

TPS61041DBVR
1MHz Boost Adjustable 28V 250mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS3 CompliantActive
TPS61041 Low-Power DC-DC Boost Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS61041DBVR
- Store part #
- C9846
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,099 in stock
#C9846
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.73 | ₹68.73 |
| 10+ | ₹54.16 | ₹541.60 |
| 30+ | ₹48.08 | ₹1,442.40 |
| 100+ | ₹40.25 | ₹4,025.00 |
| 500+ | ₹34.16 | ₹17,080.00 |
| 1,000+ | ₹32.20 | ₹32,200.00 |
1 × ₹68.73
₹68.73
excl. GST
₹81.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS61041DBVR
₹68.73 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1.8V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 28V
- Output Current
- 250mA
- Quiescent Current
- 28uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TPS6104x is a high-frequency boost converter dedicated for small to medium LCD bias supply and white LED backlight supplies. The device is ideal to generate output voltages up to 28 V from a dual-cell NiMH/NiCd or a single-cell Li-Ion battery. The part can also be used to generate standard 3.3-V or 5-V to 12-V power conversions.
Applications
- LCD Bias Supply
- White-LED Supply for LCD Backlights Digital Still Camera
- PDAs, Organizers, and Handheld PCs
- Cellular Phones
- Internet Audio Players
- Standard 3.3-V or 5-V to 12-V Conversion
Key features
- 1.8-V to 6-V Input Voltage Range
- Adjustable Output Voltage Range up to 28 V
- 400-mA (TPS61040) and 250-mA (TPS61041) Internal Switch Current
- Up to 1-MHz Switching Frequency
- 28-μA Typical No-Load Quiescent Current
- 1-μA Typical Shutdown Current
- Internal Soft Start
- Available in SOT23-5, TSOT23-5, and 2-mm×2-mm×0.8-mm WSON Packages
