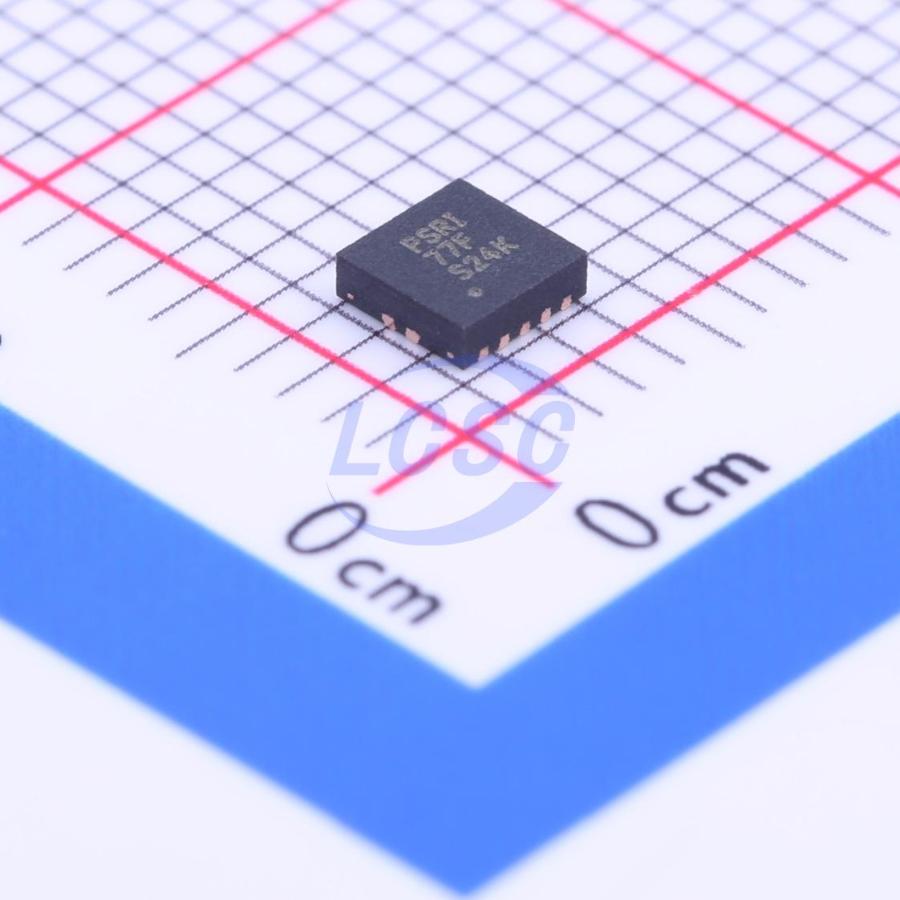

TPS61086DRCR

1.2MHz Boost Adjustable 2.8V~18.5V 2A SON-10-EP(3.1x3.1) Voltage Regulators - DC DC Switching Regulators RoHS

SON-10-EP(3.1x3.1)ROHS3 CompliantActive

18.5V Boost DC-DC Converter with 2.0A Switch

Manufacturer: TI
Manufacturer part #: TPS61086DRCR
Store part #: C24178
Package / case: SON-10-EP(3.1x3.1)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

420 in stock

#C24178

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹385.06	₹385.06
10+	₹325.74	₹3,257.40
30+	₹288.80	₹8,664.00
100+	₹250.76	₹25,076.00
500+	₹233.60	₹1,16,800.00
1,000+	₹226.21	₹2,26,210.00

Quantity (min 1)

1 × ₹385.06

₹385.06

excl. GST

₹454.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS61086DRCR

₹385.06 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Adjustable soft-start;Light load efficient mode;External compensation
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.3V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 2.8V~18.5V
Output Current: 2A
Quiescent Current: 75uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.116 g

Overview

The TPS61086 is a high frequency, high efficiency DC to DC converter with an integrated 2.0 A, 0.13 Ω power switch capable of providing an output voltage up to 18.5 V. The implemented boost converter is based on a fixed frequency of 1.2MHz, pulse-width-modulation (PWM) controller that allows the use of small external inductors and capacitors and provides fast transient response. At light load, the device can operate in Power Save Mode with pulse-frequency-modulation (PFM) to improve the efficiency while keeping a low output voltage ripple. For very noise sensitive applications, the device can be forced to PWM Mode operation over the entire load range by pulling the MODE pin high. The external compensation allows optimizing the application for specific conditions. A capacitor connected to the soft-start pin minimizes inrush current at startup.

Applications

Handheld Devices
GPS Receiver
Digital Still Camera
Portable Applications
DSL Modem
PCMCIA Card
TFT LCD Bias Supply

Key features

2.3 V to 6.0 V Input Voltage Range
18.5 V Boost Converter With 2.0 A Switch Current
1.2 MHz Switching Frequency
Power Save Mode for improved Efficiency at Low Output Power or Forced PWM
Adjustable Soft-Start
Thermal Shutdown
Undervoltage Lockout
10-Pin QFN Package

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS61086DRCT#C2071985TI · VSON-10-EP(3x3)	TI	VSON-10-EP(3x3)	10	₹482.21 · 10 in stock	View
TPS61087DRCT#C544946TI · VSON-10-EP(3x3)	TI	VSON-10-EP(3x3)	30	₹415.01 · 30 in stock	View
TPS61087DSCT#C2071532TI · WSON-10-EP(3x3)	TI	WSON-10-EP(3x3)	On request	₹498.53 · 0 in stock	View
TPS61087QDRCRQ1#C544552TI · VSON-10(3x3)	TI	VSON-10(3x3)	174	₹138.77 · 174 in stock	View
TPS61087DRCR#C112172TI · VSON-10-EP(3x3)	TI	VSON-10-EP(3x3)	2,981	₹164.78 · 2,981 in stock	View
