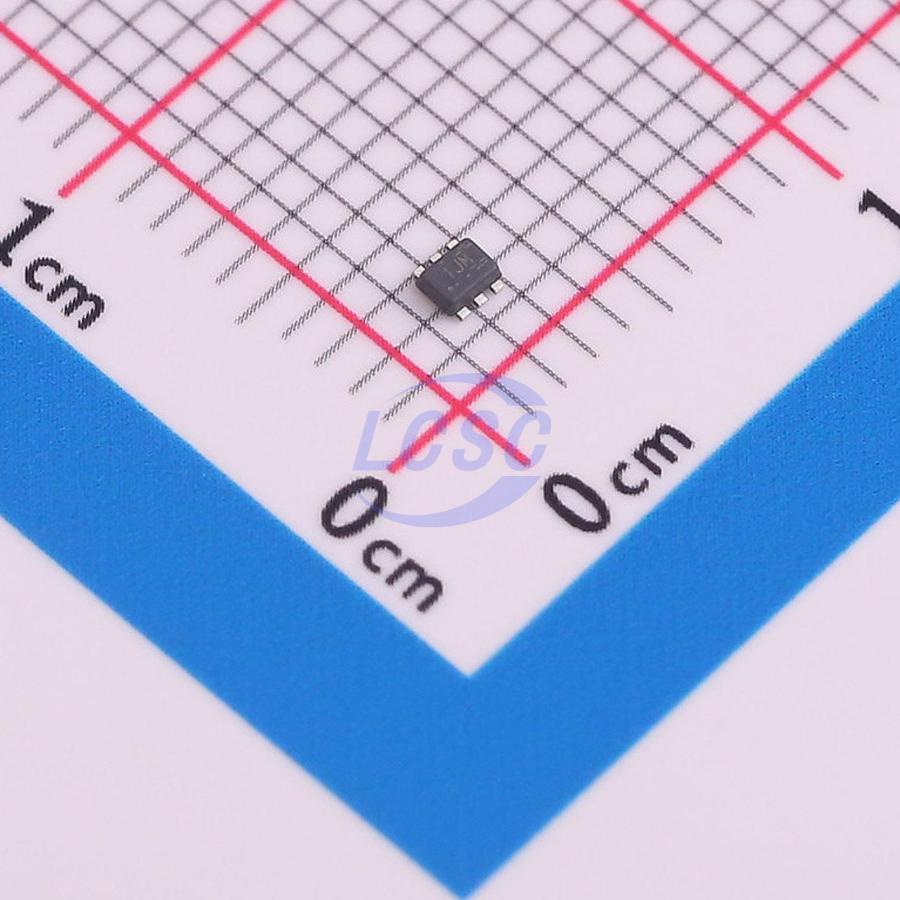

TPS62A02ADRLR

The TPS62A0x family of devices are synchronous step-down buck DC-DC converters optimized for high efficiency and compact solution size. The devices integrate switches capable of delivering an output current up to 2 A. At medium to heavy loads, the devices operate in pulse width modulation (PWM) mode with 2.4-MHz switching frequency. At light load, the devices automatically enter power save mode (PSM) to maintain high efficiency over the entire load current range. In shutdown, the current consumption is minimal as well. The TPS62A0xA variants of this device family operate in forced PWM across the whole load current range. The TPS62A0x devices provide an adjustable output voltage through an external resistor divider. An internal soft-start circuit limits the inrush current during start-up. Other features like overcurrent protection, thermal shutdown protection, and power good are built-in. The devices are available in a SOT-563 package.

Applications

• Set top box
• TV applications
• IP network camera
• Multi-function printer
• Wireless router, solid state drive
• Battery-powered applications
• General purpose point-of-load supply

Key features

• 2.5-V to 5.5-V input voltage range
• 0.6-V to VIN adjustable output voltage range
• 180-mΩ and 120-mΩ low RDSON switches (1 A)
• 100-mΩ and 67-mΩ low RDSON switches (2 A)
• <25-μA quiescent current
• 1% feedback accuracy (0°C to 125°C)
• 100% mode operation
• 2.4-MHz switching frequency
• Power save mode or PWM option available
• Power-good output pin
• Short circuit protection (HICCUP)
• Internal soft start-up
• Active output discharge
• Thermal shutdown protection
• Available in a 1.60-mm×1.60-mm SOT-63 package
• Pin-to-pin compatible with the TLV62585
