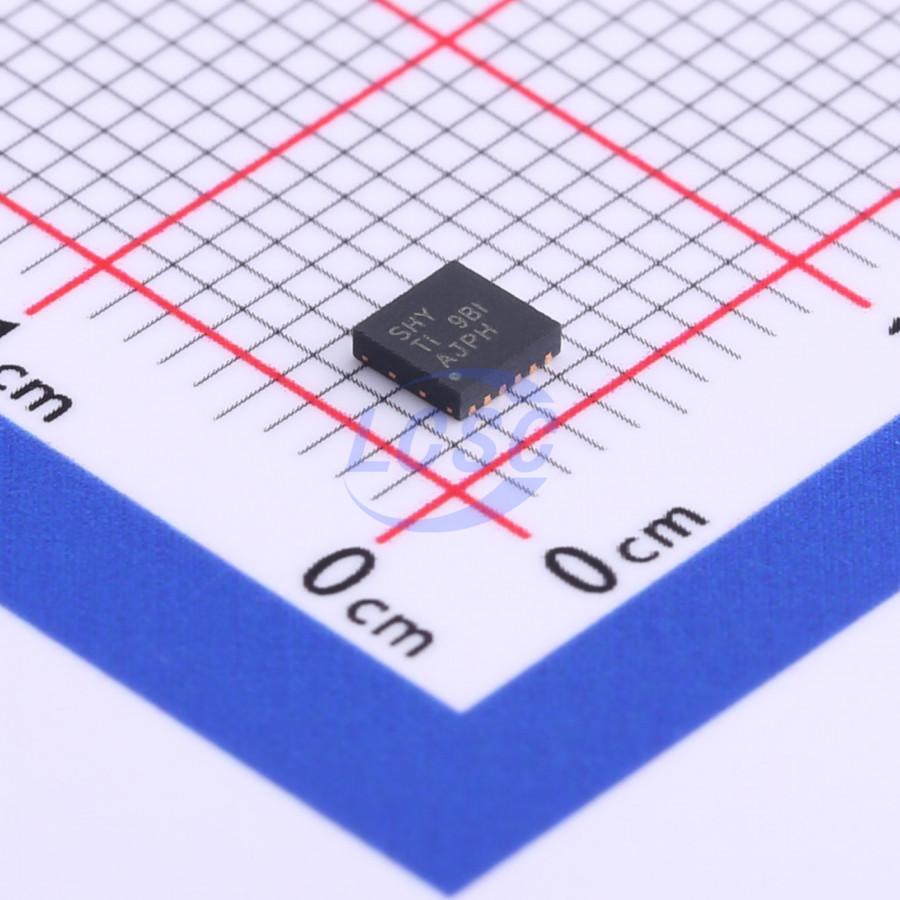

TPS65133DPDR
1.7MHz 250mA Fixed 2.9V~5V WSON-12-EP(3x3) Special Purpose Regulators RoHS
WSON-12-EP(3x3)ROHS CompliantActive
Dual 5V Output Power Management Chip
- Manufacturer
- TI
- Manufacturer part #
- TPS65133DPDR
- Store part #
- C134100
- Package / case
- WSON-12-EP(3x3)
- Category
- Special Purpose Regulators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,014 in stock
#C134100
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹188.52 | ₹188.52 |
| 10+ | ₹157.59 | ₹1,575.90 |
| 30+ | ₹140.76 | ₹4,222.80 |
| 100+ | ₹108.74 | ₹10,874.00 |
| 500+ | ₹100.23 | ₹50,115.00 |
| 1,000+ | ₹96.25 | ₹96,250.00 |
1 × ₹188.52
₹188.52
excl. GST
₹222.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS65133DPDR
₹188.52 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Output discharge;Protection latch;Overcurrent Protection
- Function
- Boost;Buck-Boost
- Frequency - Switching
- 1.7MHz
- Number of Outputs
- 2
- Output Voltage
- 5V;-5V
- Topology
- Boost;Buck-Boost
- Output Current
- 250mA
- Quiescent Current
- 100nA
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+85℃@(TA);-40℃~+125℃@(TJ)
- Output Type
- Fixed
- Voltage - Supply
- 2.9V~5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The TPS65133 is designed to supply any system requiring ±5.0–V supply rails. Each output can supply up to 250 mA of output current. The input supply voltage range is suitable for use with lithium ion batteries or from a fixed 3.3-V supply. Efficiency is typically over 90% for most applications (operating from a lithium ion battery, output currents in the range 50 mA to 200 mA). The two converters in the TPS65133 device operate independently, allowing 100% mismatch between positive and negative output currents.
Applications
- LCD Bias
- AMOLED Supplies
- Operational Amplifier Supplies
- Headphone Amplifier Supplies
- Sensor Front-End Supplies
- Data Acquisition Supplies
- General ±5-V Power Supplies
Key features
- 2.9-V to 5.0-V Input Voltage Range
- Fixed 5.0-V Positive Output Voltage (VPOS)
- Fixed -5.0-V Negative Output Voltage (VNEG)
- ±1% Output Voltage Accuracy
- High Efficiency
- 250-mA Output Current Capability
- Independent Converter Operation Allows 100% Output Current Mismatch
- Excellent Line and Load Transient Response
- Operates in CCM to Minimize Output Noise
- Boost Converter able to Operate with Input Supply Voltages close to 5.0 V
- Short-Circuit Protection
- Thermal Shutdown
