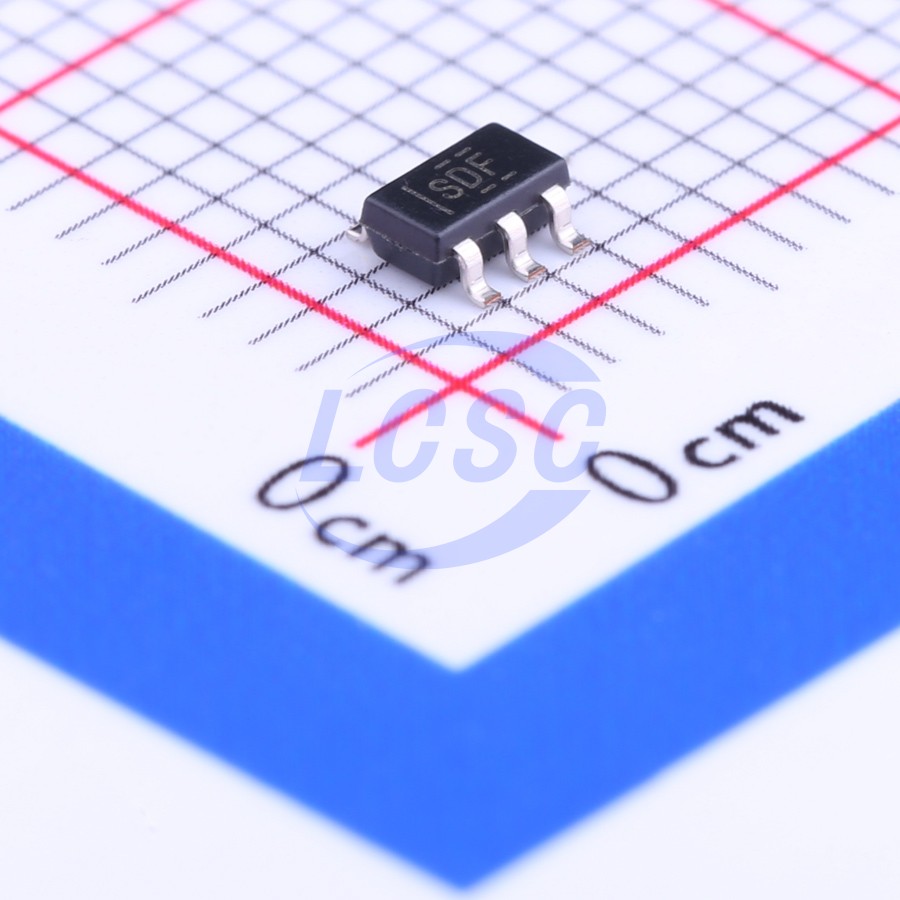

TPS70930DBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
SOT-23-5ROHS CompliantActive
150mA, 30V ultra-low IQ, low-dropout regulator with reverse current protection and enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS70930DBVR
- Store part #
- C133981
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
605 in stock
#C133981
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.39 | ₹161.95 |
| 50+ | ₹25.15 | ₹1,257.50 |
| 150+ | ₹22.03 | ₹3,304.50 |
| 500+ | ₹18.90 | ₹9,450.00 |
| 3,000+ | ₹17.16 | ₹51,480.00 |
| 6,000+ | ₹16.13 | ₹96,780.00 |
5 × ₹32.39
₹161.95
excl. GST
₹191.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS70930DBVR
₹161.95 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Enable control;Reverse-polarity current protection;Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TPS709 series linear regulators are ultra-low quiescent current devices designed for power-sensitive applications. A precision bandgap and error amplifier provides 2% accuracy over temperature. With a quiescent current of only 1μA, these devices are an ideal solution for always-on, battery-powered systems requiring very low idle-state power consumption. For added safety, these devices also feature thermal shutdown, current limiting, and reverse current protection. Shutdown mode is enabled by pulling the EN pin low. Shutdown current in this mode is as low as 150nA (typical). The TPS709 series is available in WSON-6 and SOT-23-5 packages.
Applications
- Zigbee networks
- Home automation
- Metering
- Electronic scales
- Portable power tools
- Remote control devices
- Wireless handsets, smartphones, PDAs, WLANs, and other PC expansion cards
- Large home appliances
Key features
- Ultra-low IQ: 1μA
- Reverse current protection
- Low I<sub>SHUTDOWN</sub>: 150nA
- Input voltage range: 2.7V to 30V
- 200mA peak output support
- 2% accuracy over temperature range
- Fixed output voltage options: 1.2V to 6.5V
- Thermal shutdown and overcurrent protection
- Package: SOT-23-5, WSON-6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS709A30DBVR#C2865456TI · SOT-23-5 | TI | SOT-23-5 | 248 | ₹151.25 · 248 in stock | View |
| TPS70930QDBVRQ1#C2864240TI · SOT-23-5 | TI | SOT-23-5 | 2,501 | ₹157.38 · 2,501 in stock | View | |
 | MD85E30QC3#C920476Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 2,795 | ₹13.03 · 2,795 in stock | View |
 | PJ72AL30SE-A#C41367951PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 500 | ₹8.81 · 500 in stock | View |
 | HT7525-3-TP#C49451977TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹12.76 · 3,000 in stock | View |
