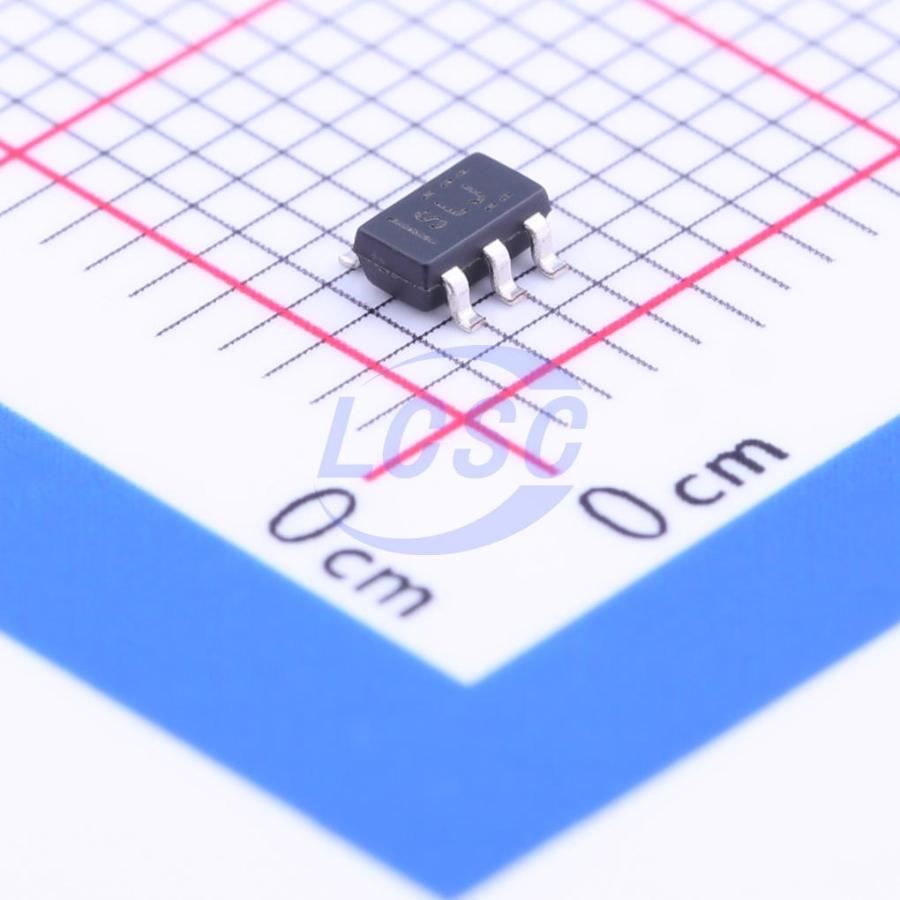

TPS70933QDBVRQ1
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Automotive 150mA, 30V, ultra-low IQ, low-dropout regulator with reverse current protection
- Manufacturer
- TI
- Manufacturer part #
- TPS70933QDBVRQ1
- Store part #
- C90991
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,891 in stock
#C90991
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.66 | ₹64.66 |
| 10+ | ₹49.41 | ₹494.10 |
| 30+ | ₹42.88 | ₹1,286.40 |
| 100+ | ₹34.61 | ₹3,461.00 |
| 500+ | ₹31.13 | ₹15,565.00 |
| 1,000+ | ₹28.96 | ₹28,960.00 |
1 × ₹64.66
₹64.66
excl. GST
₹76.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS70933QDBVRQ1
₹64.66 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Enable control;Reverse-polarity current protection;Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TPS709-Q1 series of linear regulators are ultralow, quiescent current devices designed for power-sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 μA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermalshutdown, current-limit, and reverse-current protections for added safety. These regulators can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical. The TPS709-Q1 series is available in WSON-6 and SOT-23-5 packages.
Applications
- Automotive
- Infotainment
- Body Control Modules
- Navigation Systems
- Standby Power for Microcontrollers
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
- Input Voltage Range: 2.7 V to 30 V
- Ultralow IQ: 1 μA
- Reverse Current Protection
- Low ISHUTDOWN: 150 nA
- Supports 200-mA Peak Output
- 2% Accuracy Over Temperature
- Available in Fixed-Output Voltages: 1.2 V to 6.5 V
- Thermal Shutdown and Overcurrent Protection
- Packages: SOT-23-5, WSON-6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS709B33DBVR#C2856710TI · SOT-23-5 | TI | SOT-23-5 | 28 | ₹141.59 · 28 in stock | View |
 | TPS709A33DBVT#C2870359TI · SOT-23-5 | TI | SOT-23-5 | 41 | ₹188.18 · 41 in stock | View |
 | TPS70933DBVR#C89347TI · SOT-23-5 | TI | SOT-23-5 | 31,085 | ₹44.96 · 31,085 in stock | View |
 | NCP730ASN330T1G#C892814onsemi · TSOP-5-1.5mm | onsemi | TSOP-5-1.5mm | 209 | ₹142.71 · 209 in stock | View |
 | NCV8730ASN330T1G#C893327onsemi · TSOP-5-1.5mm | onsemi | TSOP-5-1.5mm | 25 | ₹136.02 · 25 in stock | View |
