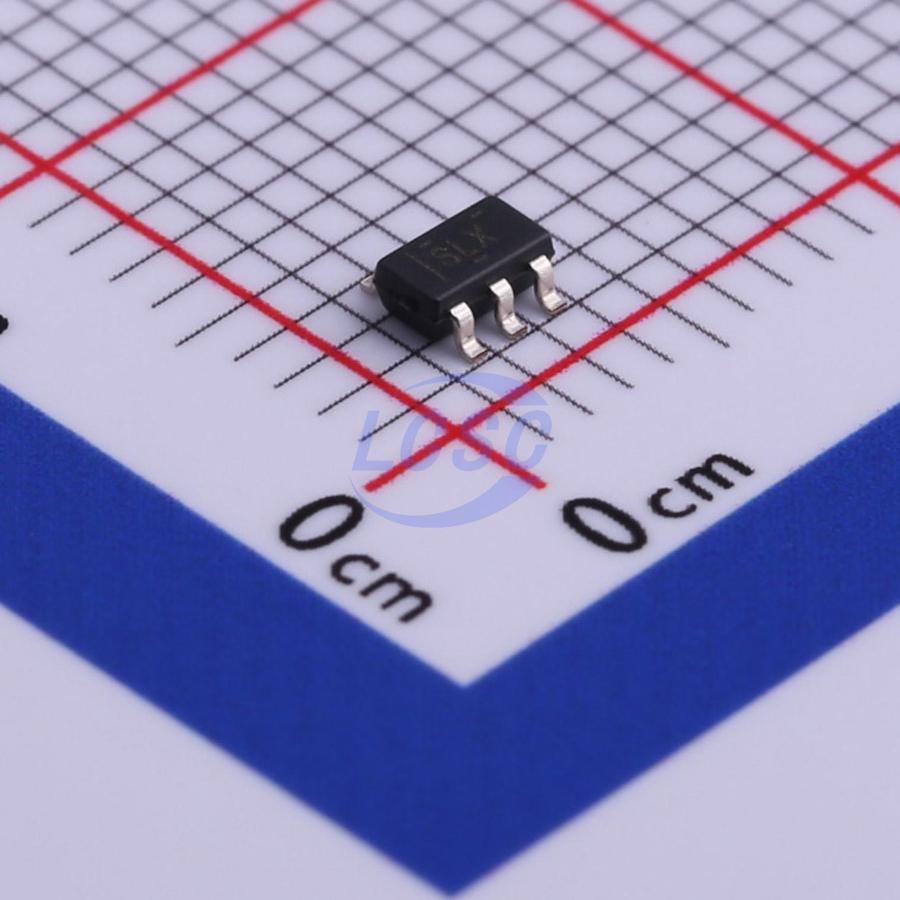

TPS70950QDBVRQ1

5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

Automotive 150mA, 30V, ultra-low IQ, low-dropout regulator with reverse current protection

Manufacturer: TI
Manufacturer part #: TPS70950QDBVRQ1
Store part #: C485909
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,618 in stock

#C485909

Stock & price checked 16 h ago

Quantity	Unit price	Pack price
1+	₹141.18	₹141.18
10+	₹117.72	₹1,177.20
30+	₹104.91	₹3,147.30
100+	₹92.97	₹9,297.00
500+	₹86.44	₹43,220.00
1,000+	₹83.40	₹83,400.00

Quantity (min 1)

1 × ₹141.18

₹141.18

excl. GST

₹166.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS70950QDBVRQ1

₹141.18 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 1uA
Output Configuration: Positive
Operating Voltage: 30V
Output Current: 150mA
Features: Enable control;Reverse-polarity current protection;Thermal shutdown;Over Current Protection;Input under-voltage protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The TPS709-Q1 series of linear regulators are ultralow, quiescent current devices designed for power-sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermalshutdown, current-limit, and reverse-current protections for added safety. These regulators can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical. The TPS709-Q1 series is available in WSON-6 and SOT-23-5 packages.

Applications

Automotive
Infotainment
Body Control Modules
Navigation Systems
Standby Power for Microcontrollers

Key features

Qualified for Automotive Applications AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B
Input Voltage Range: 2.7 V to 30 V
Ultralow IQ: 1 µA
Reverse Current Protection
Low ISHUTDOWN: 150 nA
Supports 200-mA Peak Output
2% Accuracy Over Temperature
Available in Fixed-Output Voltages: 1.2 V to 6.5 V
Thermal Shutdown and Overcurrent Protection
Packages: SOT-23-5, WSON-6
