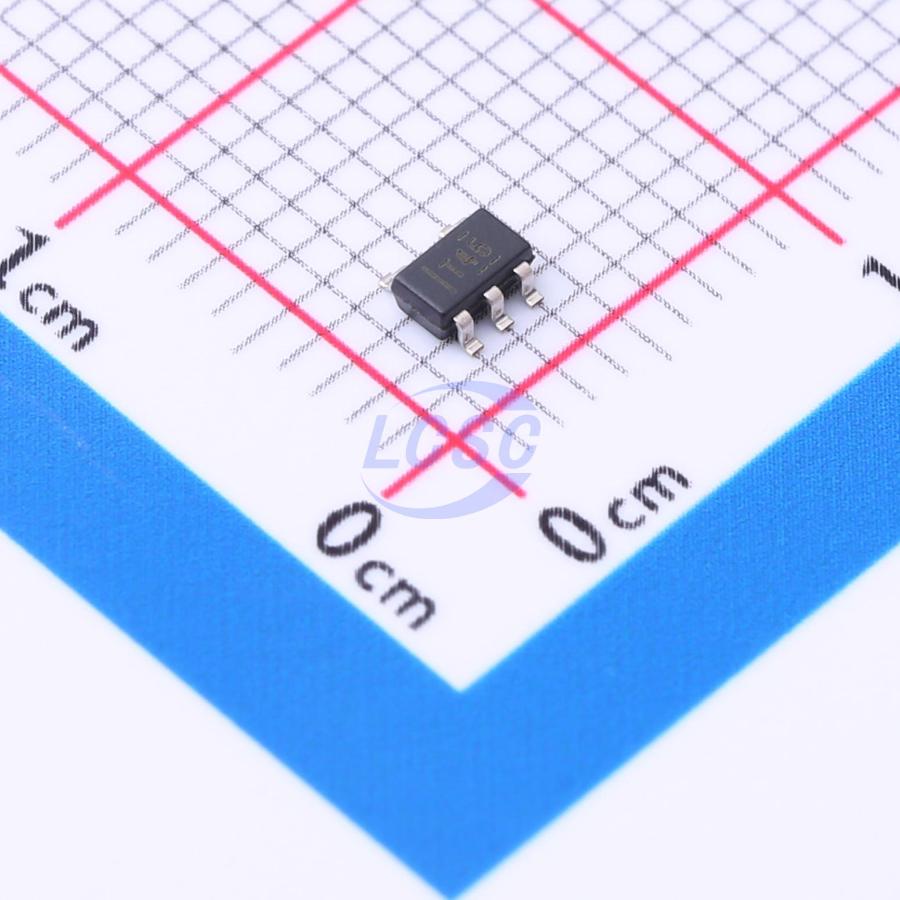

TPS73630DBVR

The TPS736xx family of low-dropout (LDO) linear voltage regulators uses a new topology: an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR, and even allows operation without a capacitor. It also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current. The TPS736xx uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 1 μA and ideal for portable applications. The extremely low output noise (30 μV_RMS with 0.1 - μF C_NR) is ideal for powering VCOs. These devices are protected by thermal shutdown and foldback current limit.

Applications

• Portable/Battery-Powered Equipment
• Post-Regulation for Switching Supplies
• Noise-Sensitive Circuitry such as VCOs
• Point of Load Regulation for DSPs, FPGAs, ASICs, and Microprocessors

Key features

• Stable with No Output Capacitor or Any Value or Type of Capacitor
• Input Voltage Range of 1.7 V to 5.5 V
• Ultra-Low Dropout Voltage: 75 mV typ
• Excellent Load Transient Response—with or without Optional Output Capacitor
• New NMOS Topology Delivers Low Reverse Leakage Current
• Low Noise: 30 μV_RMS typ (10 Hz to 100 kHz)
• 0.5% Initial Accuracy
• 1% Overall Accuracy Over Line, Load, and Temperature
• Less Than 1 μA max I_Q in Shutdown Mode
• Thermal Shutdown and Specified Min/Max Current Limit Protection
• Available in Multiple Output Voltage Versions Fixed Outputs of 1.20 V to 5.0 V Adjustable Output from 1.20 V to 5.5 V Custom Outputs Available
