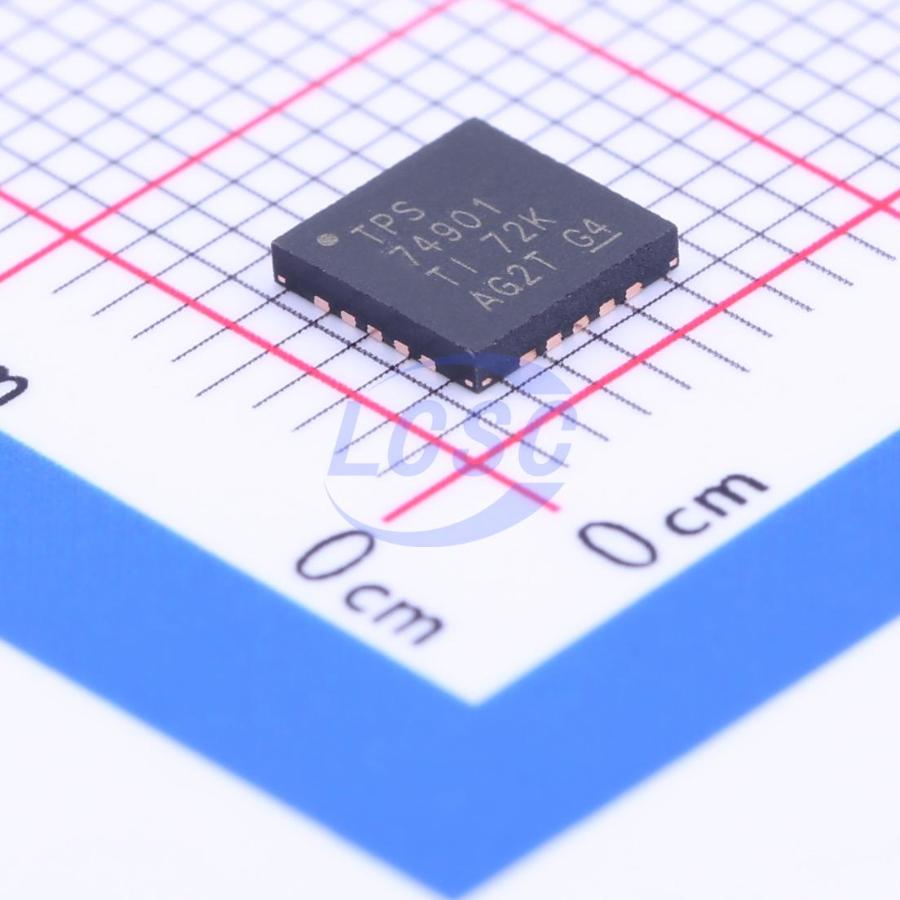

TPS74901RGWR

The TPS74901 low-dropout (LDO) linear regulator provides an easy-to-use, robust power management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current during start-up. The soft-start is monotonic and well-suited for powering many different types of processors and ASICs. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility permits the user to configure a solution that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements. A precision reference and error amplifier deliver 2% accuracy over load, line, temperature, and process. The device is stable with any type of capacitor ≥2.2 μF, and the device is fully specified from -40°C to 125°C. The TPS74901 is offered in a small (3 mm × 3 mm) VSON package and a small (5 - mm × 5 - mm) VQFN package, yielding a highly compact total solution size. The device is also available in a DDPAK - 7 package.

Applications

• FPGA Applications
• DSP Core and I/O Voltages
• Servers Post - Regulation Applications
• Applications with Special Start - Up Time or Sequencing Requirements

Key features

• VOUT Range: 0.8 V to 3.6 V
• Ultralow VIN Range: 0.8 V to 5.5 V
• VBIAS Range: 2.7 V to 5.5 V
• Low Dropout: 120 mV (Typical) at 3 A
• Power - Good (PG) Output Allows Supply Monitoring or Provides a Sequencing Signal for Other Supplies
• 2% Accuracy Over Line, Load, and Temperature
• Adjustable Start - Up In - Rush Control
• VBIAS Permits Low VIN Operation With Good Transient Response
• Stable with Any Output Capacitor ≥2.2 μF
• Packages: Small, 3 - mm × 3 - mm × 1 - mm VSON, 5 - mm × 5 - mm × 1 - mm VQFN and DDPAK - 7
• Active High Enable
