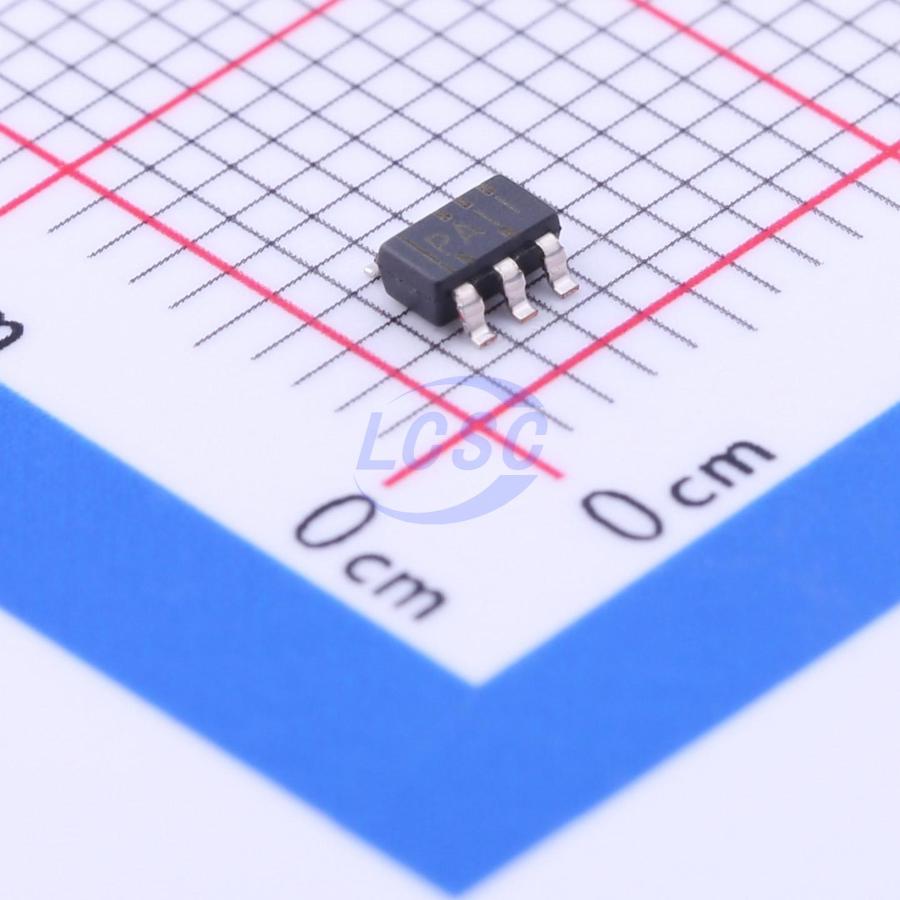

TPS76133DBVR
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
100mA, 16V, low-dropout regulator with reverse current protection
- Manufacturer
- TI
- Manufacturer part #
- TPS76133DBVR
- Store part #
- C194885
- Package / case
- SOT-23-5
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50,928 in stock
#C194885
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.79 | ₹76.79 |
| 10+ | ₹60.47 | ₹604.70 |
| 30+ | ₹53.52 | ₹1,605.60 |
| 100+ | ₹44.60 | ₹4,460.00 |
| 500+ | ₹37.41 | ₹18,705.00 |
| 1,000+ | ₹35.02 | ₹35,020.00 |
1 × ₹76.79
₹76.79
excl. GST
₹90.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS76133DBVR
₹76.79 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2.6mA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 100mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TPS761xx is a 100 mA, low dropout (LDO) voltage regulator designed specifically for battery-powered applications. A proprietary BiCMOS fabrication process allows the TPS761xx to provide outstanding performance in all specifications critical to battery-powered operation. The TPS761xx is available in a space-saving SOT-23 (DBV) package and operates over a junction temperature range of -40°C to 125°C.
Key features
- Thermal Protection
- Less Than 1 μA Quiescent Current in Shutdown
- -40°C to 125°C Operating Junction Temperature Range
- 5-Pin SOT-23 (DBV) Package
- ESD Protection Verified to 1.5 KV Human Body Model (HBM) per MIL-STD-883C
