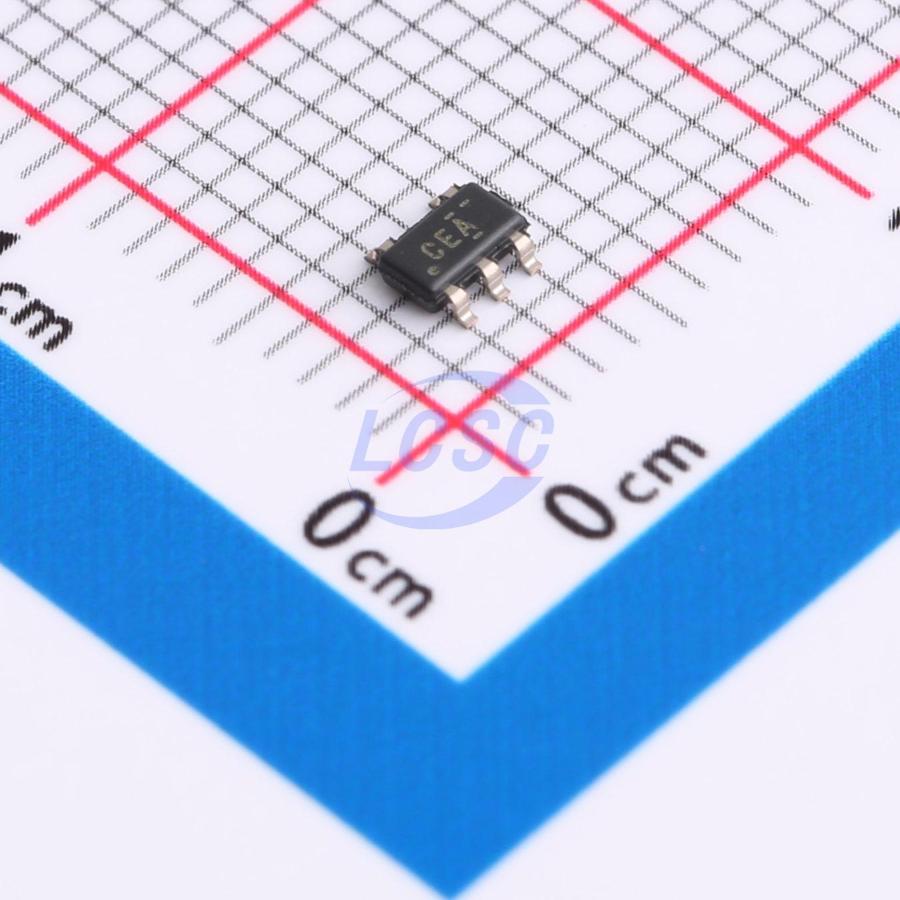

TPS78001DDCR

The TPS780 family of low-dropout (LDO) regulators offer the benefits of ultralow power, miniaturized packaging, and selectable dual-level output voltage levels with the V_SET pin. The ultralow-power and dynamic voltage scaling (DVS) capability which provides dual-level output voltages let designers customize power consumption for specific applications. Designers can now shift to a lower voltage level in a battery-powered design when the microprocessor is in sleep mode, further reducing overall system power consumption. The two voltage levels are preset at the factory and are stored using EPROM and are available on fixed output voltage devices. The TPS780 series of LDOs are designed to be compatible with the TI MSP430 and other similar products. The enable pin is compatible with standard CMOS logic. The TPS780 series also come with thermal shutdown and current limit to protect the device during fault conditions. All packages have an operating temperature range of T_J = -40°C to 125°C.

Applications

• TI MSP430 Attach Applications
• Power Rails With Programming Mode Dual Voltage Levels for Power-Saving Mode
• Wireless Handsets, Smart Phones, PDAs, MP3 Players, and Other Battery-Operated Handheld Products

Key features

• Low IQ: 500 nA
• 150-mA, Low-Dropout Regulator With PinSelectable Dual Voltage Level Output
• Low Dropout: 200 mV at 150 mA
• 3% Accuracy Over Load, Line, and Temperature
• Available in Dual-Level, Fixed-Output Voltages From 1.5 V to 4.2 V
• Available in an Adjustable Version from 1.22 V to 5.25 V or a Dual-Level Output Version
• V_SET Pin Toggles Output Voltage Between Two Factory-Programmed Voltage Levels
• Stable with a 1.0-μF Ceramic Capacitor
• Thermal Shutdown and Overcurrent Protection
• CMOS Logic Level-Compatible Enable Pin
• Available in DDC (TSOT23-5) or DRV (2-mm×2-mm SON-6) Package Options
