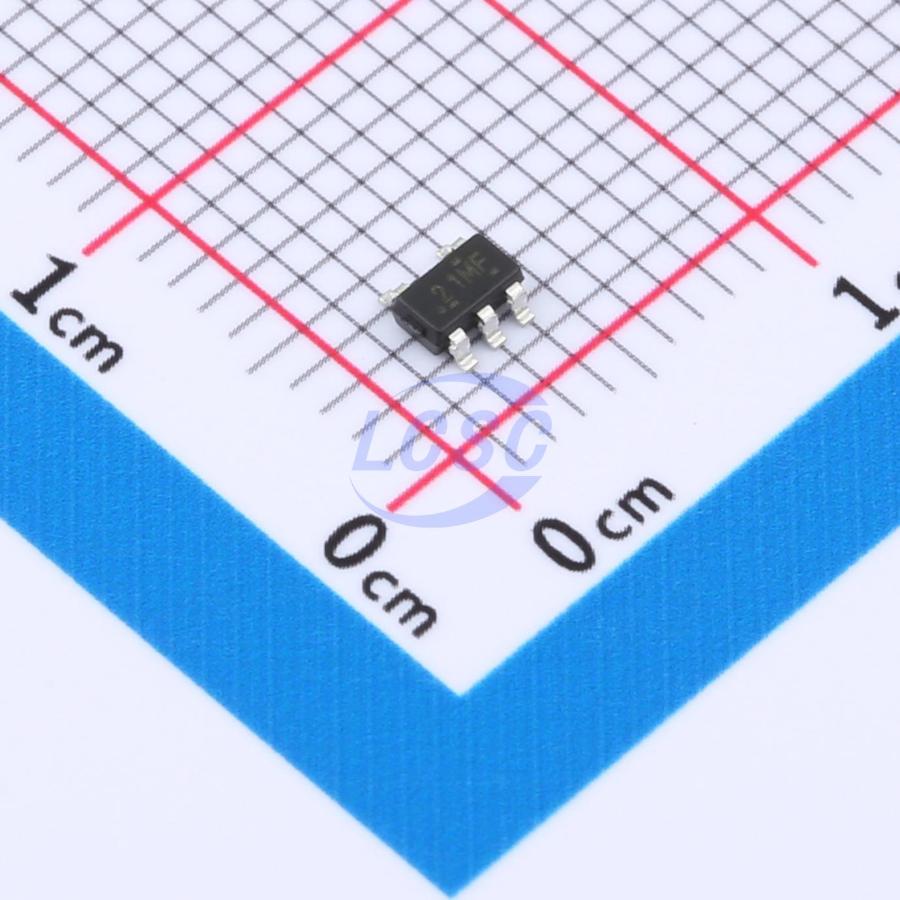

TPS7A0230PDBVR

Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-5

SOT-23-5ROHS3 CompliantActive

200mA, nanopower-IQ (25nA), low dropout (LDO) regulator with enable functionality

Manufacturer: TI
Manufacturer part #: TPS7A0230PDBVR
Store part #: C3747031
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

37,468 in stock

#C3747031

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹59.73	₹59.73
10+	₹47.14	₹471.40
30+	₹41.71	₹1,251.30
100+	₹32.37	₹3,237.00
500+	₹29.33	₹14,665.00
1,000+	₹27.58	₹27,580.00

Quantity (min 1)

1 × ₹59.73

₹59.73

excl. GST

₹70.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS7A0230PDBVR

₹59.73 for 1 + GST

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 25nA
Output Configuration: Positive
Output Current: 200mA
Operating Voltage: 6V
Features: Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.16 g

Overview

The TPS7A02 is an ultra-small, ultra-low quiescent current LDO linear regulator capable of supplying 200mA with excellent transient performance. The TPS7A02 features an ultra-low IQ (25nA), designed for applications where ultra-low quiescent current is a critical parameter. The device maintains low IQ consumption even in dropout mode, further extending battery life. In shutdown or disabled mode, the device draws an ultra-low IQ of 3nA, helping to extend battery shelf life. The TPS7A02 output voltage range is 0.8V to 5.0V in 50mV steps to support lower modern MCU core voltages.

Applications

Wearable electronics
Thermostats, smoke and heat detectors
Gas, heat and water meters
Blood glucose monitors and pulse oximeters
Residential circuit breakers and fault indicators
Building security and video surveillance devices
EPOS card readers

Key features

Ultra-low IQ: 25nA (typical), shutdown IQ: 3nA (typical) even in dropout
Excellent transient response (1mA to 50mA): settling time < 10μs, 100mV undershoot
Input voltage range: 1.5V to 6.0V
Output voltage range: 0.8V to 5.0V (fixed)
Output accuracy: 1.5% over operating temperature range
Smart enable pin pull-down
Ultra-low dropout: 270mV (max) at 200mA (VOUT = 3.3V)
Stable with 1μF or larger capacitors
Package: 1.0mm×1.0mm×2SON, SOT-23-5, 0.64mm×0.64mm DSBGA

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS7A0330PDBVR#C3752328TI · SOT-23-5	TI	SOT-23-5	245	₹52.05 · 245 in stock	View
DS8562-30S5#C18199518DSTECH · SOT23-5	DSTECH	SOT23-5	4,180	₹5.48 · 4,180 in stock	View
LDS3985M30R#C2970345ST · SOT-23-5	ST	SOT-23-5	2	₹305.92 · 2 in stock	View
LDK220M30R#C5267990ST · SOT-23-5L	ST	SOT-23-5L	2,055	₹24.67 · 2,055 in stock	View
DS8571-30S5#C48533026DSTECH · SOT-23-5	DSTECH	SOT-23-5	1,020	₹3.48 · 1,020 in stock	View
