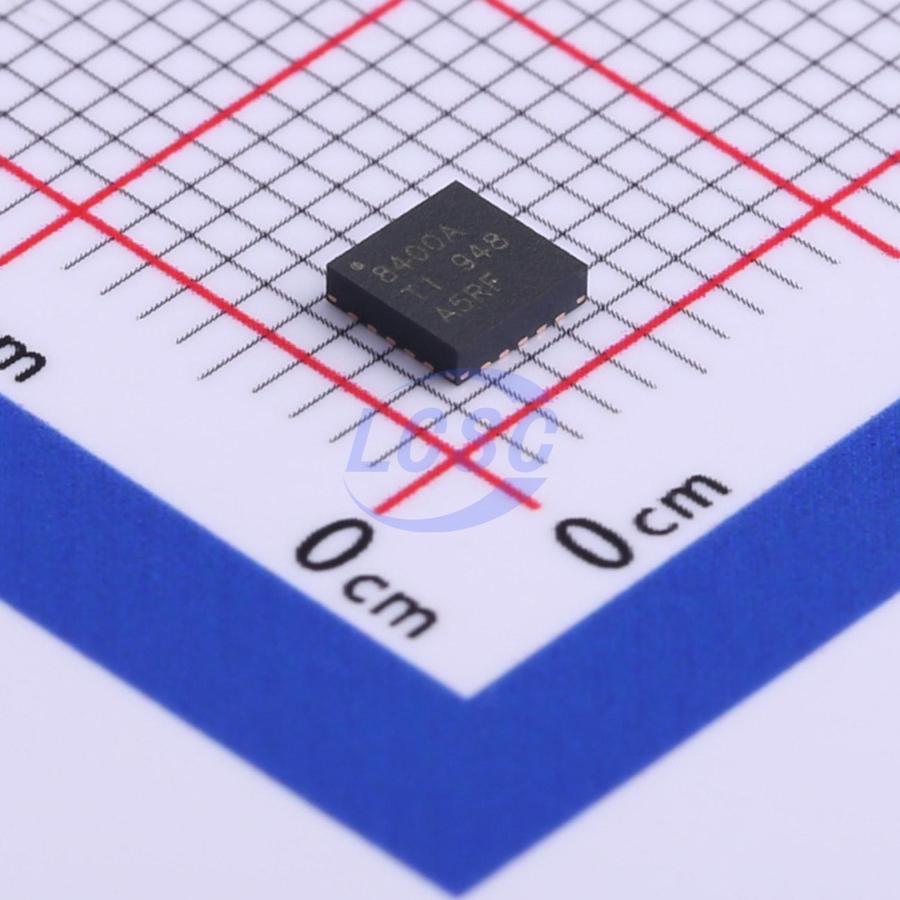

TPS7A8400ARGRR

The TPS7A84A is a low-noise, low-dropout linear regulator (LDO) capable of sourcing 3 A with only 180 mV of maximum dropout. The device output voltage is pin-programmable from 0.8 V to 3.95 V and adjustable from 0.8 V to 5.15 V using an external resistor divider. The combination of low-noise, high-PSRR, and high output-current capability makes the TPS7A84A ideal to power noise-sensitive components such as those found in high-speed communications, video, medical, or test and measurement applications. The high performance of the TPS7A84A limits power-supply-generated phase noise and clock jitter, making this device ideal for powering high-performance serializer and deserializer (SerDes), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and RF components. Specifically, RF amplifiers benefit from the high-performance and >5 - V output capability of the device. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (0.75% over line, load, and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A84A ensure optimal system performance. The versatility of the TPS7A84A makes the device a component of choice for many demanding applications.

Applications

• Digital Loads: SerDes, FPGAs, and DSPs
• Instrumentation, Medical, and Audio
• High - Speed Analog Circuits: VCO, ADC, DAC, and LVDS
• Imaging: CMOS Sensors and Video ASICs
• Test and Measurement

Key features

• Low Dropout: 180 mV (maximum) at 3 A With BIAS
• 0.75% (maximum) Accuracy Over Line, Load, and Temperature With BIAS
• Output Voltage Noise: 4.4 µVRMS
• Input Voltage Range:
• Without BIAS: 1.4 V to 6.5 V
• With BIAS: 1.1 V to 6.5 V
• Output Voltage Range:
• Adjustable Operation: 0.8 V to 5.15 V
• ANY - OUT™ Operation: 0.8 V to 3.95 V
• Power - Supply Ripple Rejection:
• 40 dB at 500 kHz
• Excellent Load Transient Response
• Adjustable Soft - Start In - Rush Control
• Low Thermal Resistance: RθJA = 43.4°C/W
• Open - Drain Power - Good (PG) Output
