UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
TECH PUBLICDatasheet (PDF)

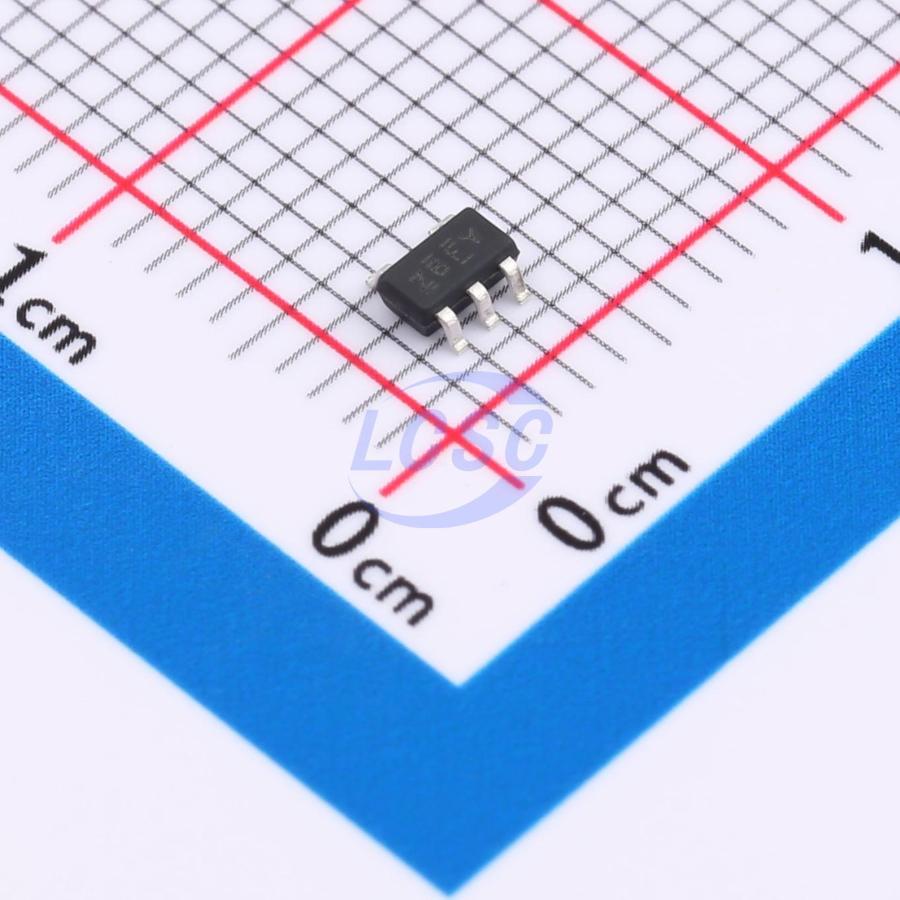

TPS7B6933DBVR-TP
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
250mA, 40V ultra-low quiescent current LDO
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS7B6933DBVR-TP
- Store part #
- C5371018
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,315 in stock
#C5371018
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.17 | ₹140.85 |
| 50+ | ₹22.15 | ₹1,107.50 |
| 150+ | ₹19.57 | ₹2,935.50 |
| 500+ | ₹16.34 | ₹8,170.00 |
| 3,000+ | ₹14.06 | ₹42,180.00 |
| 6,000+ | ₹13.20 | ₹79,200.00 |
5 × ₹28.17
₹140.85
excl. GST
₹166.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7B6933DBVR-TP
₹140.85 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 40V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The TPS7B69 is a highvoltage, low quiescent current, lowdropoutregulator with 250mA output driving capacity. The TPS7B69, which operates over an input range up to 40v, is stable with any capacitors, whose capacitance is larger than 1μF, and suitable for powering battery - management ICs because of the virtue of its low quiescent current consumption and lowdropout voltage. The TPS7B69 is available in SOT23 - 5
Applications
- E - meters, Water Meters and Gas Meters
- Appliances and white Goods
Key features
- Up to 40v input voltage range
- 250mA output current driving capacity
- Ultra low quiescent current (typical 1.5μA)
- 400mV typical dropout at 100mA
- Thermal shutdown protection
- Short circuit protection
- Stable with 1μF output capacitor
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP402C33S5#C48886812TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,530 | ₹16.71 · 2,530 in stock | View |
