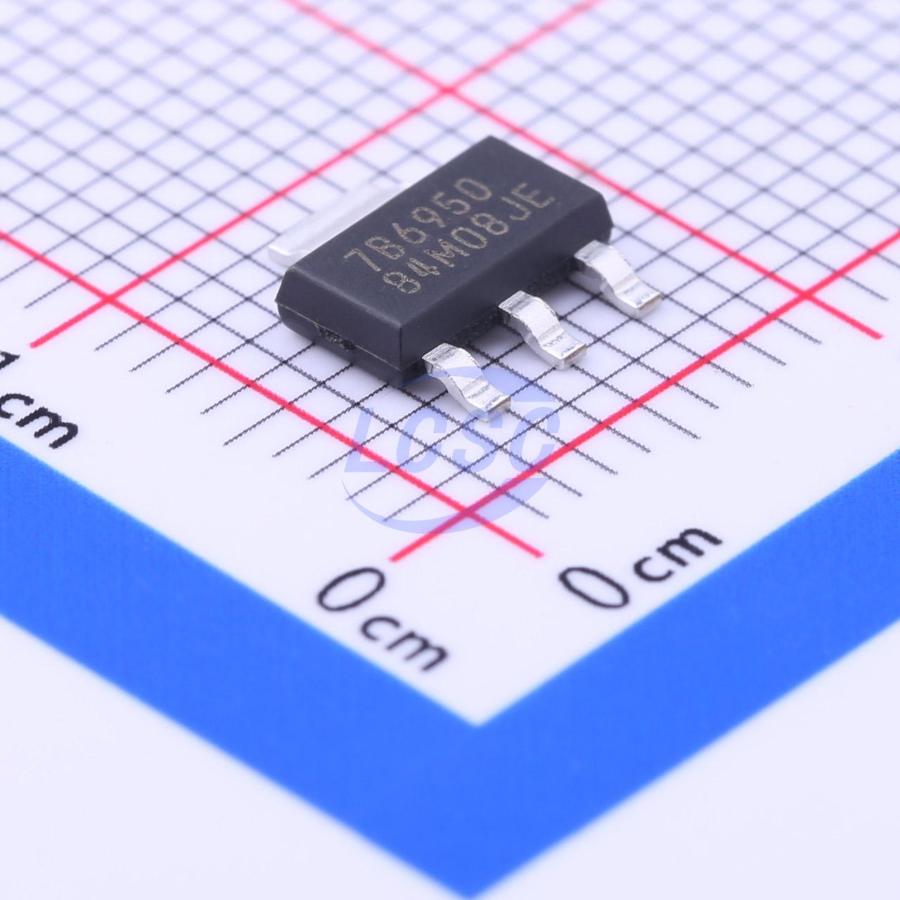

TPS7B6950QDCYRQ1

5V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223-4ROHS3 CompliantActive

150mA, battery-operated (40V), high PSRR, low IQ, low-dropout linear regulator

Manufacturer: TI
Manufacturer part #: TPS7B6950QDCYRQ1
Store part #: C108469
Package / case: SOT-223-4
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23,620 in stock

#C108469

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹44.35	₹221.75
50+	₹34.86	₹1,743.00
150+	₹30.80	₹4,620.00
500+	₹25.73	₹12,865.00
2,500+	₹23.47	₹58,675.00
5,000+	₹22.12	₹1,10,600.00

Quantity (min 5, multiples of 5)

5 × ₹44.35

₹221.75

excl. GST

₹261.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS7B6950QDCYRQ1

₹221.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 15uA
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 150mA
Features: Built-in soft-start;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.288 g

Overview

The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V V₁ operations. With only 15-μA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications. The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a -40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.

Applications

Automotive
Infotainment Systems With Sleep Mode
Always-On Battery Applications
Door Modules
Remote Keyless-Entry Systems
Immobilizers

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B
Maximum Output Current: 150 mA
Low Quiescent Current (I_Q): 15 μA Typical at Light Loads, 25 μA Maximum Under Full Temperature
450 mV Typical Low Dropout Voltage at 100 mA Load Current

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
BD750L2FP3-CE2#C2939036ROHM · SOT-223-4F	ROHM	SOT-223-4F	1,767	₹139.30 · 1,767 in stock	View
RS3015-5.0XD3-Q1#C54300661RUNIC · SOT-223	RUNIC	SOT-223	2,155	₹46.83 · 2,155 in stock	View
ICW1261A50S3GQ1#C19271479ICW · SOT-223-3L	ICW	SOT-223-3L	2,437	₹47.71 · 2,437 in stock	View
TPL803150-ST4R-S#C450731593PEAK · SOT-223-3	3PEAK	SOT-223-3	2	₹53.81 · 2 in stock	View
TPL803150Q-ST4R-S#C519333793PEAK · SOT-223-3	3PEAK	SOT-223-3	130	₹116.87 · 130 in stock	View
