TECH PUBLICDatasheet (PDF)

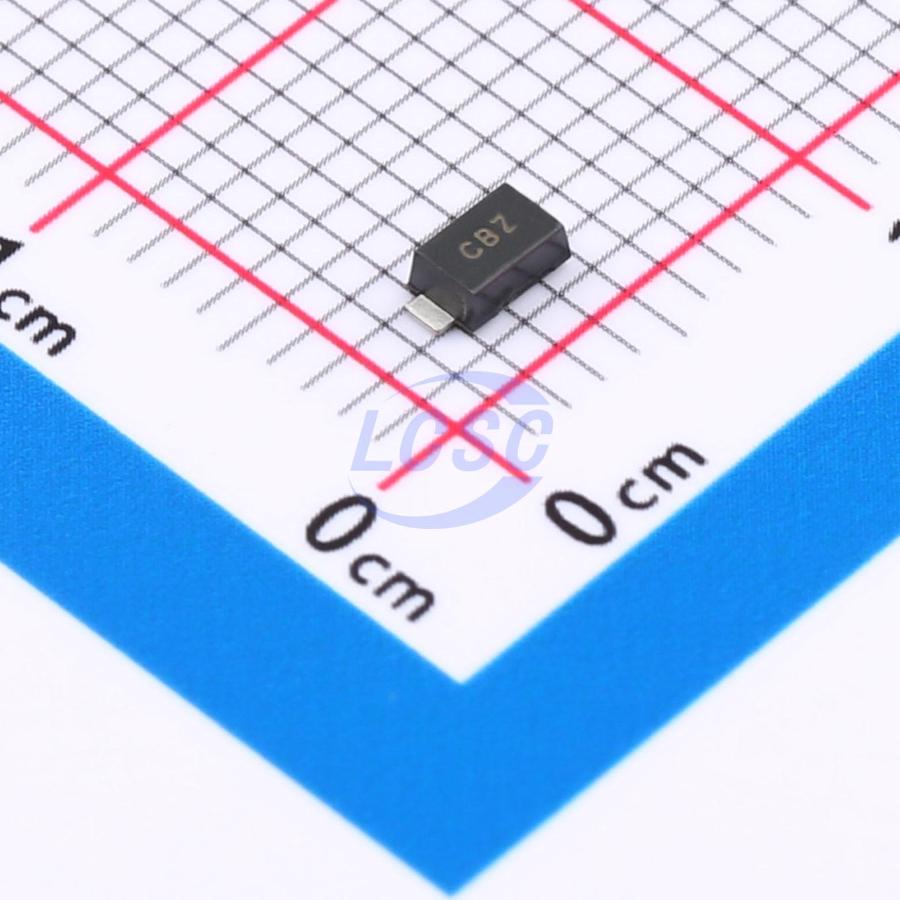

TPSMF24CA
38.9VC Clamp 5.1A Ipp SOD-123FL
SOD-123FLROHS CompliantActive
24VWM 38.9VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSMF24CA
- Store part #
- C42370584
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C42370584
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.21 | ₹84.20 |
| 200+ | ₹3.33 | ₹666.00 |
| 600+ | ₹2.84 | ₹1,704.00 |
| 3,000+ | ₹2.55 | ₹7,650.00 |
| 9,000+ | ₹2.29 | ₹20,610.00 |
| 21,000+ | ₹2.16 | ₹45,360.00 |
20 × ₹4.21
₹84.20
excl. GST
₹99.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMF24CA
₹84.20 for 20 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.1A
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 200W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
