TECH PUBLICDatasheet (PDF)

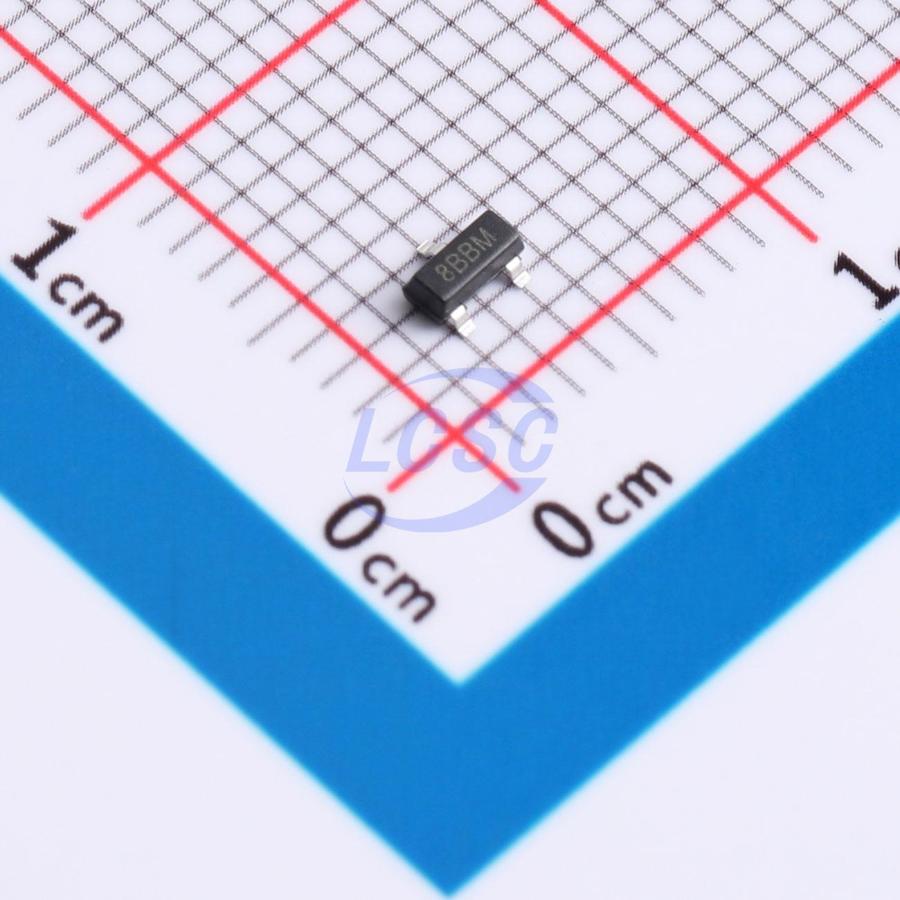

TPSTM1001MWX6F
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSTM1001MWX6F
- Store part #
- C52817304
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C52817304
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.72 | ₹133.60 |
| 50+ | ₹20.88 | ₹1,044.00 |
| 150+ | ₹18.36 | ₹2,754.00 |
| 500+ | ₹15.24 | ₹7,620.00 |
| 3,000+ | ₹13.85 | ₹41,550.00 |
| 6,000+ | ₹13.01 | ₹78,060.00 |
5 × ₹26.72
₹133.60
excl. GST
₹157.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSTM1001MWX6F
₹133.60 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Intelligent instruments
- CPU and logic circuit reset
Key features
- High accuracy ±2%
- Precision monitoring of +2.5V, +3V, +3.3V, and +5V supply voltages
- Power supply transient immunity
- Reset signal guaranteed valid with VCC as low as +1V
- Specifications defined over full temperature range
- 2μA supply current
- Single output configuration: open-drain active-low reset output
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV803MDBZR-TP#C52817175TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,225 | ₹15.61 · 2,225 in stock | View |
 | TPAPX803-44SAG#C52817193TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 485 | ₹11.46 · 485 in stock | View |
 | TPAPX803S-44SA#C52817198TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 430 | ₹11.46 · 430 in stock | View |
 | TPMCP120T-450I/TT#C52817240TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 835 | ₹26.76 · 835 in stock | View |
 | TPMIC803-44D3VM3#C52817264TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 480 | ₹11.52 · 480 in stock | View |
