TECH PUBLICDatasheet (PDF)

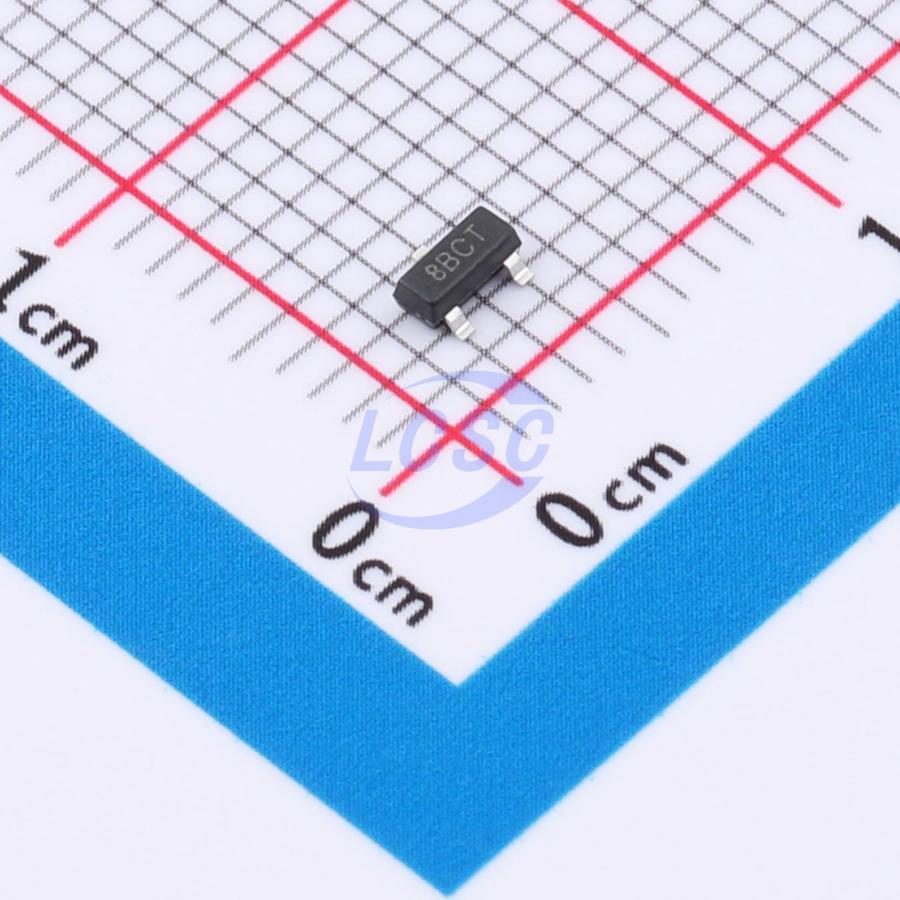

TPSTM1001TWX6F
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSTM1001TWX6F
- Store part #
- C52817307
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C52817307
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.72 | ₹133.60 |
| 50+ | ₹20.88 | ₹1,044.00 |
| 150+ | ₹18.36 | ₹2,754.00 |
| 500+ | ₹15.24 | ₹7,620.00 |
| 3,000+ | ₹13.85 | ₹41,550.00 |
| 6,000+ | ₹13.01 | ₹78,060.00 |
5 × ₹26.72
₹133.60
excl. GST
₹157.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSTM1001TWX6F
₹133.60 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- High accuracy ±2%
- Precise VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid with VCC as low as +1V
- Full temperature range specifications
- 2μA supply current
- Single output configuration: open-drain, active-low reset output
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX803-31SAG#C52817191TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 465 | ₹11.46 · 465 in stock | View |
 | TPAPX803S-31SA#C52817196TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 480 | ₹11.46 · 480 in stock | View |
 | TPMCP120T-315I/TT#C52817239TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,985 | ₹26.76 · 2,985 in stock | View |
 | TPMCP121T-315E/TT#C52817243TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,020 | ₹27.45 · 4,020 in stock | View |
 | TPMIC803-31D3VM3#C52817262TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 365 | ₹11.46 · 365 in stock | View |
