TECH PUBLICDatasheet (PDF)

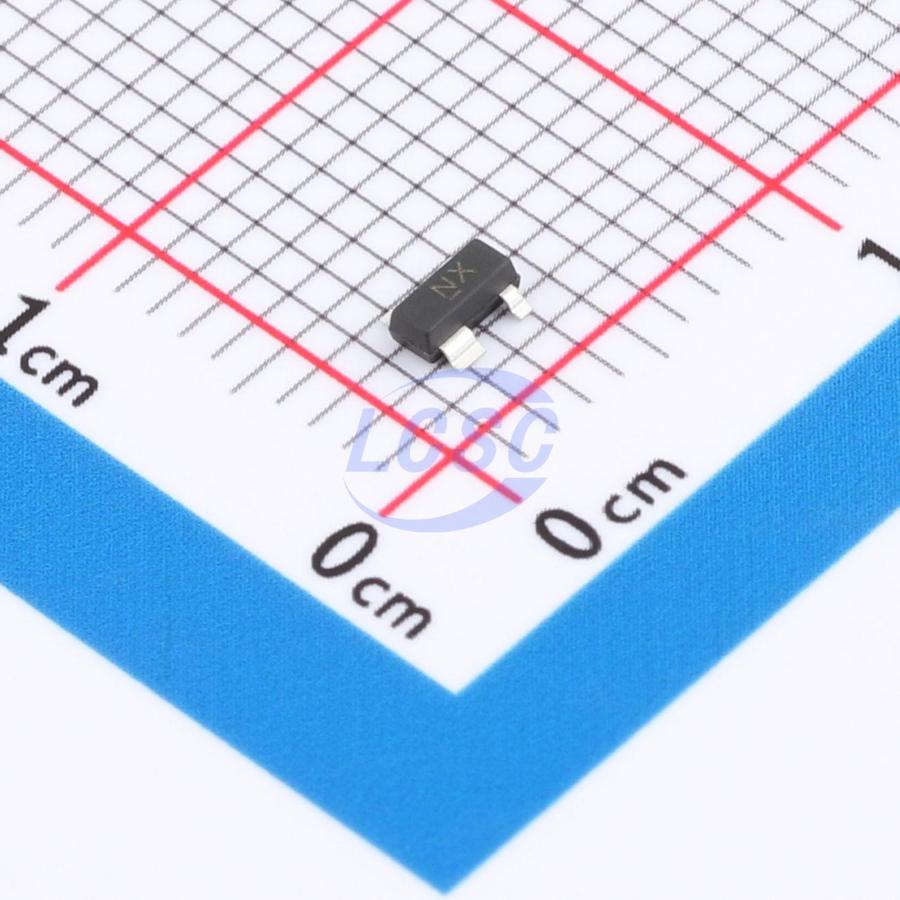

TPSTM6315LDW13F
240ms Active Low 1.2V~5.5V 1 SOT-143 Supervisors
SOT-143RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSTM6315LDW13F
- Store part #
- C52146003
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C52146003
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.98 | ₹164.90 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹22.72 | ₹3,408.00 |
| 500+ | ₹18.87 | ₹9,435.00 |
| 3,000+ | ₹17.16 | ₹51,480.00 |
| 6,000+ | ₹16.13 | ₹96,780.00 |
5 × ₹32.98
₹164.90
excl. GST
₹194.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSTM6315LDW13F
₹164.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1.2V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Battery-powered systems and controllers
- Embedded control systems
- Critical microprocessor and microcontroller power supply monitoring
- Portable/battery-powered devices
- Automotive electronics
Key features
- Manual reset input
- Precision +3V, +3.3V, and +5V VCC monitoring
- Power supply transient immunity
- Reset guaranteed valid with VCC as low as 1V
- Full temperature range specifications
- 6μA supply current
- Single output configuration: active-low reset
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX6315US46D3-TP#C52146004TECH PUBLIC · SOT-143 | TECH PUBLIC | SOT-143 | 2,995 | ₹32.77 · 2,995 in stock | View |
 | TPADM6315-46D3ARTZR7#C52146005TECH PUBLIC · SOT-143 | TECH PUBLIC | SOT-143 | 2,995 | ₹32.77 · 2,995 in stock | View |
 | TPMIC6315-46D3UY#C52146006TECH PUBLIC · SOT-143 | TECH PUBLIC | SOT-143 | 2,985 | ₹32.98 · 2,985 in stock | View |
