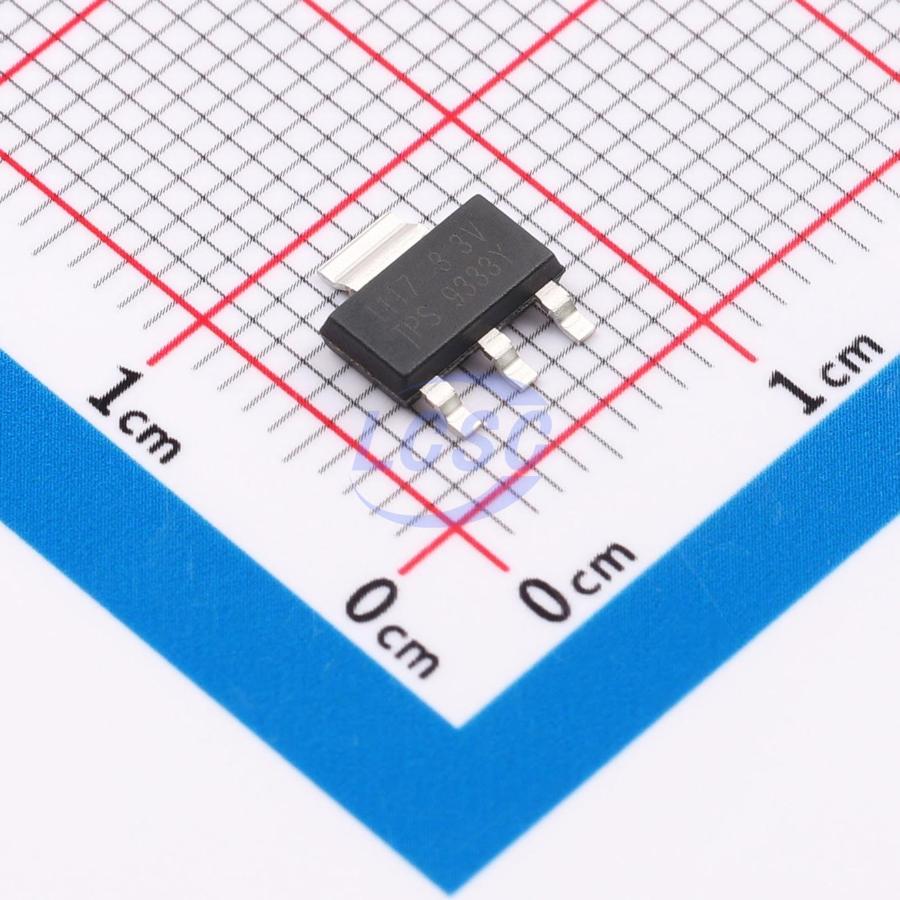

TPTLV1117LV33DCYR
3.3V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223-3RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV1117LV33DCYR
- Store part #
- C52146079
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,590 in stock
#C52146079
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 1,000+ | ₹3.85 | ₹3,850.00 |
| 4,000+ | ₹3.44 | ₹13,760.00 |
| 8,000+ | ₹3.23 | ₹25,840.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPTLV1117LV33DCYR
₹64.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -50℃~+140℃
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.191 g
Overview
Applications
- High-efficiency linear regulator
- Post-regulator for switching DC/DC converters
- Motherboard and graphics card power management
- 2.85V version for SCSI-2 active termination
- Battery charger
Key features
- Maximum output current 1A
- Three-terminal adjustable or fixed output
- Maximum input voltage: 18V
- Fast transient response
- Current limiting, safe operating area, and thermal shutdown protection
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature: -50℃ ~ +140℃
- Available in SOT223-3 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSPX1117M3-L-3-3#C52146083TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 4,440 | ₹6.43 · 4,440 in stock | View |
 | LM1117S-3.3(TP)#C52146076TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 3,460 | ₹6.43 · 3,460 in stock | View |
 | TPTLV1117-33IDCYR#C52146078TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 1,840 | ₹6.42 · 1,840 in stock | View |
