TECH PUBLICDatasheet (PDF)

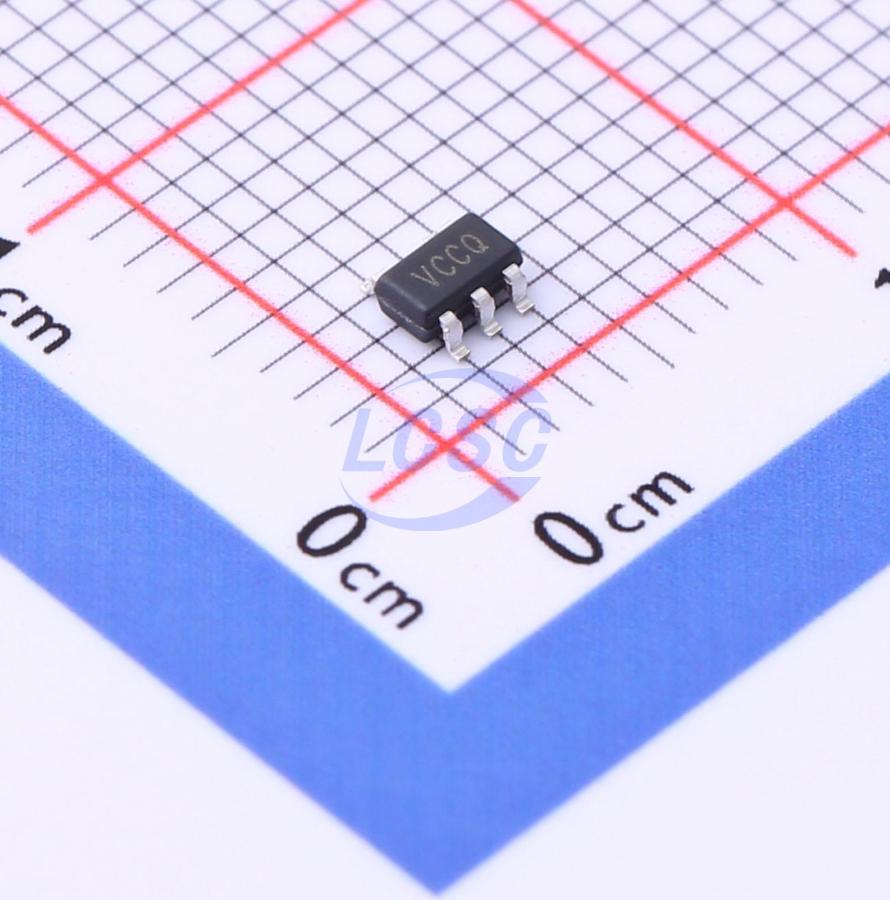

TPTLV73318PDBVR
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
15uA IQ, 300mA Low-Dropout Linear Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV73318PDBVR
- Store part #
- C2937044
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,420 in stock
#C2937044
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.06 | ₹95.30 |
| 50+ | ₹16.80 | ₹840.00 |
| 150+ | ₹15.82 | ₹2,373.00 |
| 500+ | ₹14.61 | ₹7,305.00 |
| 3,000+ | ₹12.91 | ₹38,730.00 |
| 6,000+ | ₹12.59 | ₹75,540.00 |
5 × ₹19.06
₹95.30
excl. GST
₹112.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV73318PDBVR
₹95.30 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 15uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This production is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 15μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, overtemperature protection and output discharge function.
Applications
- CDM/GSM mobile phone
- PDAs/MP3
- Audio Video equipment
Key features
- Input Voltage Range: 1.2V to 5.5V
- 15μA Ground Current at no Load
- PSRR = 75dB at 1kHz
- ±1.5% Output Accuracy
- Low (0.1μA) Shutdown Current
- Dropout Voltage: 0.15V at 300mA when Vour ≥ 3V
- Support Fixed Output Voltage 0.8V, 1V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
- Current Limit Protection
- Over Temperature Protection
- Output Active Discharge Function
- SOT23 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP5907MFX-1.8#C23380872TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,410 | ₹19.37 · 1,410 in stock | View |
 | TPS79918DDCR-TP#C5370992TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,790 | ₹10.98 · 3,790 in stock | View |
 | TPTLV70018DDCR#C2937038TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 755 | ₹15.80 · 755 in stock | View |
 | TPTLV70218DBVR#C2937040TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,245 | ₹17.12 · 2,245 in stock | View |
 | TPMIC5504-1.8YM5#C3040643TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,930 | ₹26.72 · 1,930 in stock | View |
