TECH PUBLICDatasheet (PDF)

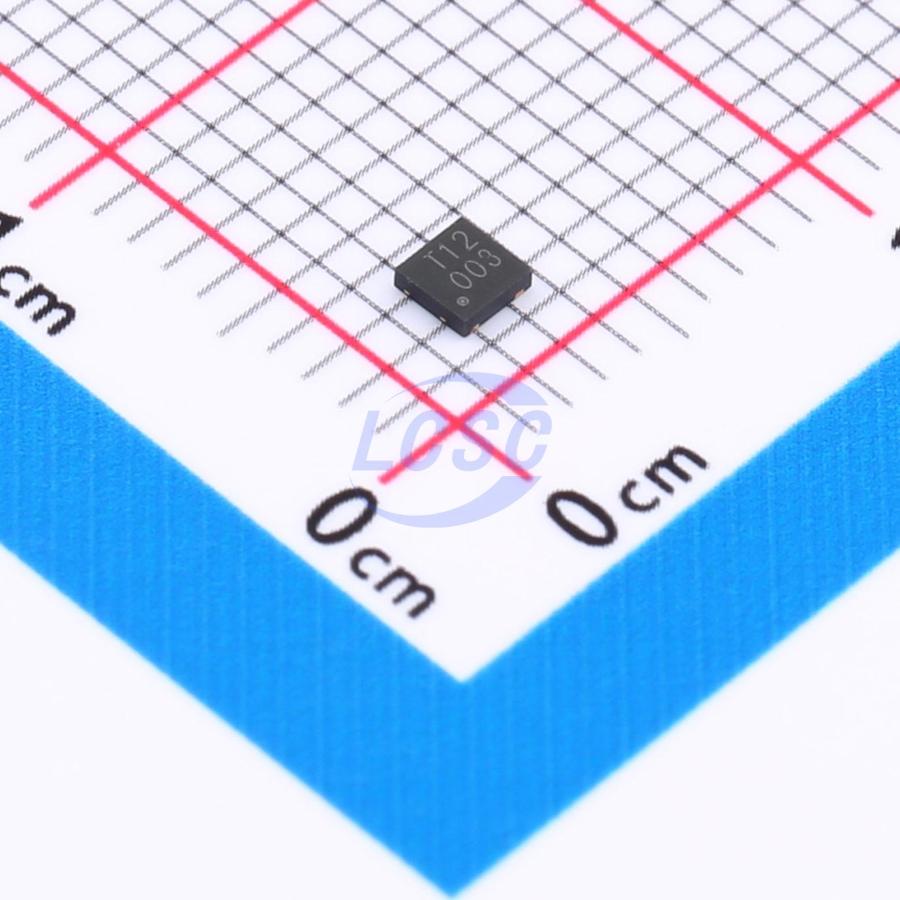

TPTVSHC3N12VU
30VC Clamp 200A@8/20us Ipp ESD DIODE DFN2x2-3
DFN2x2-3RoHSActive
ESD DIODE 12VWM 30VC DFN2x2-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVSHC3N12VU
- Store part #
- C7472900
- Package / case
- DFN2x2-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,765 in stock
#C7472900
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.22 | ₹61.10 |
| 50+ | ₹9.62 | ₹481.00 |
| 150+ | ₹8.31 | ₹1,246.50 |
| 500+ | ₹7.33 | ₹3,665.00 |
| 3,000+ | ₹6.55 | ₹19,650.00 |
| 6,000+ | ₹6.15 | ₹36,900.00 |
5 × ₹12.22
₹61.10
excl. GST
₹72.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVSHC3N12VU
₹61.10 for 5 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 200A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 6kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTVS1293D3#C5311020TECH PUBLIC · DFN2x2-3 | TECH PUBLIC | DFN2x2-3 | 3,520 | ₹14.31 · 3,520 in stock | View |
 | ESD5641D12#C7472901TECH PUBLIC · DFN2x2-3 | TECH PUBLIC | DFN2x2-3 | 2,830 | ₹11.17 · 2,830 in stock | View |
