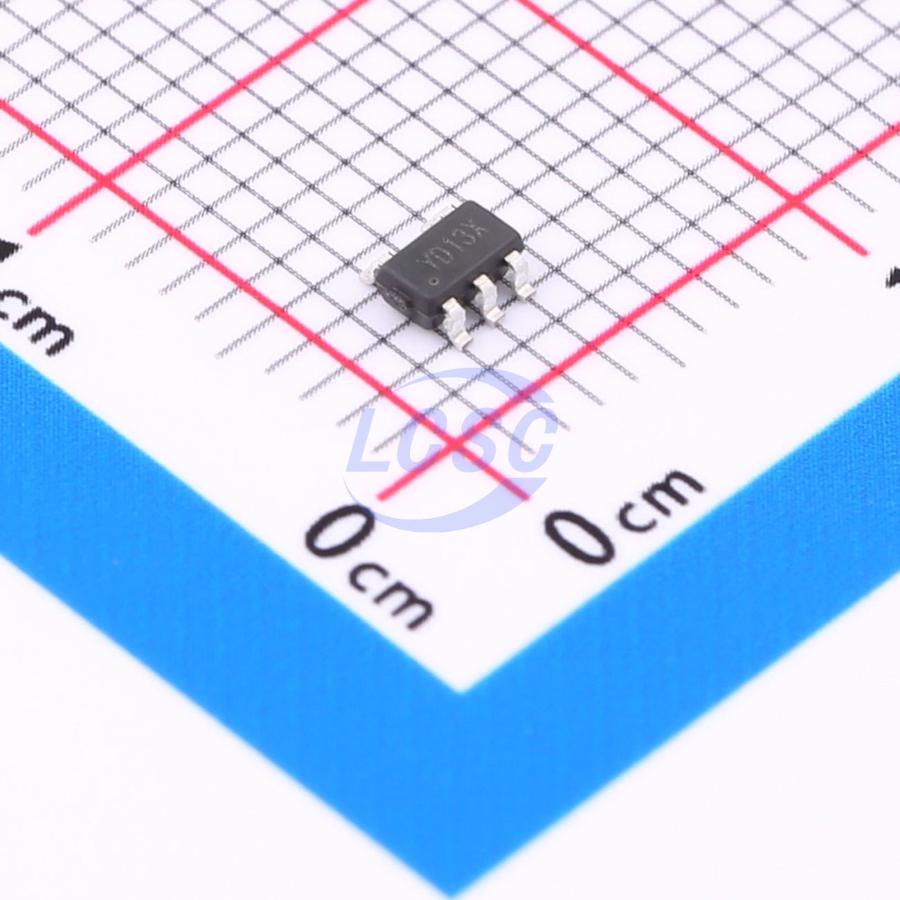

TPU3013S5
1 3A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
Low Loss Power Switch With Flag
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPU3013S5
- Store part #
- C46472316
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,885 in stock
#C46472316
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.48 | ₹112.40 |
| 50+ | ₹19.51 | ₹975.50 |
| 150+ | ₹18.24 | ₹2,736.00 |
| 500+ | ₹16.66 | ₹8,330.00 |
| 3,000+ | ₹15.96 | ₹47,880.00 |
| 6,000+ | ₹15.53 | ₹93,180.00 |
5 × ₹22.48
₹112.40
excl. GST
₹132.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPU3013S5
₹112.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection(OCP);Short-Circuit Protection(SCP);Overtemperature protection (OTP);Undervoltage Protection(UVP)
- number of channels
- 1
- Maximum Continuous Current
- 3A
- Control Input Logic
- Active High
- Operating Voltage
- 2.9V~5.5V
- RDS(on)
- 40mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The is a low voltage, single NMOSFET high-side power switch, optimized for self-powered and bus-powered Universal serial bus (USB) application. equipped with a charge pump circuitry to drive the internal NMOSFET switch, the switch's low Rds(on) 40mΩ, meets USB voltage droop requirement and a flag output is available to indicate fault conditions to the local USB controller. Additional features include soft-start to limit the inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, under voltage lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present. The low quiescent current as 35uA makes this device ideal for portable battery operated equipment.
Applications
- USB Ports
- Notebook and Desktop Computers
- High-Side Power Protection Switchs
- Consumer Electronics
- Telecom Systems
- Digital TV
- USB Device Power Switch
- Motherboard USB Power Switch
Key features
- Wide Supply Voltage Range: 2.9V to 5.5V
- Compliant to USB Specifications
- Current-Limit and Short-Circuit Protections
- Enable Active Low/High
- Typical Rdson 40mΩ (typ)
- Typical 2.1V under voltage lockout
- Output can be forced higher than input (Off-state)
- Hot Plug-In Application(Soft start)
- Low supply current 35uA at switch on state
- Open Drain Fault Flag Output
- Reverse Current Flow Blocking (no body diode)
- RoHS and Halogen free compliance
- CB IEC60950-1 Certification
- TUV EN60950-1 Certification
- UL Approved-E353665
