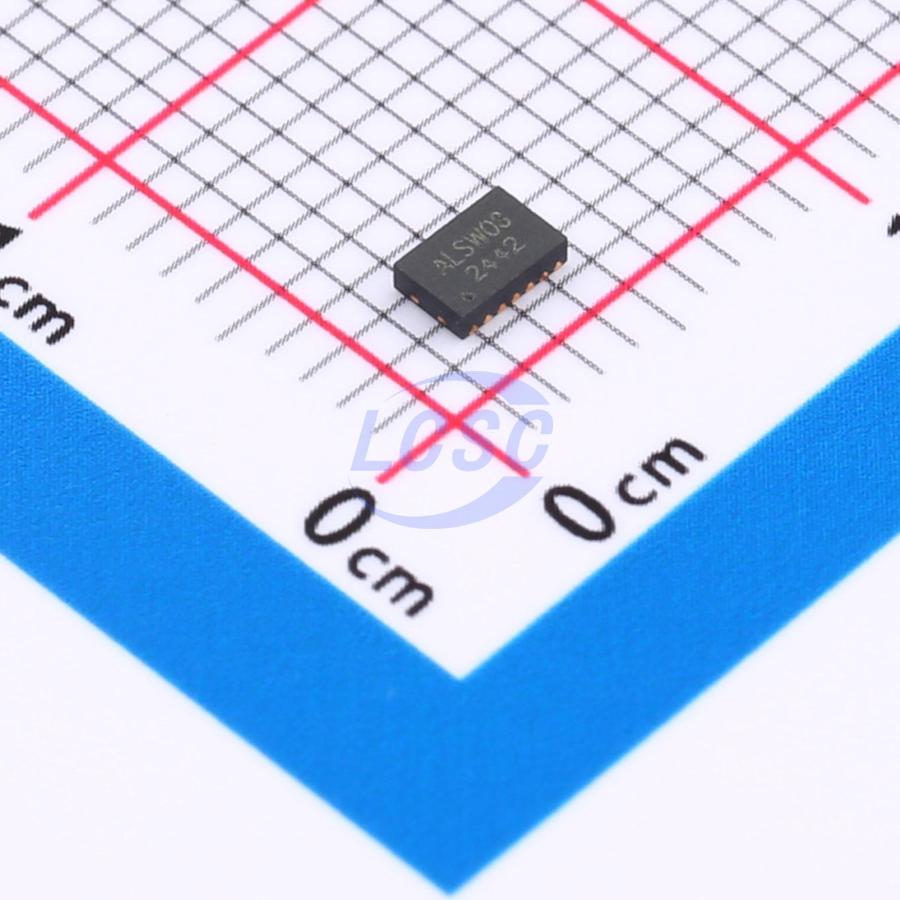

TPU6013DK
2 6A Active High Load Switch DFN-14(2x3) Power Distribution Switches, Load Drivers
DFN-14(2x3)RoHSActive
Dual Channel, Ultra-Low Resistance Load Switch
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPU6013DK
- Store part #
- C42407116
- Package / case
- DFN-14(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,470 in stock
#C42407116
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.89 | ₹56.89 |
| 10+ | ₹50.46 | ₹504.60 |
| 30+ | ₹47.23 | ₹1,416.90 |
| 100+ | ₹44.02 | ₹4,402.00 |
| 500+ | ₹42.08 | ₹21,040.00 |
| 1,000+ | ₹41.22 | ₹41,220.00 |
1 × ₹56.89
₹56.89
excl. GST
₹67.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPU6013DK
₹56.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Over temperature protection;Output discharge function;Soft-start;Integrated charge pump
- number of channels
- 2
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- RDS(on)
- 20mΩ
- Operating Voltage
- 800mV~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The is a small, ultra-low RON, dual channel load switch with controlled turn on. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.8 V to 5.5 V and can support a maximum continuous current of 6A per channel. Each switch is independently controlled by an on/off input (ON1 and ON2), which is capable of interfacing directly with low-voltage control signals. a 220-Ω on-chip load resistor is added for quick output discharge when switch is turned off. The is available in a small,space-saving DFN3X2 package with integrated thermal pad allowing for high power dissipation.
Applications
- USB Ports
- Notebook and Desktop Computers
- High-Side Power Protection Switchs
- Consumer Electronics
- Telecom Systems
- Digital TV
- USB Device Power Switch
- Set-top boxes/Residental gateway
Key features
- Input voltage range : 0.8V to 5.5V
- Integrated dual channel load switch
- 6A maximum continuous switch current per channel
- Ultra low RON resistance 20 mΩ per channel
- Adjustable output rising time
- Low quiescent current 75 μA (dual channel)
- Quick Output Discharge (QOD)
- Bias voltage supports : 2.5V and 5.5V
- Over Temperature Protection
- DFN3X2-14-pin package with Thermal Pad
