TECH PUBLICDatasheet (PDF)

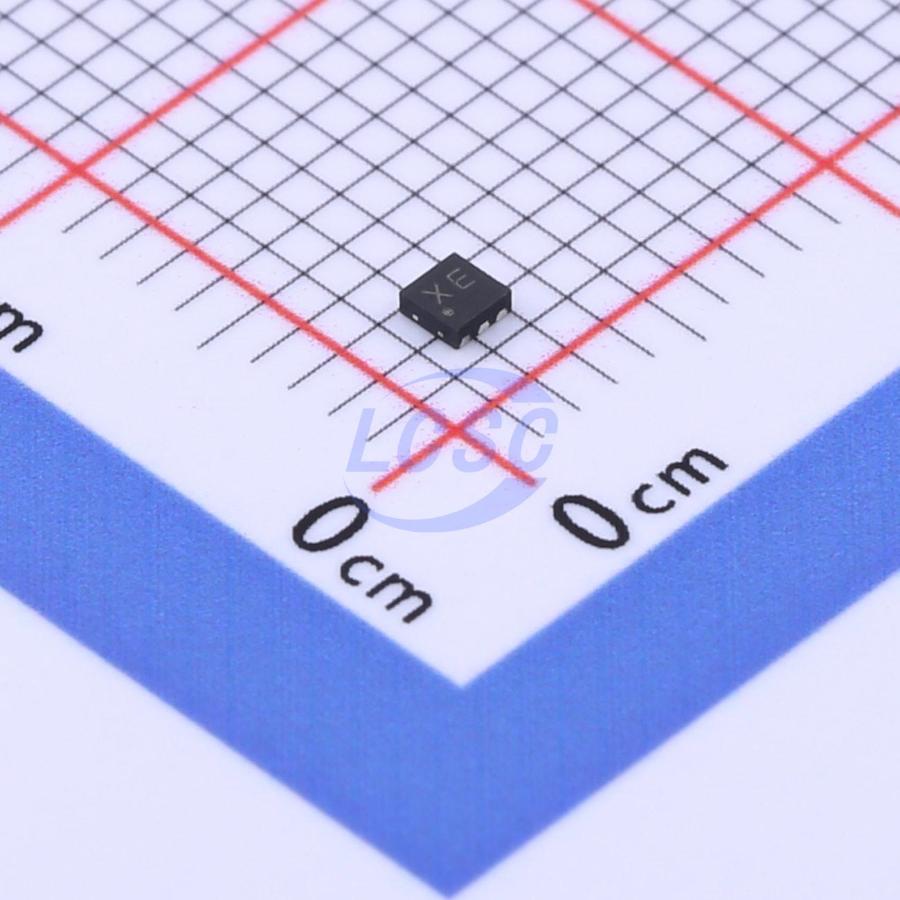

TPUSBM5V5X4-TL
16VC Clamp ESD DIODE DFN1616-6
DFN1616-6RoHSActive
ESD DIODE 5.5VWM 16VC DFN1616-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPUSBM5V5X4-TL
- Store part #
- C2987153
- Package / case
- DFN1616-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,215 in stock
#C2987153
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.17 | ₹130.85 |
| 50+ | ₹20.53 | ₹1,026.50 |
| 150+ | ₹18.13 | ₹2,719.50 |
| 500+ | ₹15.11 | ₹7,555.00 |
| 3,000+ | ₹13.34 | ₹40,020.00 |
| 6,000+ | ₹12.53 | ₹75,180.00 |
5 × ₹26.17
₹130.85
excl. GST
₹154.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPUSBM5V5X4-TL
₹130.85 for 5 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4.5A@8/20us;10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us;150W@8/20us
- Number of Channels
- Three channels
- Voltage - Breakdown
- 6.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- USB2.0 and USB OTG
- Multi Media Card (MMC) Interfaces
- SD Card Interfaces
- MDDI Ports
- SIM Ports
- Key Pads
Key features
- Ultra low capacitance: 0.35pF(IO to 10)
- Ultralow leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Protects one power line and four data lines
- Flow-through package
- Complies with following standards:
- IEC 61000-4-2(ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-4(EFT) 40A(5/50ns)
- IEC61000-4-5 (Lightning) 4.5A (8/20μs)
- RoHS Compliant
