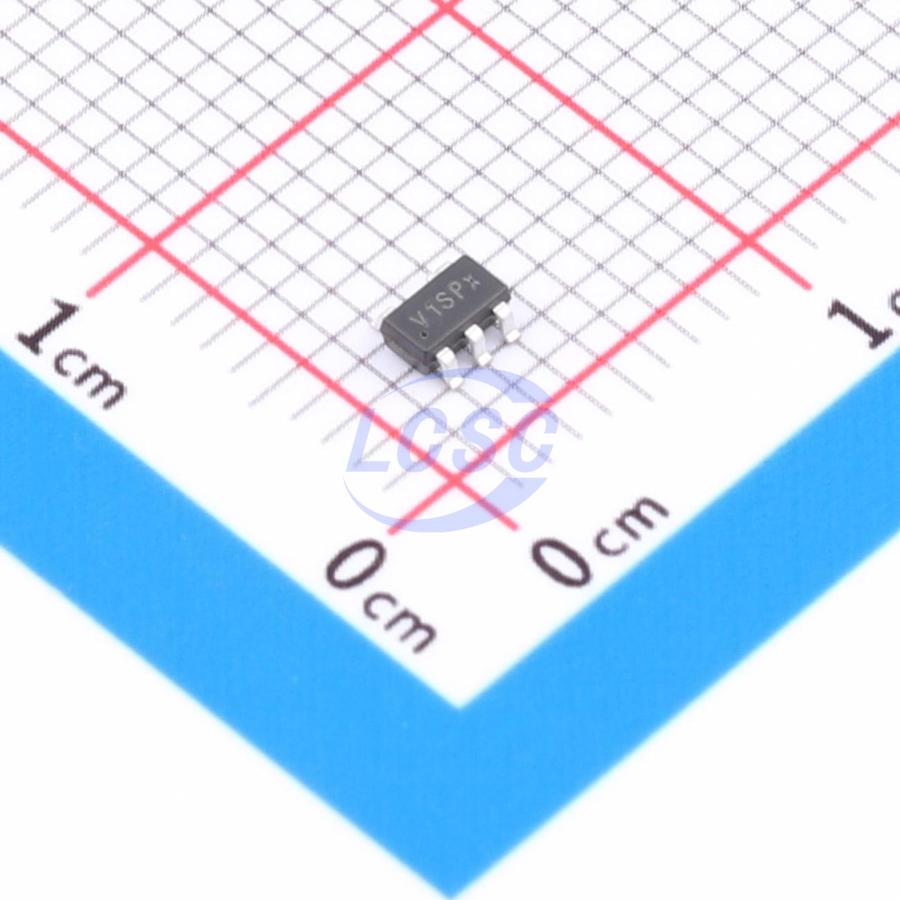

TPV6823S-TR
200ms Active Low 1V~5.5V 1 SOT-23-5 Supervisors RoHS
Low-voltage monitoring circuit with watchdog and manual reset
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPV6823S-TR
- Store part #
- C5181340
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,470 in stock
#C5181340
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.64 | ₹198.20 |
| 50+ | ₹30.42 | ₹1,521.00 |
| 150+ | ₹26.61 | ₹3,991.50 |
| 500+ | ₹21.73 | ₹10,865.00 |
| 2,500+ | ₹19.56 | ₹48,900.00 |
| 5,000+ | ₹18.11 | ₹90,550.00 |
5 × ₹39.64
₹198.20
excl. GST
₹233.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV6823S-TR
₹198.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Push-pull
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 2.2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The TPV6823 is a supervisory circuit that monitors power supply voltage levels and provides a power-on reset signal. It also has an on-chip watchdog timer, which can give out a reset signal if the microprocessor fails to strobe the watchdog timer within a preset timeout period. A reset signal can also be asserted by an external manual reset input. The reset and watchdog timeout periods are fixed at 200 ms (typical) and 1.6 sec (typical) respectively. The TPV6823 is available in the SOT23-5 package and typically consumes only 2.2 μA, suitable for low-power and portable applications.
Applications
- Microprocessor Systems
- Computers
- Controllers
- Intelligent Instruments Portable Equipment
Key features
- Precision Low Voltage Monitoring
- 200-ms (typical) Reset Timeout
- Watchdog Timer with 1.6-sec Timeout
- Manual Reset Input
- Reset Output Stage
- Push-Pull Active-Low
- Low-Power Consumption: 2.2 μA
- Guaranteed Reset Output valid to VCC = 1 V
- Power Supply Glitch Immunity
- Specified from -40°C to +125°C
- SOT23-5 Package
