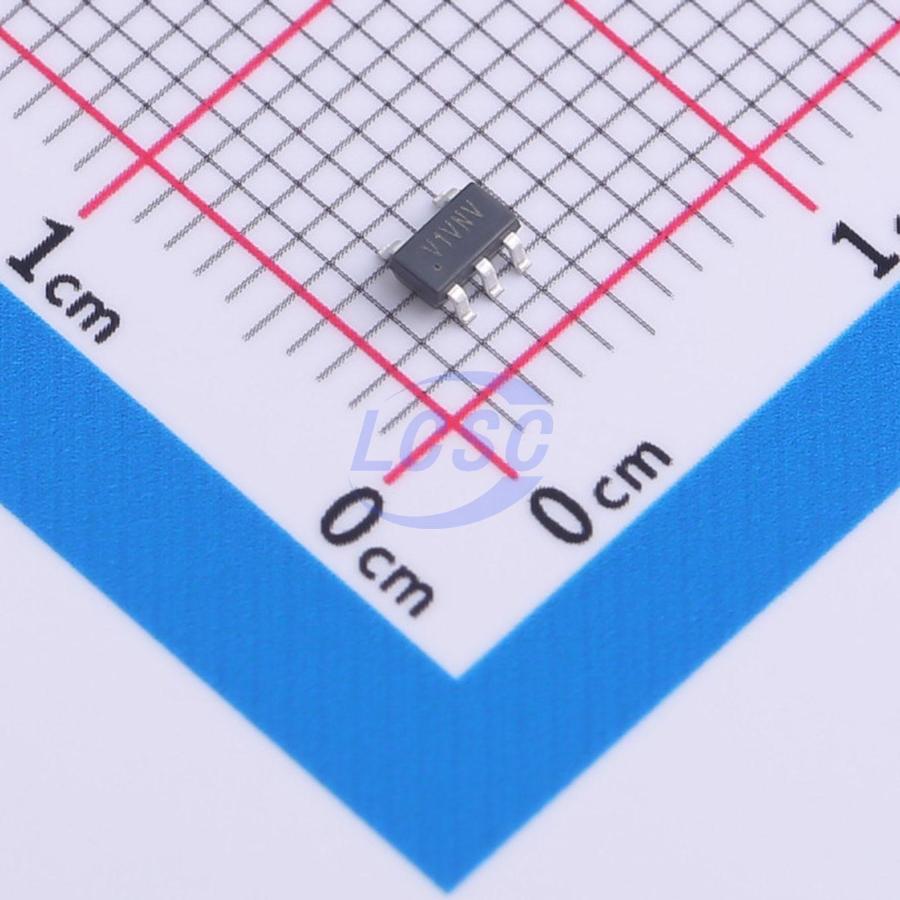

TPV6823V-TR
200ms Active Low 1V~5.5V 1 SOT-23-5 Supervisors RoHS
Low-Voltage Supervisory Circuit with Watchdog and Manual Reset
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPV6823V-TR
- Store part #
- C20416704
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,515 in stock
#C20416704
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.63 | ₹238.15 |
| 50+ | ₹36.54 | ₹1,827.00 |
| 150+ | ₹31.98 | ₹4,797.00 |
| 500+ | ₹26.10 | ₹13,050.00 |
| 3,000+ | ₹23.50 | ₹70,500.00 |
| 6,000+ | ₹21.75 | ₹1,30,500.00 |
5 × ₹47.63
₹238.15
excl. GST
₹281.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV6823V-TR
₹238.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Push-pull
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 6uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 1.58V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
A supervisory circuit that monitors power supply voltage levels and provides a power-on reset signal. It also has an on-chip watchdog timer, which can give out a reset signal if the microprocessor fails to strobe the watchdog timer within a preset timeout period. A reset signal can also be asserted by an external manual reset input. The reset and watchdog timeout periods are fixed at 200 ms (typical) and 1.6 sec (typical) respectively. Available in a SOT23-5 package and typically consumes only 2.2 μA, suitable for use in low-power and portable applications.
Applications
- Microprocessor Systems
- Computers
- Controllers
- Intelligent Instruments
- Portable Equipment
Key features
- Precision Low Voltage Monitoring
- 200-ms (typical) Reset Timeout
- Watchdog Timer with 1.6-sec Timeout
- Manual Reset Input
- Reset Output Stage
- Push-Pull Active-Low
- Low-Power Consumption: 2.2 μA
- Guaranteed Reset Output valid to VCC = 1 V
- Power Supply Glitch Immunity
- Specified from -40°C to +125°C
- SOT23-5 Package
