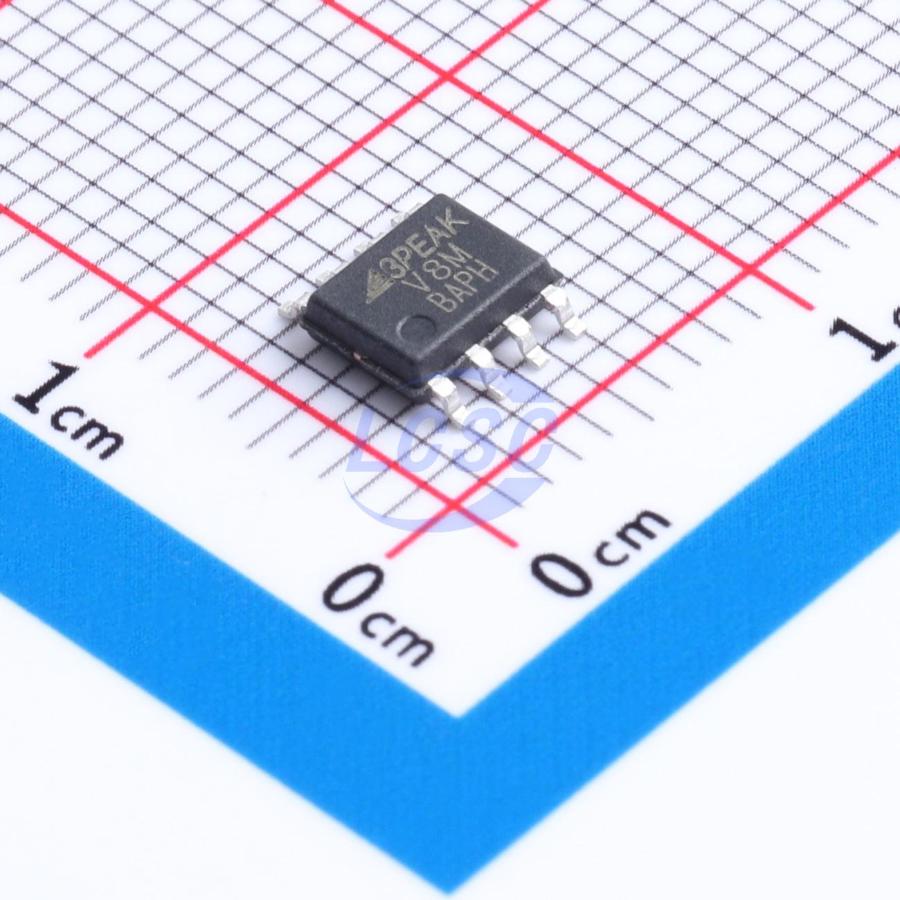

TPV708M-SO1R
Manual reset input 1V~5.5V 1 SOP-8 Supervisors RoHS
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPV708M-SO1R
- Store part #
- C38625289
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,055 in stock
#C38625289
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹92.49 | ₹462.45 |
| 50+ | ₹71.11 | ₹3,555.50 |
| 150+ | ₹62.01 | ₹9,301.50 |
| 500+ | ₹50.58 | ₹25,290.00 |
| 2,500+ | ₹45.51 | ₹1,13,775.00 |
| 4,000+ | ₹42.34 | ₹1,69,360.00 |
5 × ₹92.49
₹462.45
excl. GST
₹545.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPV708M-SO1R
₹462.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low;Active High
- standby current
- 6uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
This series of supervisory circuits monitors power supply voltage levels and provides power-on reset signals. An external manual reset input can trigger a reset signal. Additionally, a power-fail detector with a 1.25V threshold is included for monitoring additional supplies. The reset period is fixed at 200ms (typical). The device is available in an 8-pin SOP package with a typical current consumption of only 4μA, making it suitable for low-power and portable applications.
Applications
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
- Portable devices
Key features
- Precision low-voltage monitoring and power-fail detection
- 200ms (typical) reset timeout
- Manual reset input
- Active-high and active-low reset outputs
- Low power consumption: 4μA
- Reset output remains valid with VCC as low as 1V
- Power supply glitch immunity
- Operating temperature range: -40°C to 125°C
- 8-pin SOP package
