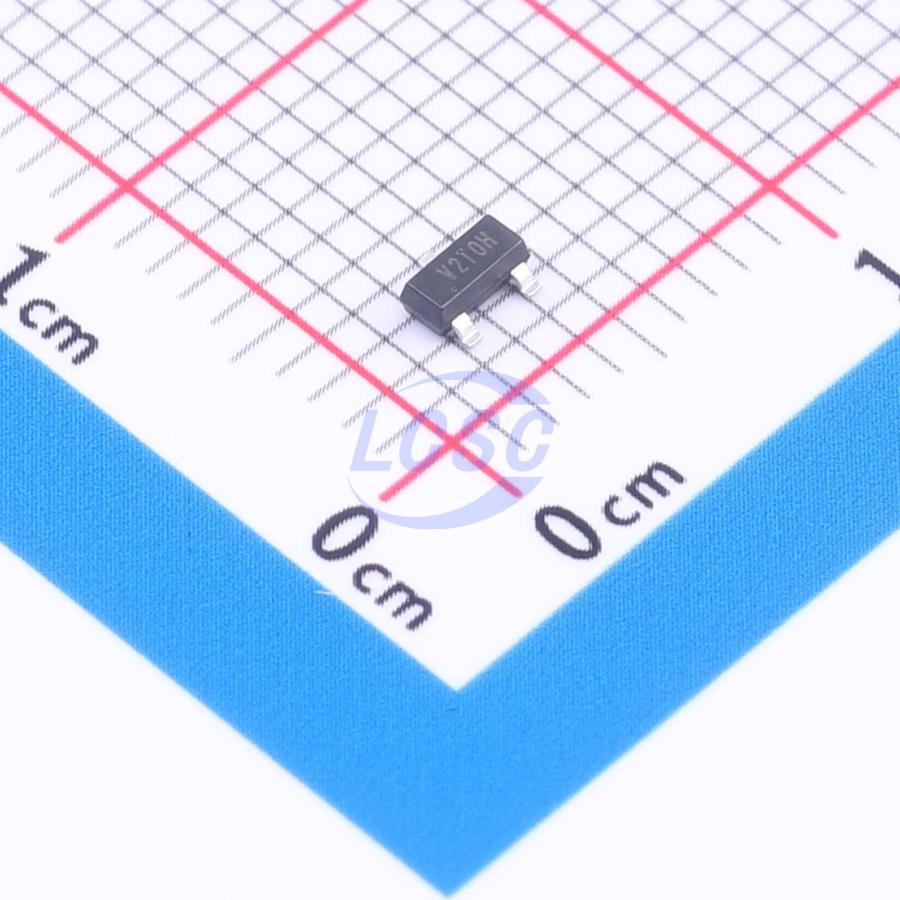

TPV809T-3STR
200ms Active Low 1V~5.5V 1 SOT-23G-3 Supervisors RoHS
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPV809T-3STR
- Store part #
- C37784059
- Package / case
- SOT-23G-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,590 in stock
#C37784059
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.26 | ₹92.60 |
| 100+ | ₹7.16 | ₹716.00 |
| 300+ | ₹6.11 | ₹1,833.00 |
| 3,000+ | ₹5.32 | ₹15,960.00 |
| 6,000+ | ₹4.70 | ₹28,200.00 |
| 9,000+ | ₹4.38 | ₹39,420.00 |
10 × ₹9.26
₹92.60
excl. GST
₹109.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV809T-3STR
₹92.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 2.2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.107 g
Overview
The TPV803/809/810 is a series of supervisory circuit that monitors power supply voltage levels and provides a power-on reset signal. They provide a reset output during power-up, power-down, and brownout conditions. The reset timeout periods are fixed at 200 ms (typical). The TPV803 and TPV809 provide an active low reset signal (RESET), whereas the TPV810 provides an active high signal (RESET) output. The TPV809 and TPV810 have push-pull outputs, whereas the TPV803 has an opendrain output, which requires an external pull-up resistor. The TPV803/809/810 is available in SOT23-3 and SOT23G-3 packages and typically consumes only 2.2 μA, suitable for use in low-power, portable applications.
Applications
- Microprocessor Systems
- Computers
- Controllers
- Intelligent Instruments
- Portable Equipment
Key features
- Precision Low Voltage Monitoring
- 200 ms (Typical) Reset Timeout
- Open-drain Active-low Output (TPV803)
- Push-pull Active-low Output (TPV809)
- Push-pull Active-high Output (TPV810)
- Low Power Consumption: 2.2 μA
- Guaranteed Reset Output valid to VCC = 1ΔV
- Power Supply Glitch Immunity
- Specified from -40°C to +125°C
- SOT23-3 and SOT23G-3 Packages
