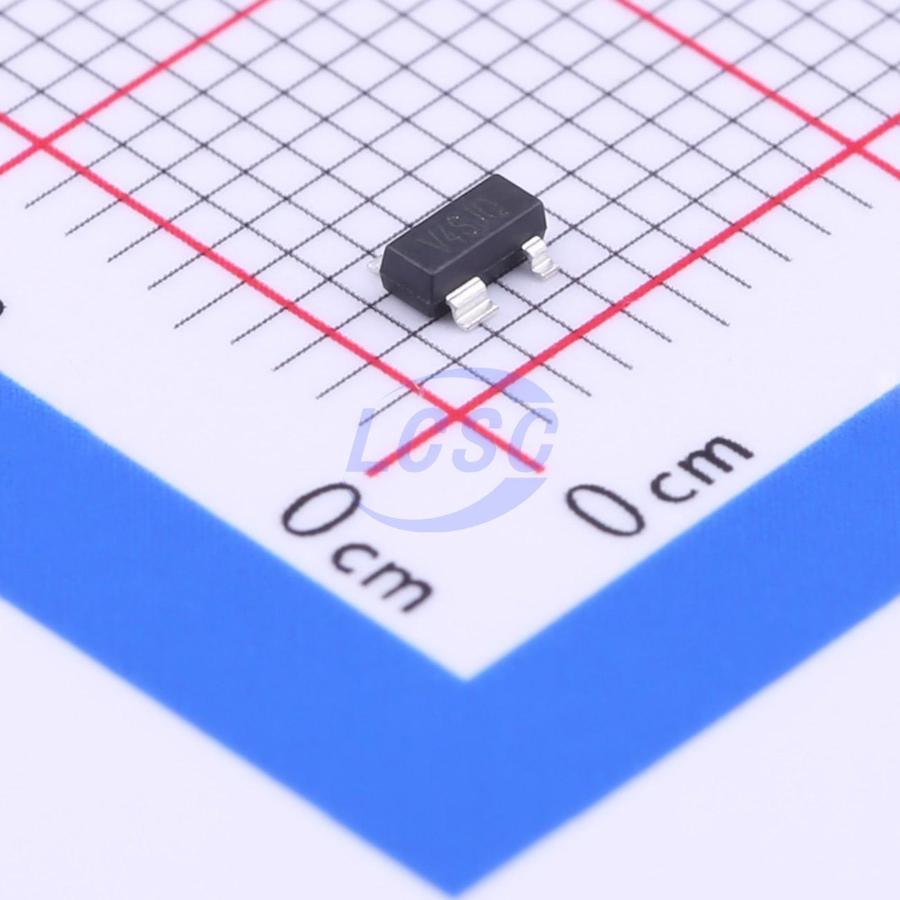

TPV811S-4LTR
200ms Manual reset input Active Low 1V~5.5V 1 SOT-143-4 Supervisors RoHS
Low Voltage Supervisory Circuit with Manual Reset
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPV811S-4LTR
- Store part #
- C400850
- Package / case
- SOT-143-4
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,200 in stock
#C400850
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.67 | ₹76.70 |
| 100+ | ₹5.93 | ₹593.00 |
| 300+ | ₹5.06 | ₹1,518.00 |
| 3,000+ | ₹4.41 | ₹13,230.00 |
| 6,000+ | ₹3.88 | ₹23,280.00 |
| 9,000+ | ₹3.62 | ₹32,580.00 |
10 × ₹7.67
₹76.70
excl. GST
₹90.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV811S-4LTR
₹76.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 2.2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
The TPV811/812 is a supervisory circuit that monitors power supply voltage levels and provides a power-on reset signal. A reset signal can also be asserted by an external manual reset input. The reset periods are fixed at 200 ms (typical). The TPV811/812 is available in a 5-lead SOT-23-5 package and 4-lead SOT-143 package. And typically consumes only 2.2 μA, suitable for use in low power, portable applications.
Applications
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
- Portable equipment
Key features
- Low Voltage Supervisory Circuit with Manual Reset
- Precision low voltage monitoring
- 200 ms (typical) reset timeout
- Manual reset input
- Reset output stage
- Push-pull Active-low output (TPV811)
- Push-pull Active-high output (TPV812)
- Low power consumption: 2.2 μA
- Guaranteed reset output valid to VCC = 1 V
- Power supply glitch immunity
- Specified from -40°C to ±125°C
- 5-lead SOT-23-5 package and 4-lead SOT-143 package
