3PEAKDatasheet (PDF)

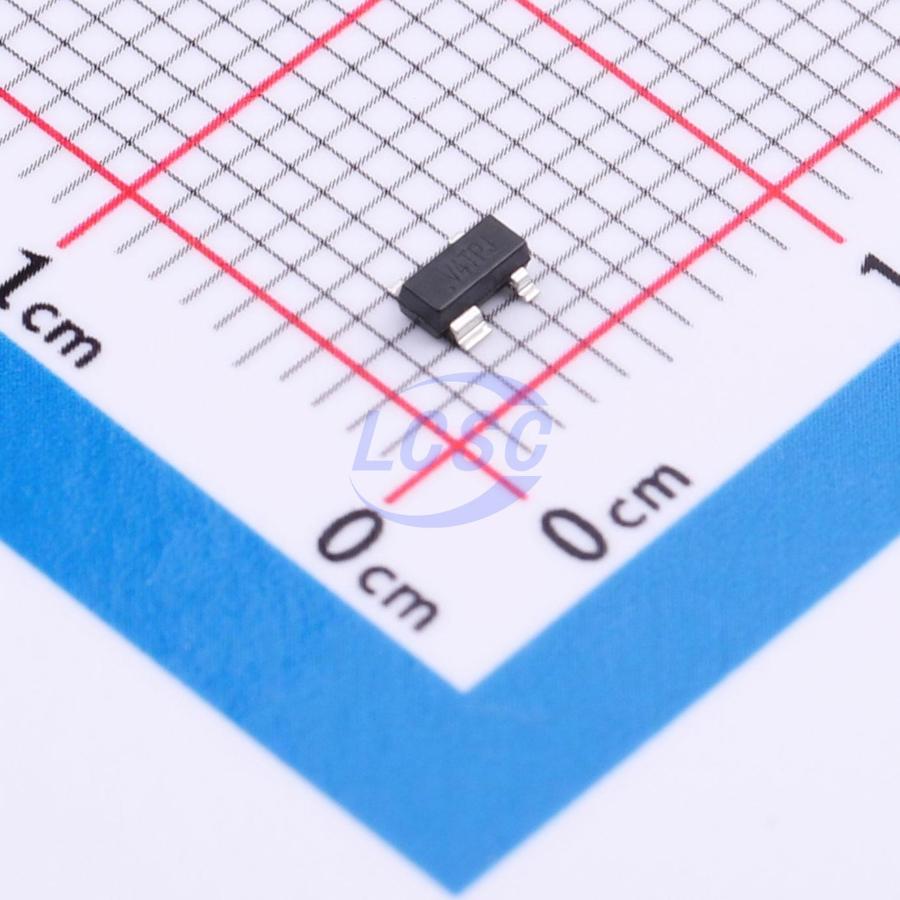

TPV811T-4LTR
200ms Manual reset input Active Low 1V~5.5V SOT-143 Supervisors RoHS
SOT-143ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPV811T-4LTR
- Store part #
- C39199138
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C39199138
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.97 | ₹89.70 |
| 100+ | ₹6.93 | ₹693.00 |
| 300+ | ₹5.91 | ₹1,773.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.55 | ₹27,300.00 |
| 9,000+ | ₹4.23 | ₹38,070.00 |
10 × ₹8.97
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV811T-4LTR
₹89.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 2.2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Overview
TPV811/812 is a supervisory circuit that monitors supply voltage levels and provides a power-on reset signal. The reset signal can also be triggered via an external manual reset input. The reset period is fixed at 200ms (typical). The TPV811/812 is available in a 5-pin SOT-23-5 package and a 4-pin SOT-143 package, with a typical supply current of only 2.2μA, making it suitable for low-power and portable applications.
Applications
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
- Portable devices
Key features
- Precision low-voltage monitoring
- 200ms (typical) reset timeout
- Manual reset input
- Reset output stage
- Push-pull active-low output (TPV811)
- Push-pull active-high output (TPV812)
- Low power consumption: 2.2μA
- Reset output guaranteed valid at Vcc = 1V
- Power supply glitch immunity
- Operating temperature range: −40°C to +125°C
- 5-pin SOT-23-5 and 4-pin SOT-143 packages
