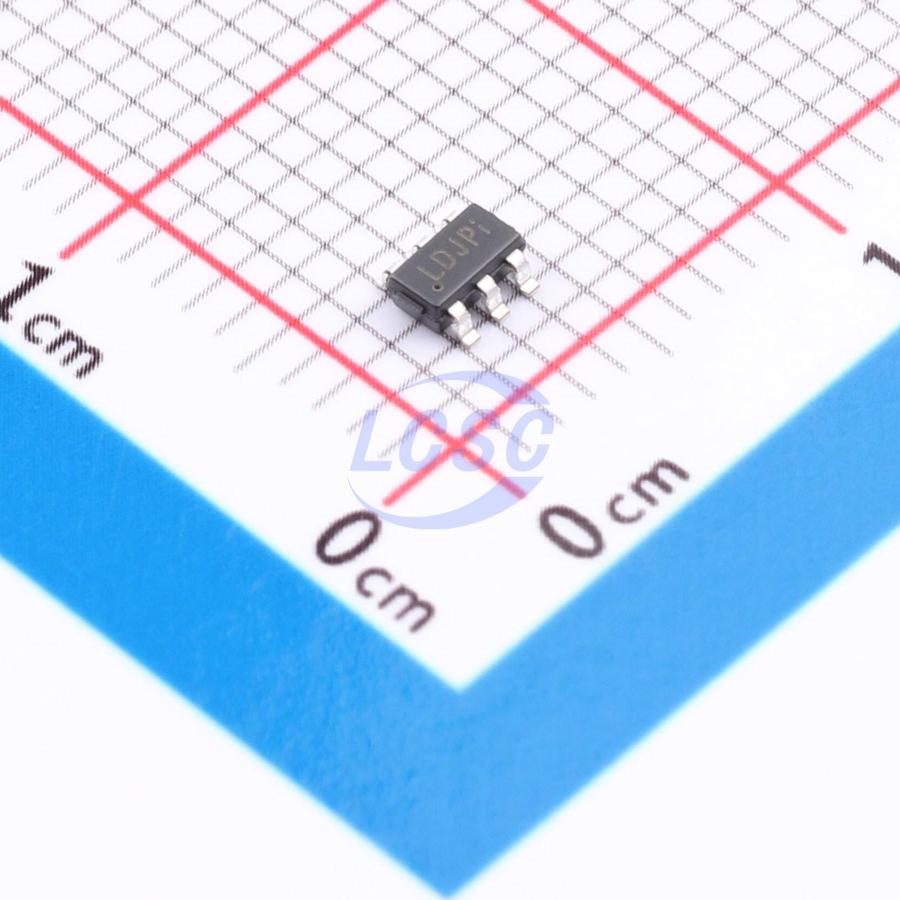

TPV8308LDADJ-S6TR
Active Low 1.6V~6V SOT-23-6 Supervisors RoHS
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPV8308LDADJ-S6TR
- Store part #
- C22430860
- Package / case
- SOT-23-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C22430860
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹69.42 | ₹347.10 |
| 50+ | ₹53.33 | ₹2,666.50 |
| 150+ | ₹46.57 | ₹6,985.50 |
| 500+ | ₹37.89 | ₹18,945.00 |
| 3,000+ | ₹34.08 | ₹1,02,240.00 |
| 6,000+ | ₹31.75 | ₹1,90,500.00 |
5 × ₹69.42
₹347.10
excl. GST
₹409.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV8308LDADJ-S6TR
₹347.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 600nA
- Voltage - Supply
- 1.6V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 405mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
TPV8308 is a family of supervisory circuits that monitor voltage rails from 0.405 V to 5 V. When the sense pin voltage falls below a fixed threshold or the manual reset pin MR is driven logic low, an active-low/active-high open-drain or push-pull RESET/RESET output is asserted. After the sense voltage rises back above the fixed threshold with hysteresis and the manual reset MR returns to logic high, the RESET/RESET output remains low/high for a user-adjustable delay period set by an external capacitor. The TPV8308 offers threshold voltage accuracy of 1%. The delay time can be set from 1.25 ms to 10 s via an external capacitor connected to the CT pin. The TPV8308 family features an ultra-low typical quiescent current of only 600 nA. The TPV8308 is available in SOT23 and DFN2x2 packages with an operating temperature range of -40°C to +125°C.
Applications
- Servers and data centers
- Surveillance and IP cameras
- Network switches and routers
- Solid-state drives
- Optical communication modules
Key features
- Wide supply voltage range: 1.6 V to 6.0 V
- Ultra-low quiescent current: 600 nA typical
- Fixed threshold voltage from 0.6 V to 5 V in 100 mV steps; adjustable version with threshold voltage as low as 0.405 V
- Power-on reset generator with adjustable delay time from 1.25 ms to 10 s
- High threshold accuracy: 1% typical
- Manual reset MR input
- Open-drain output RESET /RESET
- Push-pull output RESET /RESET
- Active-low RESET and active-high RESET
- Temperature range: -40°C to 125°C
- Green product, SOT23-6 and DFN2X2-6 packages
