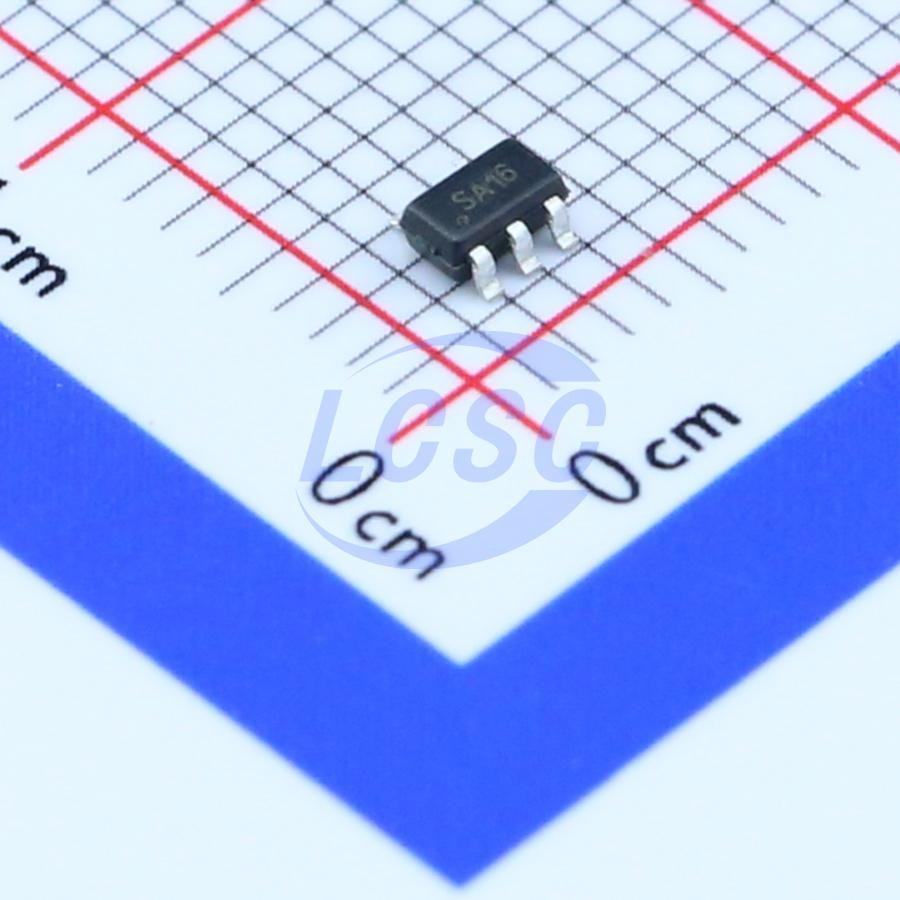

TS01S
1 SOT-23-6 Sensor, Capacitive Touch
1-Channel Differential Sensitivity Calibration Capacitive Touch Sensor
- Manufacturer
- AD Semiconductor
- Manufacturer part #
- TS01S
- Store part #
- C95766
- Package / case
- SOT-23-6
- Category
- Sensor, Capacitive Touch
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,340 in stock
#C95766
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.81 | ₹224.05 |
| 50+ | ₹36.82 | ₹1,841.00 |
| 150+ | ₹33.39 | ₹5,008.50 |
| 500+ | ₹29.12 | ₹14,560.00 |
| 3,000+ | ₹28.59 | ₹85,770.00 |
| 6,000+ | ₹27.45 | ₹1,64,700.00 |
5 × ₹44.81
₹224.05
excl. GST
₹264.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS01S
₹224.05 for 5 + GST
Specifications
- Features
- Capacitive Touch;Automatic sensitivity calibration
- Operating Temperature
- -20℃~+75℃
- ESD Protection Voltage
- 8kV
- Number of Channels
- 1
- Voltage - Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The TS01S is 1-Channel capacitive sensor with differential sensitivity calibration. And the supply voltage range is from 2.5 to 5.5V. The TS01S is designed for low power consumption. The TS01S has the function to select sensitivity by using SYNC pin without any additional external component. The TS01S has an output port(OUT) with open drain NMOS structure.
Applications
- Home appliance(Refrigerator, Air cleaner, Air conditioner, Washing machine, Microwave oven)
- Mobile application (PMP, Navigation, MP3 etc)
- Human interface for toys & interactive games
- Sealed control panels, keypads
- Membrane switch replacement
Key features
- 1-Channel capacitive touch sensor with differential sensitivity calibration
- Low power consumption
- Idle current: Max 40uA @ 3.3V
- Idle current: Max 70uA @ 5.0V
- Uniformly adjustable sensitivity
- Sync function for parallel operation
- Three steps sensitivity available without external component
- Open-drain digital output
- Internal power on reset
- Embedded common and normal noise elimination circuit
- RoHS compliant SOT-26 package
