AD SemiconductorDatasheet (PDF)

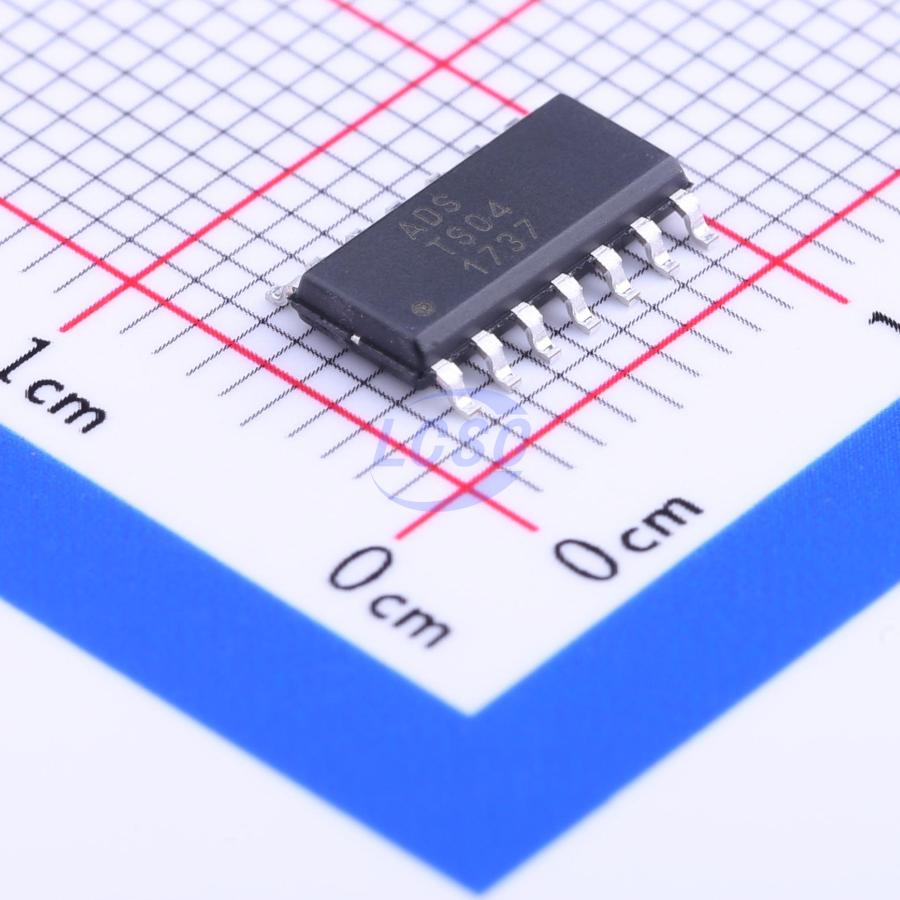

TS04
4 SOP-14 Sensor, Capacitive Touch
SOP-14RoHSActive
4-Channel Self Calibration Capacitive Touch Sensor Free from Common Mode Noise
- Manufacturer
- AD Semiconductor
- Manufacturer part #
- TS04
- Store part #
- C95874
- Package / case
- SOP-14
- Category
- Sensor, Capacitive Touch
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,065 in stock
#C95874
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.09 | ₹94.09 |
| 10+ | ₹76.71 | ₹767.10 |
| 30+ | ₹68.02 | ₹2,040.60 |
| 100+ | ₹59.32 | ₹5,932.00 |
| 500+ | ₹52.38 | ₹26,190.00 |
| 1,000+ | ₹49.77 | ₹49,770.00 |
1 × ₹94.09
₹94.09
excl. GST
₹111.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS04
₹94.09 for 1 + GST
Specifications
- ESD Protection Voltage
- 5kV
- Features
- Capacitive Touch;Automatic sensitivity calibration
- Operating Temperature
- -20℃~+75℃
- Number of Channels
- 4
- Voltage - Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The TS04 is 4- Channel capacitive sensor with auto sensitivity calibration. And the supply voltage range is from 2.5 to 5.5V. The result of touch sensing can be checked by parallel output port, OUT1 ~ OUT4.
Applications
- Mobile application (mobile phone / PDA / PMP / MP3 etc)
- Membrane switch replacement Sealed control panels, keypads
Key features
- 4- Channel capacitive sensor with auto sensitivity calibration
- Parallel output interface
- Independently adjustable sensitivity with external capacitor
- Adjustable internal frequency with external resistor
- Embedded high frequency noise elimination circuit
- Typical current consumption 40uA (@3.3V VDD)
- Typical current consumption 80uA (@5.0V VDD)
- RoHS compliant 16QFN, 14SOP package
