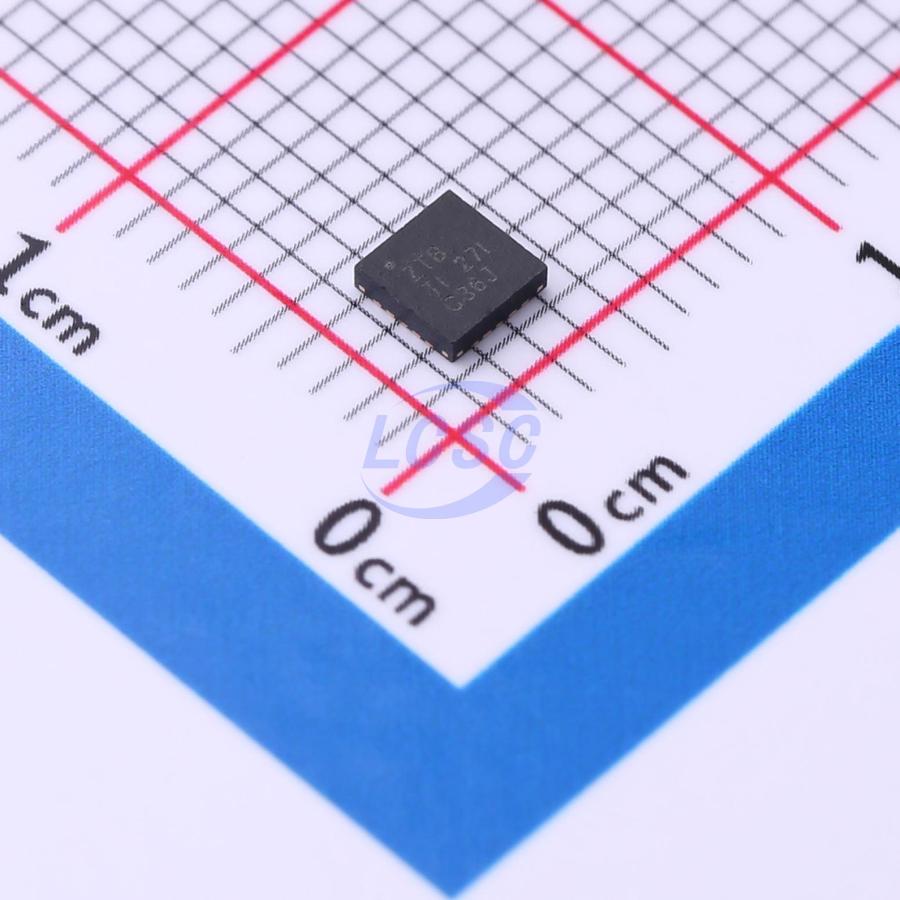

TS3DS10224RUKR

The TS3DS10224 is a bidirectional differential crosspoint, 1:4 or 1:2 multiplexer and demultiplexer, or fan-out switch for high-speed differential signal applications up to 720Mbps. The TS3DS10224 logic table allows routing of any input to any output, enabling a variety of switching or multiplexing configurations. Common configurations include: differential crosspoint switch, differential 1:4 multiplexer, or differential dual-channel 1:2 multiplexer and demultiplexer. The TS3DS10224 provides 1.2GHz high bandwidth with a channel RON of 13Ω (typical). The TS3DS10224 can also be used to synchronously fan out differential signal pairs to two ports (fan-out configuration). In this configuration, bandwidth performance is reduced. The TS3DS10224 requires a supply voltage of 3V to 3.6V. The device features ESD protection on its I/O pins of up to ±8kV contact discharge and 2kV Human Body Model. When the supply (VCC) is absent, the TS3DS10224 employs high-impedance isolation on I/O pins to provide failsafe protection.

Applications

• Differential crosspoint switch
• Desktop and laptop computers
• DisplayPort auxiliary channel multiplexing
• USB 2.0 multiplexing
• Netbooks, e-readers, and tablet PCs

Key features

• Configurable as: differential crosspoint switch, differential single-channel 1:4 multiplexer and demultiplexer, differential dual-channel 1:2 multiplexer and demultiplexer, synchronous differential fanout from a signal pair to two ports
• Bidirectional operation
• Failsafe protection: IOFF protection prevents leakage current in power-off state (VCC = 0V)
• High bandwidth (typical 1.2GHz)
• Low RON and CON: typical 13Ω RON, typical 9pF CON
• ESD performance (I/O pins): ±8kV contact discharge (IEC 61000-4-2), 2kV HBM per JESD22-A114E (to GND)
• ESD performance (all pins): 2kV HBM per JESD22 A114E
• Compact WQFN package (3.00 mm × 3.00 mm, 0.4mm pitch)
