TS3DV642A0RUAR

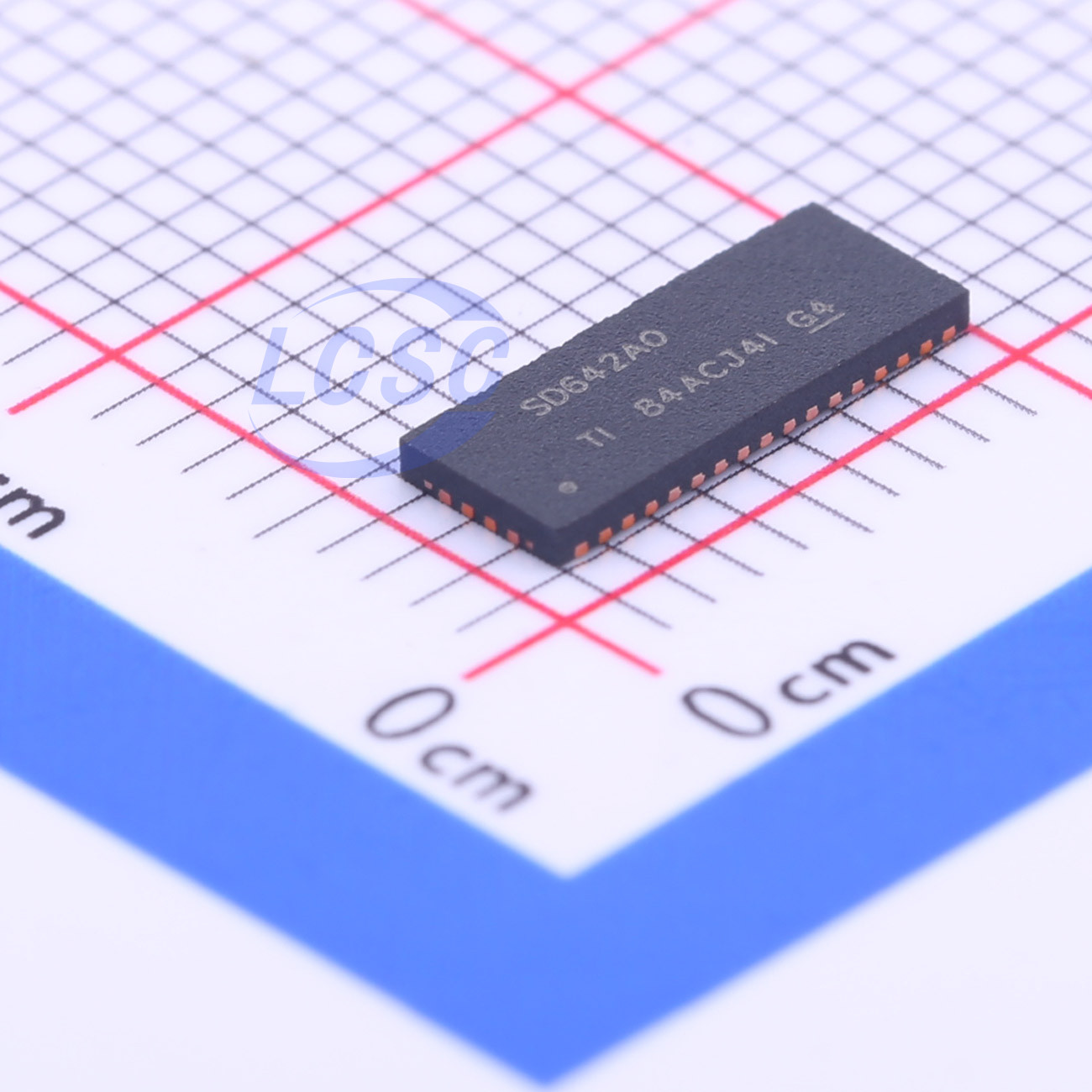

12 Circuit IC SWITCH 2:1 6.5Ω WFQFN-42-EP(3.5x9)

WFQFN-42-EP(3.5x9)ROHS3 CompliantActive

12-Channel 1:2 or 2:1 Multiplexer/Demultiplexer with 1.8V Compatible Control and Power-Down Mode

Manufacturer: TI
Manufacturer part #: TS3DV642A0RUAR
Store part #: C157482
Package / case: WFQFN-42-EP(3.5x9)
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,896 in stock

#C157482

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹185.88	₹185.88
10+	₹161.78	₹1,617.80
30+	₹148.32	₹4,449.60
100+	₹133.33	₹13,333.00
500+	₹119.44	₹59,720.00
1,000+	₹116.40	₹1,16,400.00

Quantity (min 1)

1 × ₹185.88

₹185.88

excl. GST

₹219.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS3DV642A0RUAR

₹185.88 for 1 + GST

Specifications

Number of Channels: 12
Ron: 6.5Ω
Voltage - Supply: 2.6V~4.5V
Operating Temperature: -40℃~+85℃
Propagation Delay: 40ps
Con: 0.5pF
Function: Bidirectional analog channel;Power-off isolation

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.184 g

Overview

The TS3DV642 is a 12-channel 1:2 or 2:1 bidirectional multiplexer/demultiplexer. It can be powered by a supply voltage of 2.6V to 4.5V, making it suitable for battery-powered applications. The device features low on-resistance (RON) and small I/O capacitance, enabling a typical bandwidth of up to 7.5GHz. It provides the high bandwidth required for HDMI and DisplayPort applications. The TS3DV642 features a power-down mode in which all channels are high-impedance (Hi-Z) with ultralow power consumption.

Applications

HDMI 2.0 support up to 60Hz 4K2K
DVI 1.0 signal switch
DisplayPort 1.4 signal switch
Universal TMDS signal switch
Universal LVDS signal switch
Universal high-speed signal switch

Key features

Switch type: 2:1 or 1:2 dynamic characteristics
Differential bandwidth (-3dB) Port A: typical 6.9GHz
Port B: typical 7.5GHz
Crosstalk (at 1.7GHz): –40dB
Isolation (at 1.7GHz): -23dB
Insertion loss (DC)
Port A: –0.75dB
Port B: -1.0dB
Return loss (at 1.7GHz): -15.9dB
Intra-pair (bit-to-bit) skew
Port A: 2ps
Port B: 6ps
RON Port A: 6.5Ω
Port B: 8.2Ω
CON at 1GHz: 0.5pF (typical)
VCC range: 2.6V to 4.5V
I/O voltage range: 0V to 5V
ESD performance: 2kV Human Body Model (A114B, Class II), 1kV Charged Device Model (C101)
42-pin WQFN package (9mm×3.5mm, 0.5mm pitch)
