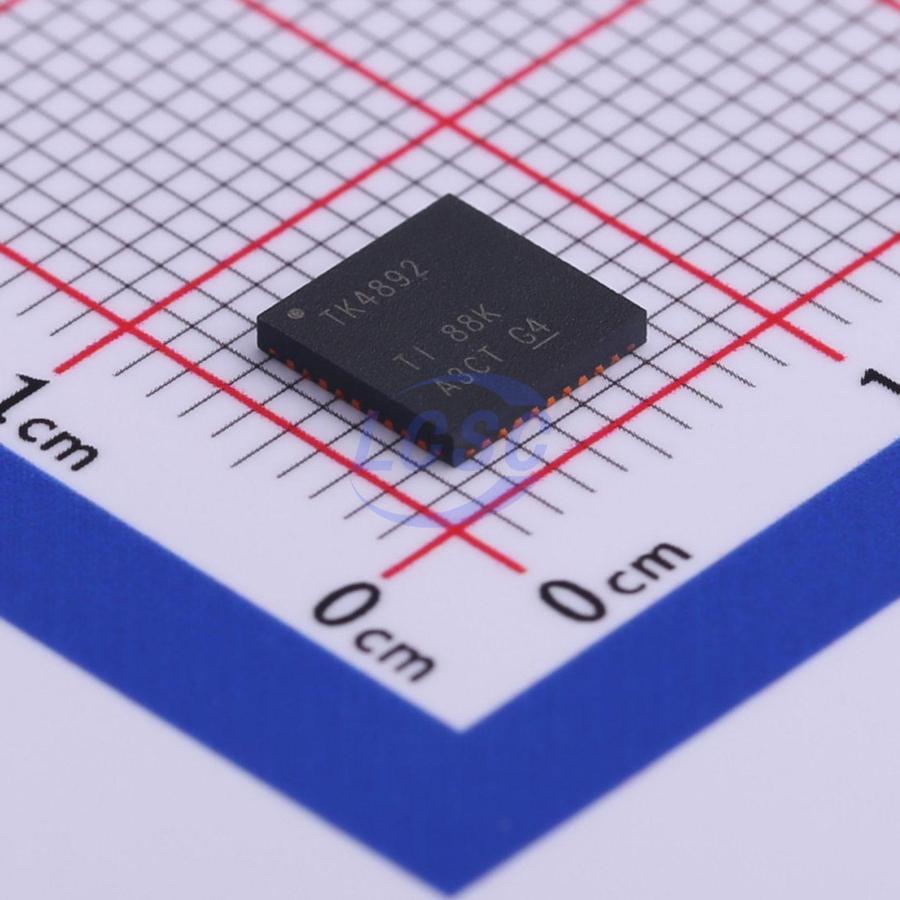

TS3L4892RHHR

3V~3.6V 1.1GHz 16 4Ω VQFN-36-EP(6x6) Analog Switches - Special Purpose RoHS

VQFN-36-EP(6x6)ROHS3 CompliantActive

16-BIT TO 8-BIT SPDT GIGABIT LAN SWITCH WITH LED SWITCH

Manufacturer: TI
Manufacturer part #: TS3L4892RHHR
Store part #: C485163
Package / case: VQFN-36-EP(6x6)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,996 in stock

#C485163

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
1+	₹230.68	₹230.68
10+	₹194.38	₹1,943.80
30+	₹171.54	₹5,146.20
100+	₹148.28	₹14,828.00
500+	₹137.84	₹68,920.00
1,000+	₹133.28	₹1,33,280.00

Quantity (min 1)

1 × ₹230.68

₹230.68

excl. GST

₹272.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TS3L4892RHHR

₹230.68 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Turn-on time: 15ns
Turn-off time: 9ns
Voltage - Supply: 3V~3.6V
-3dB Bandwidth: 1.1GHz
Number of Channels: 16
Ron: 4Ω
Propagation Delay (tpd): 40ps
Operating Temperature: -40℃~+85℃
Con: 8pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.169 g

Overview

The TS3L4892 is a 16-bit to 8-bit multiplexer/demultiplexer LAN switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides additional I/Os for switching status indicating LED signals. The device provides a low and flat ON-state resistance (rON) and an excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T. This device can be used to replace mechanical relays in LAN applications. It also can be used to route signals from a 10/100 Base-T ethernet transceiver to the RJ-45 LAN connectors in laptops or in docking stations.

Applications

10/100/1000 Base-T Signal Switching
Differential (LVDS, LVPECL) Signal Switching
Audio/Video Switching
Hub and Router Signal Switching

Key features

Wide Bandwidth (BW = 1100 MHz Typ)
Low Crosstalk (XTALK = -37 dB Typ)
Low Bit-to-Bit Skew (tsk(0) = 100 ps Max)
Low and Flat ON-State Resistance (rON = 4 Ω Typ, rON(flat) = 0.5 Ω Typ)
Low Input/Output Capacitance (CON = 8 pF Typ)
Rail-to-Rail Switching on Data I/O Ports (0 to 5 V)
Vcc Operating Range From 3 V to 3.6 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22: 2000-V Human-Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
